106033

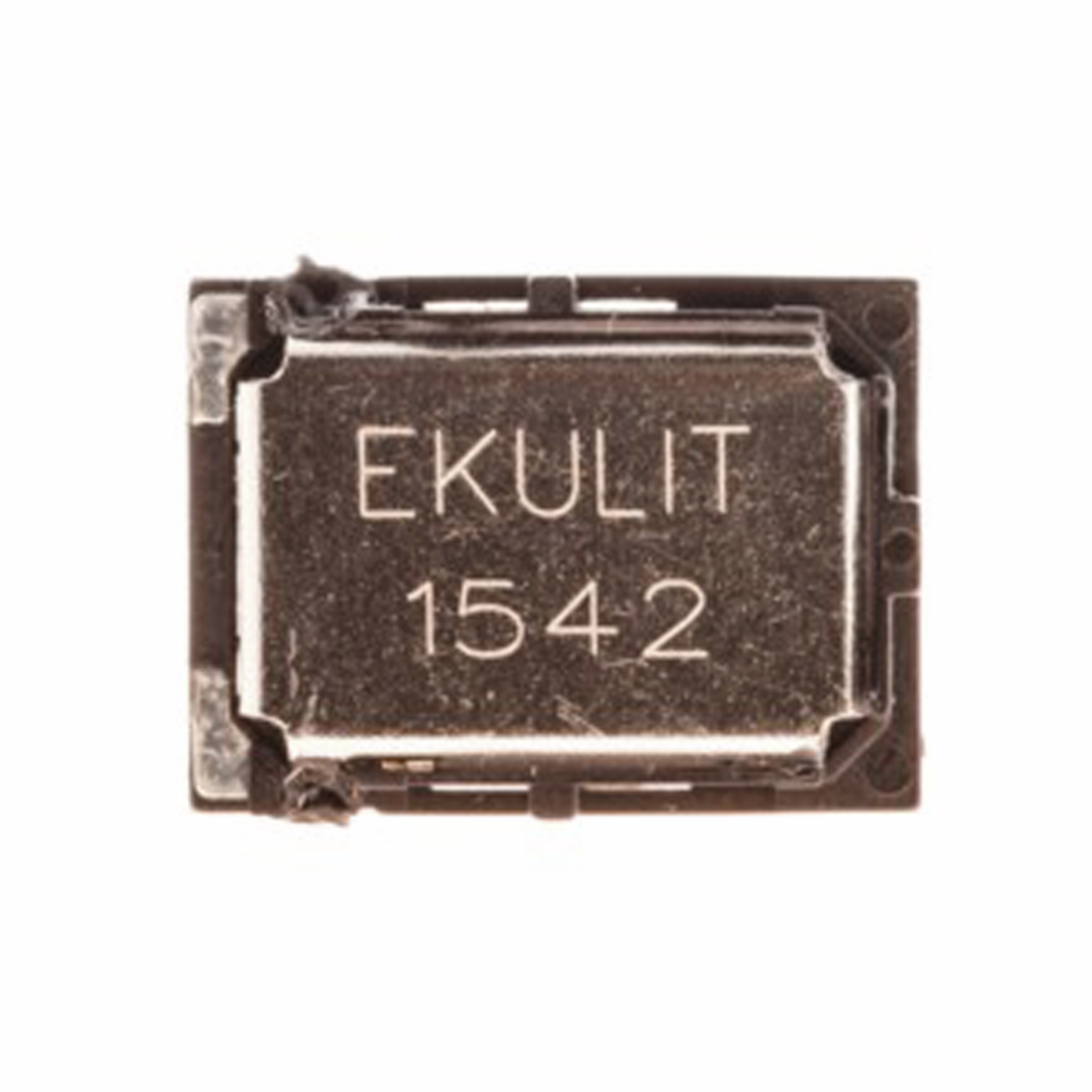

Ekulit Speaker LSF 85dB 8Ohm

Manufacturer Part No.
106033
Schukat Part No.
LSF-S1511K
Manufacturer
Ekulit
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
5 Pcs.
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Speaker
Sound pressure level, min.
85 dB
Impedance
8 Ohm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Ekulit
Type
  • Speaker
Series
  • LSF
Product group
  • H1731 EKULIT LSF Plastic Loudspeakers (Mylar)
Dimension: Length
  • 11 mm
Dimension: Width
  • 15 mm
Dimension: Height
  • 3.4 mm
Weight
  • 1.5 g
Assembly Type
  • SMD
Features

  • - Very small design
    - Dimensions: 11x15x3,4mm
    - Micro speaker with high power
    - For use applicable in the medical field and in the field of model
    - Mylar-Membrane

Operating conditions

Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 60 °C

Electrical features

Impedance
  • 8 Ohm
Frequency, min.
  • 650 kHz
Frequency, max.
  • 20,000 kHz
Sound pressure level, min.
  • 85 dB
