9 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet

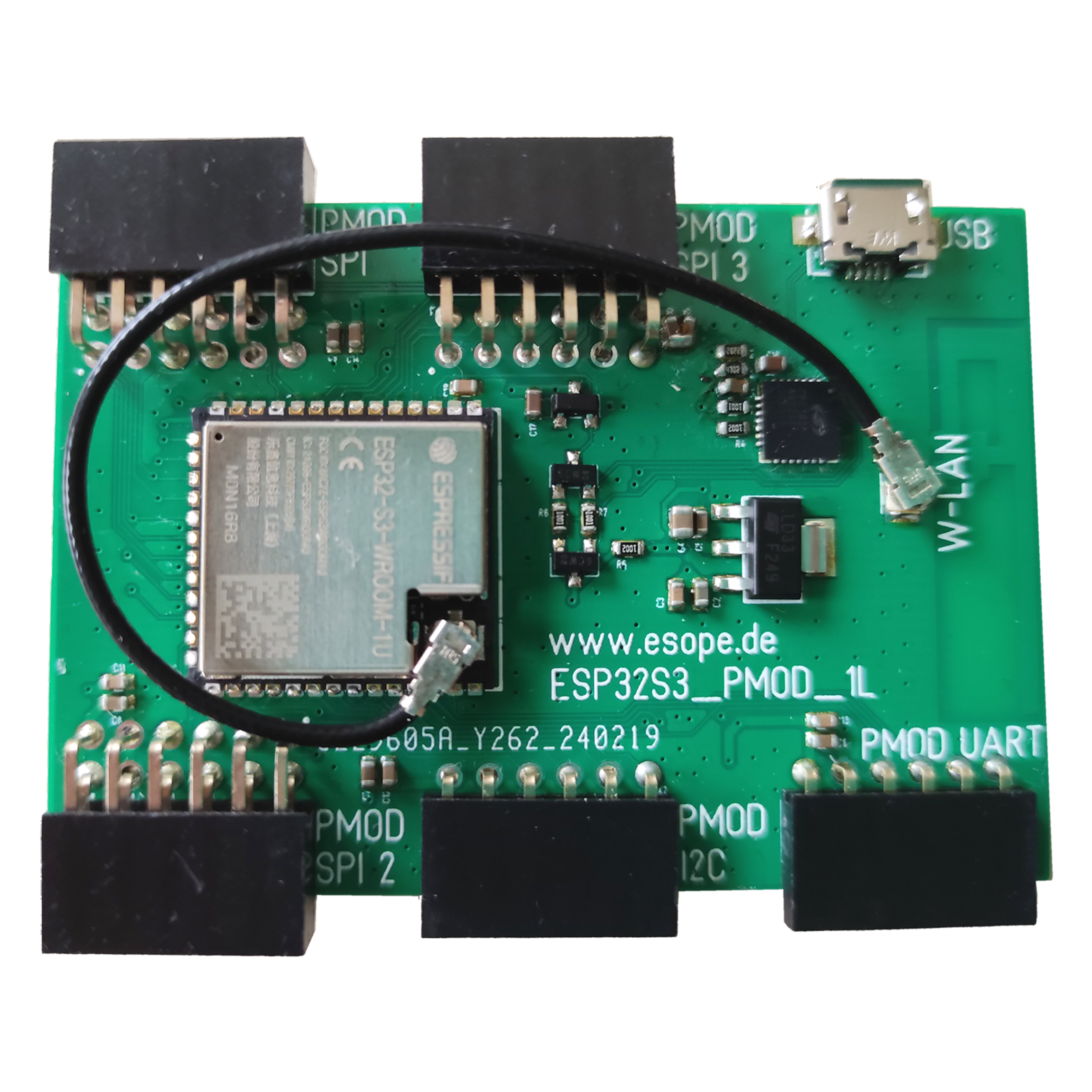

- Type
- WiFi/Bluetooth Development Board
- Flash
- 16 MB
- PSRAM
- 2 MB
- Antenna
- U.FL-R-SMT-1(10)
- Interface
- 3xPMOD/SPI
ADC
CAN
I2S
PMOD/I2C
PMOD/UART
WLAN antenna - RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature, min. (TA)
- -10 °C
- Operating Temperature, max. (TA)
- 70 °C
Electrical Properties
- Supply Voltage Min.
- 5 V (DC) via USB
- Supply Voltage Max.
- 5 V (DC) via USB
- Program Memory Size
- 384 KB
- Memory Size
- 2 KB
- Flash
- 16 MB
- PSRAM
- 2 MB
- Antenna
- U.FL-R-SMT-1(10)
- Interface
- 3xPMOD/SPI
- ADC
- CAN
- I2S
- PMOD/I2C
- PMOD/UART
- WLAN antenna
- Contained Module/Controller
- ESP32-S3-WROOM-1U-N16R2
- CPU Architecture
- Xtensa
- Number of Processor Core
- 2
- Transmission Protocol
- IEEE 802.11 b/g/n
- Bluetooth
- BR/EDR, Bluetooth LE v.5
- Transmission Frequency
- 2.4 GHz
