522515

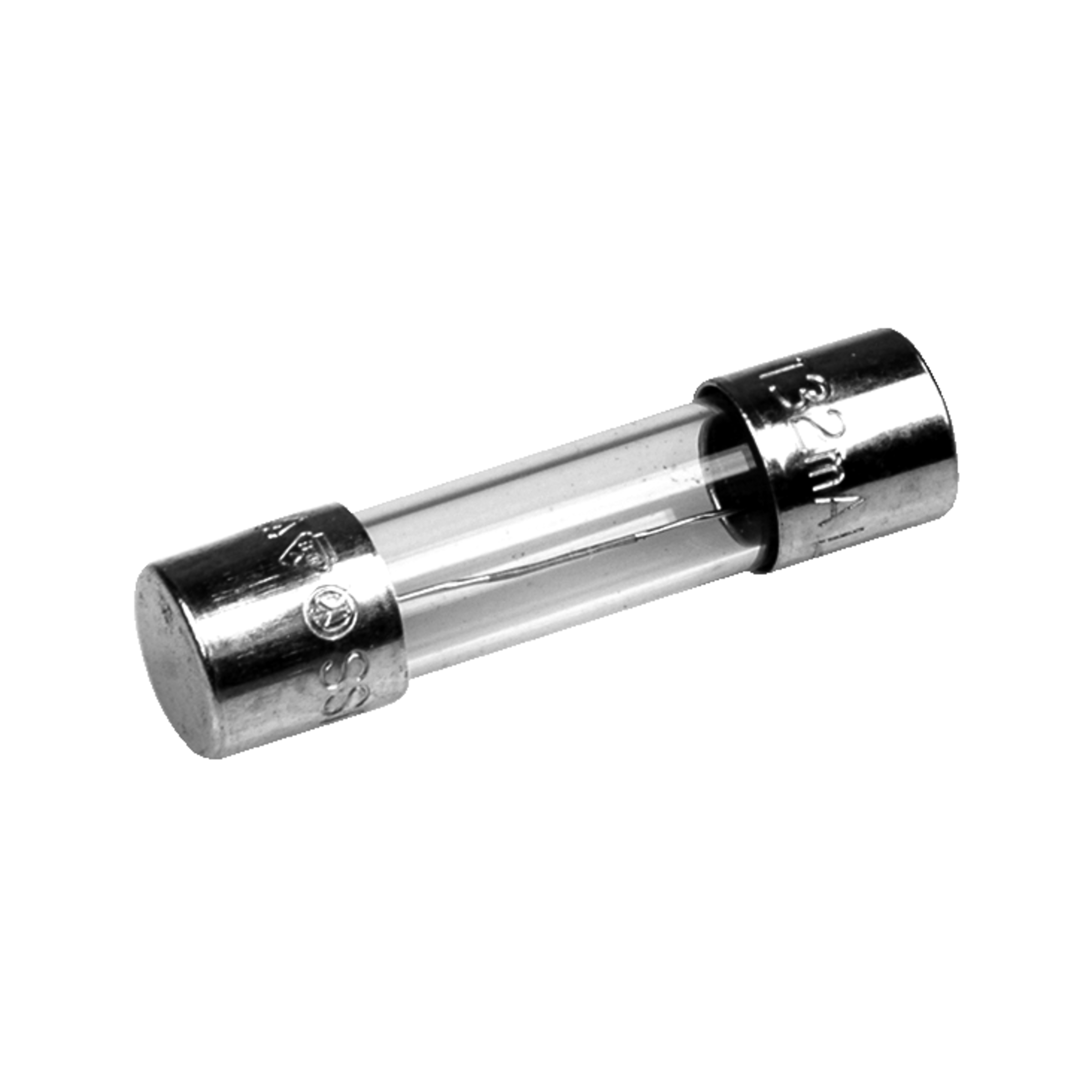

ESKA Device fuse link 5x20mm 522.500 inert 250VAC 0,63A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.980 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- 522.500
- Characteristic
- inert
- Rated voltage V AC
- 250 V AC
- Rated current
- 0.63 A
- RoHS-Conform
Specifications
Open all
Technical features
- Rated current
- 0.63 A
- Melting integral
- 1.52 A²/s
- Rated breaking capacity
- 35 A
- Rated voltage V AC
- 250 V AC
- Voltage drop
- 300 mV
- Power loss, max.
- 1,6 W
Safety/Certifications
- Approvals
- CE
- VDE
- cULus
- Standards
- IEC 60127-2-3
