522026

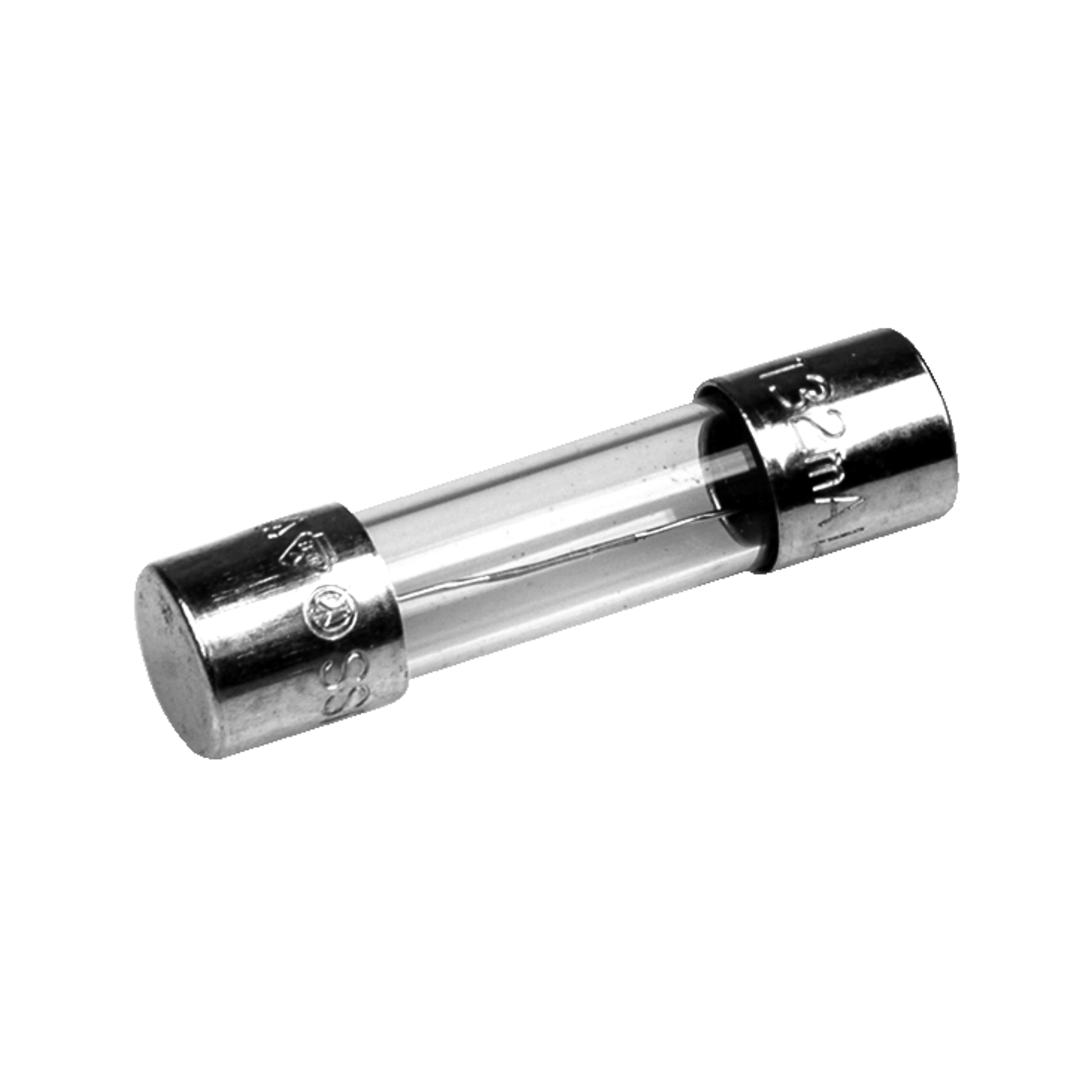

ESKA Device fuse link 5x20mm 522.000 time-lag 250VAC 8A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
6.790 Pcs. in stock
Next Stock Receipt
Week 18/2026
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable fuse holders. - Series
- 522.000
- Package/Case
- 5 x 20 mm
- Characteristic
- time-lag
- Rated voltage V AC
- 250 V AC
- Rated current
- 8 A
- RoHS-Conform
Specifications
Open all
Technical Features
- Rated current
- 8 A
- Melting integral
- 517 A²/s
- Rated breaking capacity
- 300 A
- Rated voltage V AC
- 250 V AC
- Voltage drop
- 120 mV
Safety/Certifications
- Approvals
- CE
- Standards
- DIN 41571-3
Other Products
All Products of the Series
