0IC1300

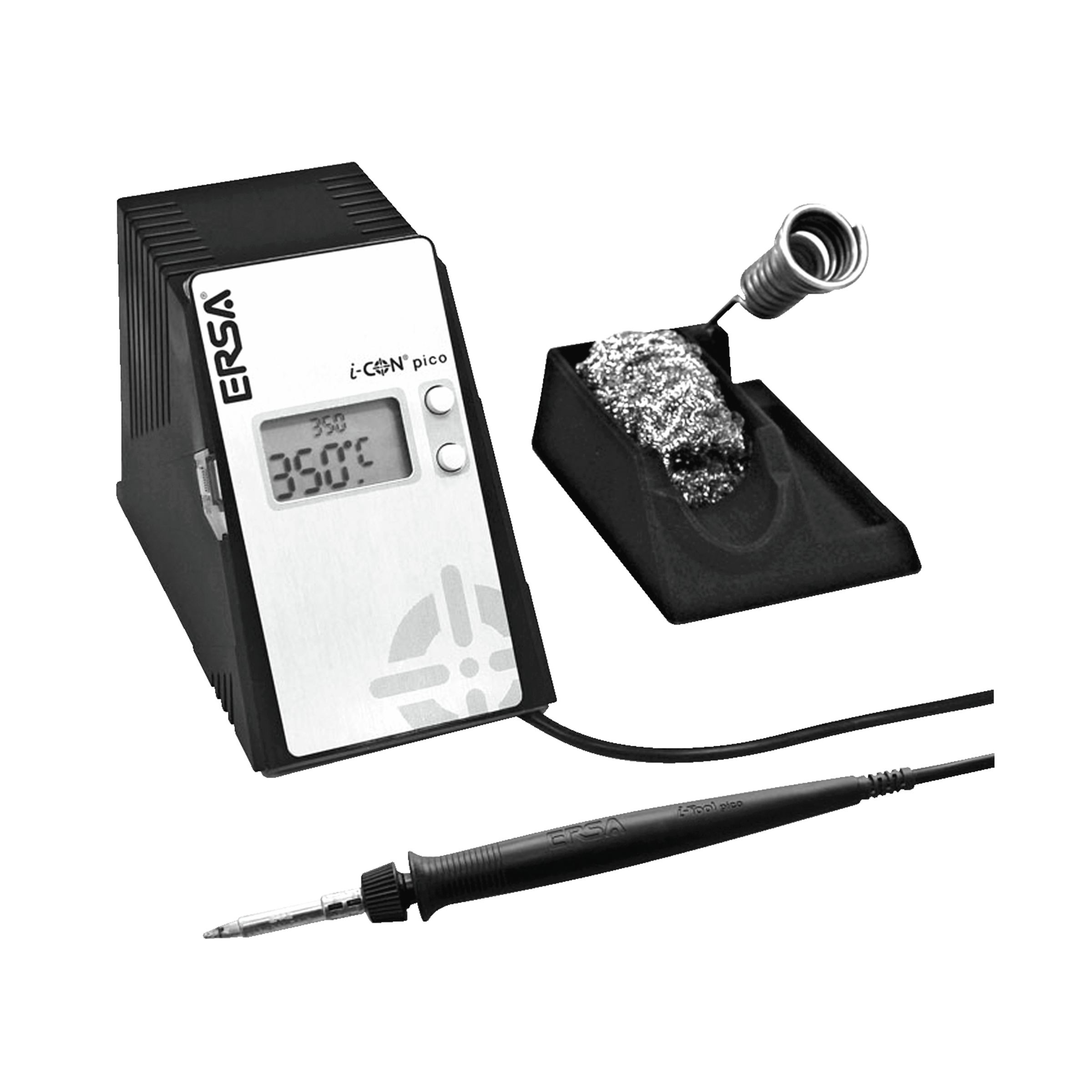

ERSA Solder Station i-CON PICO 80W 150°C 450°C

ERSA-IC1300AERSA-IC1300A
Manufacturer Part No.
0IC1300
Schukat Part No.
ERSA-IC1300A
Manufacturer
ERSA
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

Item no longer available!

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 01.01.2024
Cancelled by manufacturer with replacement
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Display
true
Performance
80 W
Power supply
230 V
Operating Temperature Min.
150 °C
Operating Temperature Max.
450 °C
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • ERSA
Type
  • Solder Station
Series
  • i-CON PICO
Product group
  • T1244
Dimension: Length
  • 145 mm
Dimension: Width
  • 80 mm
Dimension: Height
  • 103 mm
Display
Features

  • - assignable energy function
    - ultra-lightweight and ergonomic i-Tool pico
    - Locking function
    - Shut-down timer to save energy and extend the service life of the soldering tips
    - Full parameterisation via computer software and MicroSD card (optional)
    - Contents: ‘i-CON pico’ electronics station, ‘i-Tool pico’ soldering iron with 1.6 mm chisel-shaped soldering tip (ERSA-102CDLF-16), storage stand and dry cleaner

Operating conditions

Operating Temperature Min.
  • 150 °C
Operating Temperature Max.
  • 450 °C

Electrical features

Power supply
  • 230 V
Performance
  • 80 W
Heating time
  • 9 s

Safety/Certifications

ESD
Approvals
  • CE

Documents

240805_Ersa_Katalog_Loetwerkzeuge_2025_DE_Web.pdf
Download (pdf, 7.473 KB)
