0IC1200A

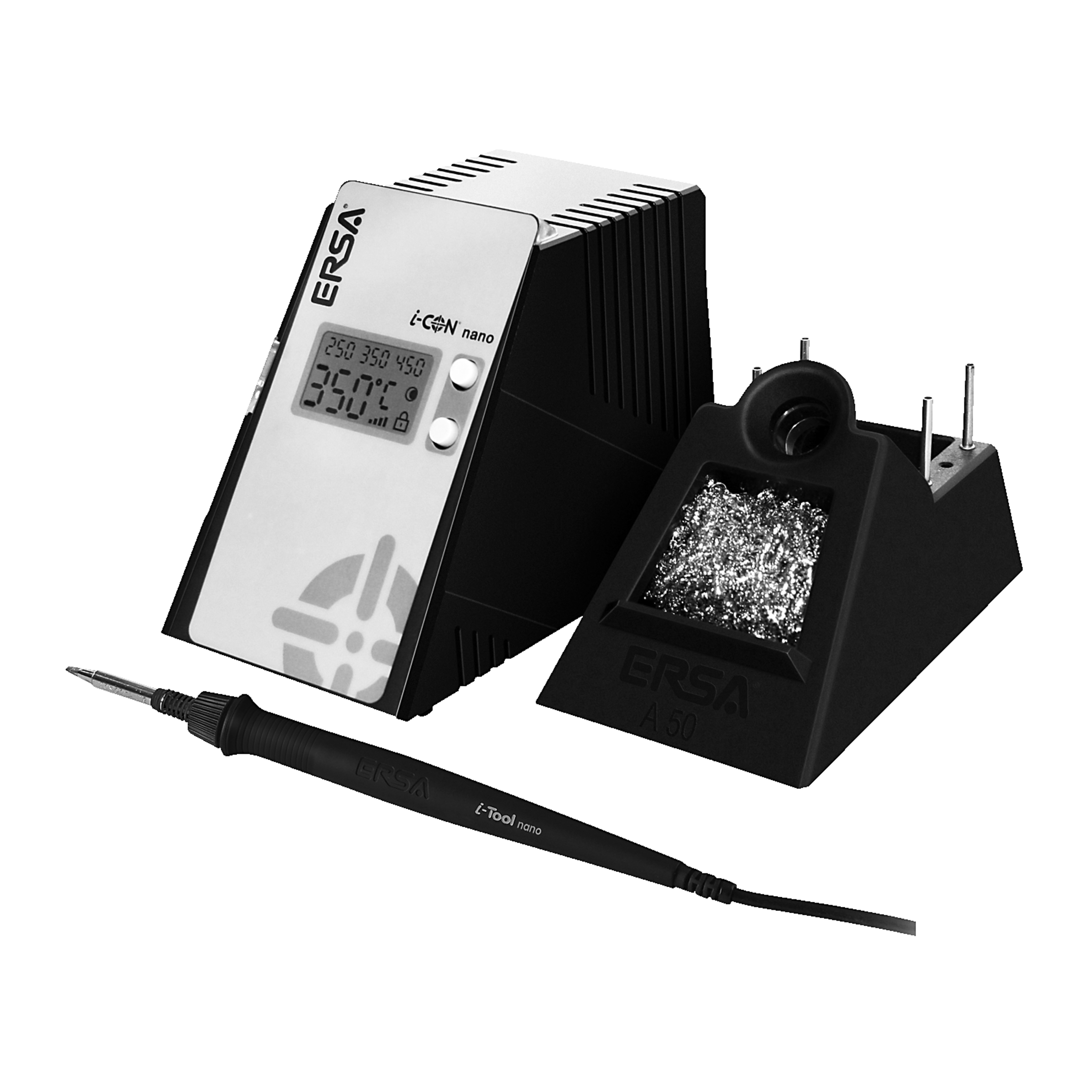

ERSA Solder Station i-CON NANO 80W 150°C 450°C

ERSA-IC1200A
Manufacturer Part No.
0IC1200A
Schukat Part No.
ERSA-IC1200A
Manufacturer
ERSA
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

Item no longer available!

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 01.07.2023
Discontinued by manufacturer with replacement
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Display
true
Performance
80 W
Power supply
230 V
Operating Temperature Min.
150 °C
Operating Temperature Max.
450 °C
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • ERSA
Type
  • Solder Station
Series
  • i-CON NANO
Product group
  • T1244
Dimension: Length
  • 145 mm
Dimension: Width
  • 80 mm
Dimension: Height
  • 103 mm
Display
Features

  • - Fully antistatic according to MIL-SPEC/ESA standards
    - Ultra light and ergonomically designed i-Tool nano
    - Automatic stand-by function and non-operative mode saves energy & tip life
    - Password lockout function for increased process control
    - Calibration function for exact tip temperatures
    - Complete system parameterization via simple PC software and micro SD card (optionally)
    - Delivery contents: Electronic station, "i-CON nano" soldering iron "i-Tool nano" with ERSA-102CDLF16 soldering pin and tool holder 0A50 and Dry Cleaner 0008M

Operating conditions

Operating Temperature Min.
  • 150 °C
Operating Temperature Max.
  • 450 °C

Electrical features

Power supply
  • 230 V
Performance
  • 80 W
Heating time
  • 9 s

Safety/Certifications

ESD

Documents

240805_Ersa_Katalog_Loetwerkzeuge_2025_DE_Web.pdf
Download (pdf, 7.473 KB)
