466A.05.0/5062

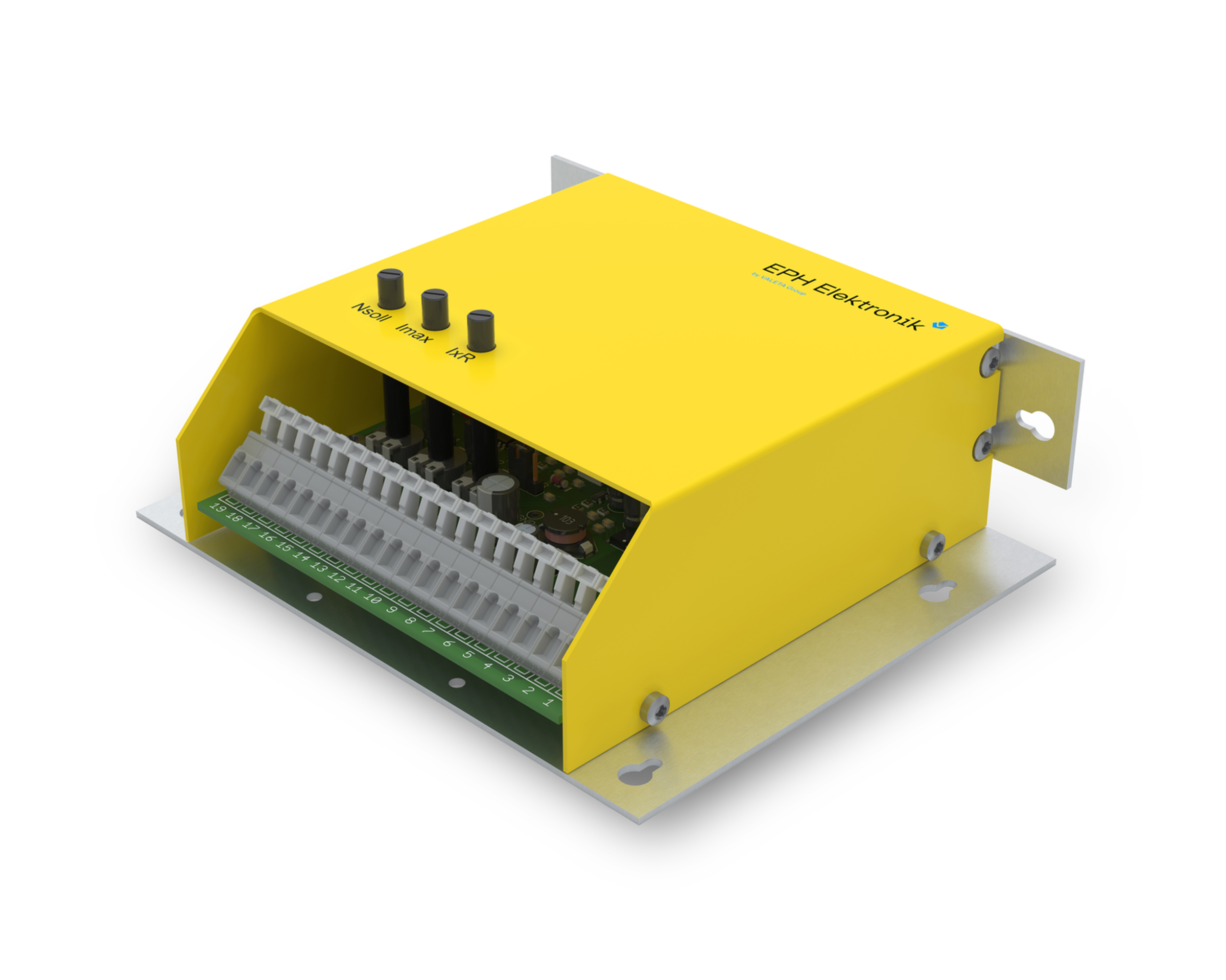

EPH DLR 24/XX-466A Motor control 5A 12V - 36V
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- DLR 24/XX-466A
- Type
- Motor control
- Features
- load-independent digital 1-quadrant transistor DC controller
- Setpoint speed controlled via potentiometer or external voltage
- Speed setpoint can be preselected as internal or external via jumpers
- Armature voltage: max. 12 V DC, max. 24 V DC, preselectable via jumper
- Current limit adjustable via potentiometer
- Armature voltage feedback (EMF) with I x R compensation
- Armature voltage 0–12/0–24 V DC
- With snap-in mechanism for the 35 mm mounting rail
- Cover cap in yellow- Rated current
- 5 A
- Supply voltage, min.
- 12 V
- Supply voltage, max.
- 36 V
- Dimension: Length
- 140 mm
- Dimension: Width
- 52 mm
- Dimension: Height
- 124 mm
- RoHS-Conform
