CM36/30/GREY

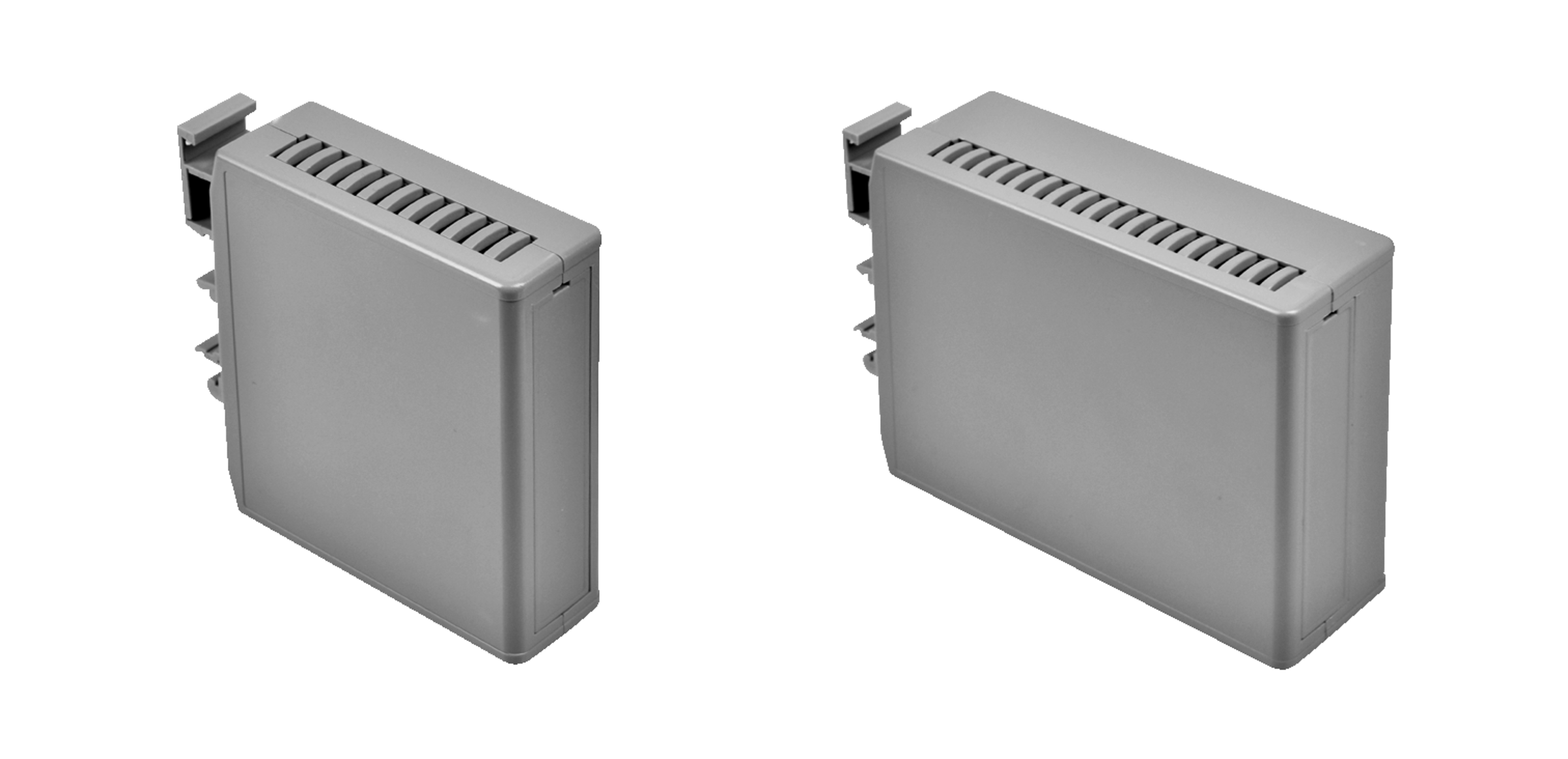

ELBAG CM36 Top-hat rail housing 112mm x 82mm x 38mm gray
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
50 Pcs.
50 Pcs.
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Top-hat rail housing
- Assembly Type
- Snap-on assembly
- Dimension: Length
- 112 mm
- Dimension: Width
- 82 mm
- Dimension: Height
- 38 mm
- Type ( axial, radial )
- Air vents
replaceable panel - Colour
- gray
- Material
- ABS (Acrylonitrile Butadiene Styrene)
- RoHS-Conform
Specifications
Open all

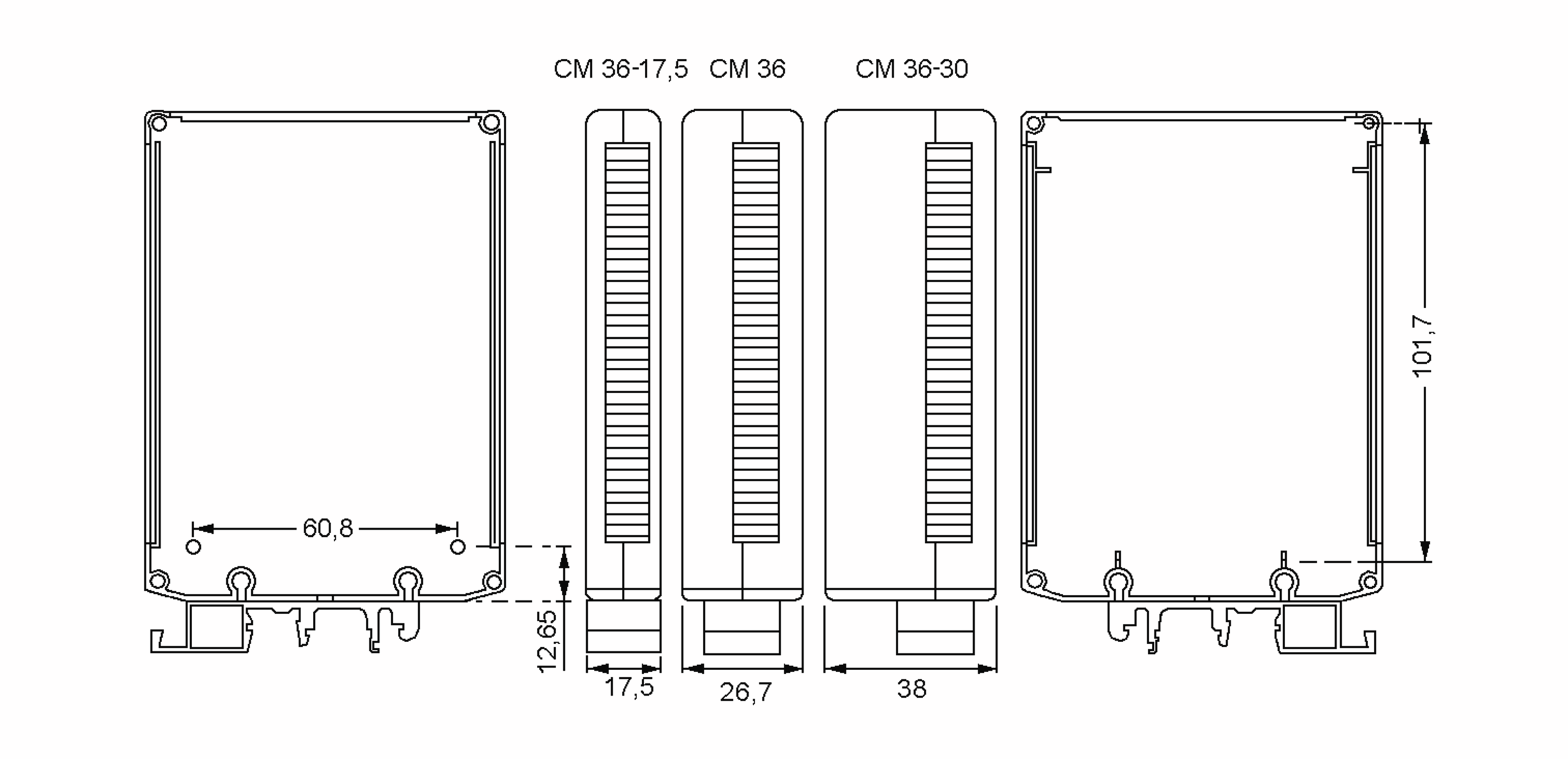

Dimensions and weights
- Dimension: Length
- 112 mm
- Dimension: Width
- 82 mm
- Dimension: Height
- 38 mm
