EA11831A(T01)

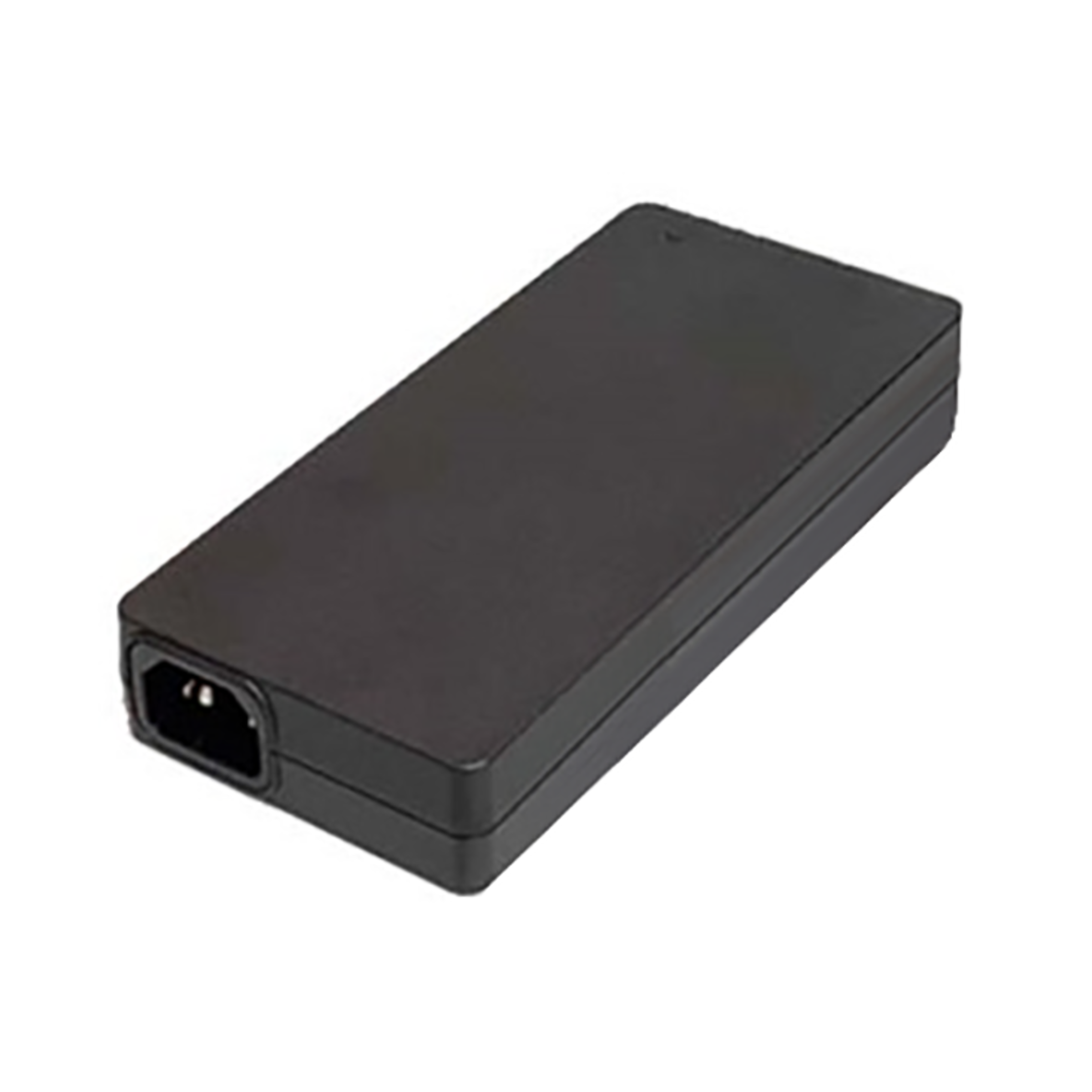

EDACPOWER Desktop Power Supply 130W 12V 10,83A Power Mini DIN 4-Pin
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
300 Pcs.
300 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 300 or multiple of 300)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Package/Case
- Desktop Power Supply
- Output Power
- 130 W
- Output voltage
- 12 V
- Output current
- 10.830 A
- Connection type, output
- Power Mini DIN 4-Pin
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 100,000 h
- Operating Temperature Min.
- 0 °C
- Operating Temperature Max.
- 40 °C
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 85 °C
Input
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 90 V
- Input voltage max. AC
- 264 V
- Input current
- 2.5 A
- Efficiency (at 10% load)
- 79 %
- Average efficiency
- 89 %
- No load power, less than
- 0.15 W
- Leakage current, max.
- 0.75 mA
- Inrush current, max.
- 120 A
- Power factor correction (PFC)
- Power factor
- 0.95
- Connection type, input
- IEC-320 C14
Output
- Number of outputs
- 1
- Output Power
- 130 W
- Output voltage
- 12 V
- Selectable output voltage
- Output voltage tolerance
- -5 %
- Ripple & Noise
- 180 mVp-p
- Output current
- 10.830 A
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Power Mini DIN 4-Pin
- Cable length, output
- 120 cm
Safety/Certifications
- Protection class
- I
- Isolation voltage I/P-O/P
- 3,000 V
- Isolation voltage I/P-FG
- 1,800 V
- Energy level
- (EU) 2019/1782 + Level VI
- Approvals
- CE
- EN
- IEC
- UKCA
- UL
- Standards (EMC)
- EN 55032 Class B
- Standards (safety)
- EN 62368-1
- IEC 62368-1
