EA11011P(46)

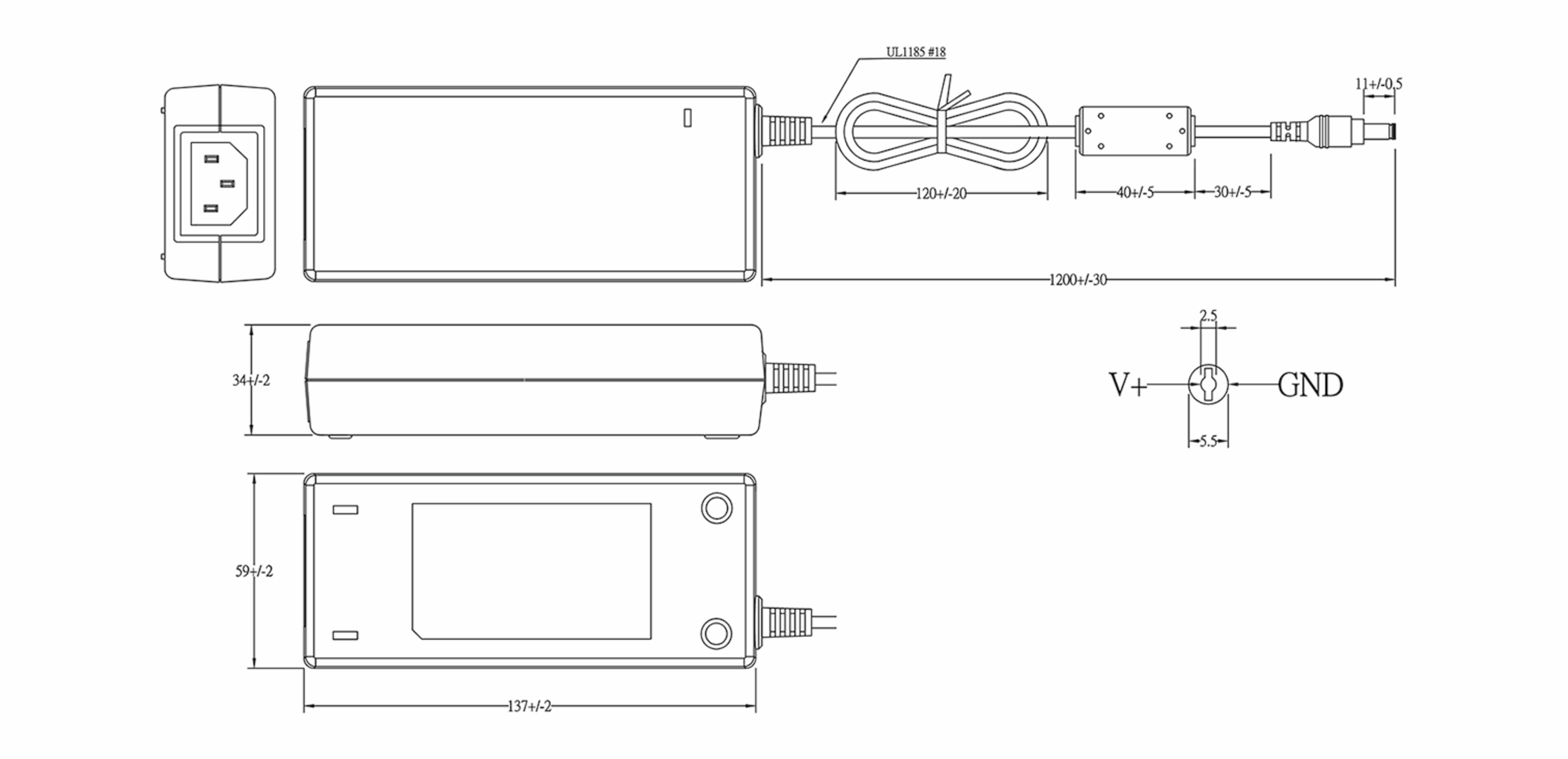

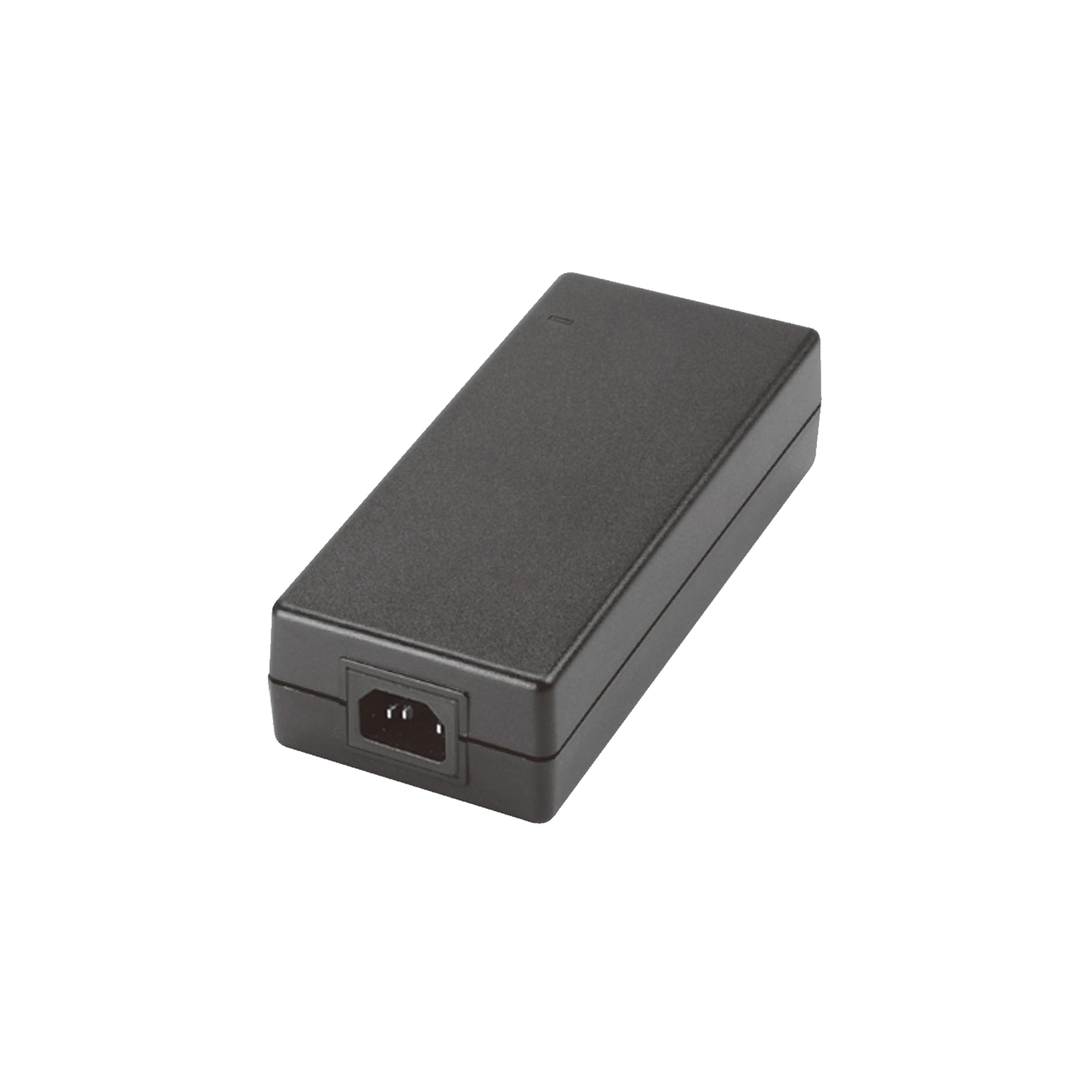

EDACPOWER Desktop Power Supply 130W 48V 2,7A 5,5*2,5mm Barrel Plug
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
268 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 37 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Package/Case
- Desktop Power Supply
- Output Power
- 130 W
- Output voltage
- 48 V
- Output current
- 2.700 A
- Connection type, output
- 5,5*2,5mm Barrel Plug
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 100,000 h
- Operating Temperature Min.
- 0 °C
- Operating Temperature Max.
- 40 °C
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 85 °C
Input
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 90 V
- Input voltage max. AC
- 264 V
- Input current
- 1 A
- Efficiency (at 10% load)
- 79 %
- Average efficiency
- 88 %
- No load power, less than
- 0.21 W
- Leakage current, max.
- 0.25 mA
- Inrush current, max.
- 120 A
- Power factor correction (PFC)
- Power factor
- 0.95
- Connection type, input
- IEC-320 C14
Output
- Number of outputs
- 1
- Output Power
- 130 W
- Output voltage
- 48 V
- Selectable output voltage
- Output voltage tolerance
- -5 %
- Ripple & Noise
- 720 mVp-p
- Output current
- 2.700 A
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- 5,5*2,5mm Barrel Plug
- Cable length, output
- 120 cm
Safety/Certifications
- Protection class
- I
- Isolation voltage I/P-O/P
- 3,000 V
- Isolation voltage I/P-FG
- 1,800 V
- Energy level
- (EU) 2019/1782 + Level VI
- Approvals
- BSMI
- CCC
- CE
- EAC
- EN
- IEC
- IRAM
- PSE
- RCM
- UKCA
- UL
- Standards (EMC)
- EN 55032 Class B
- Standards (safety)
- EN 62368-1
- IEC 62368-1
