ETB08030B000Z

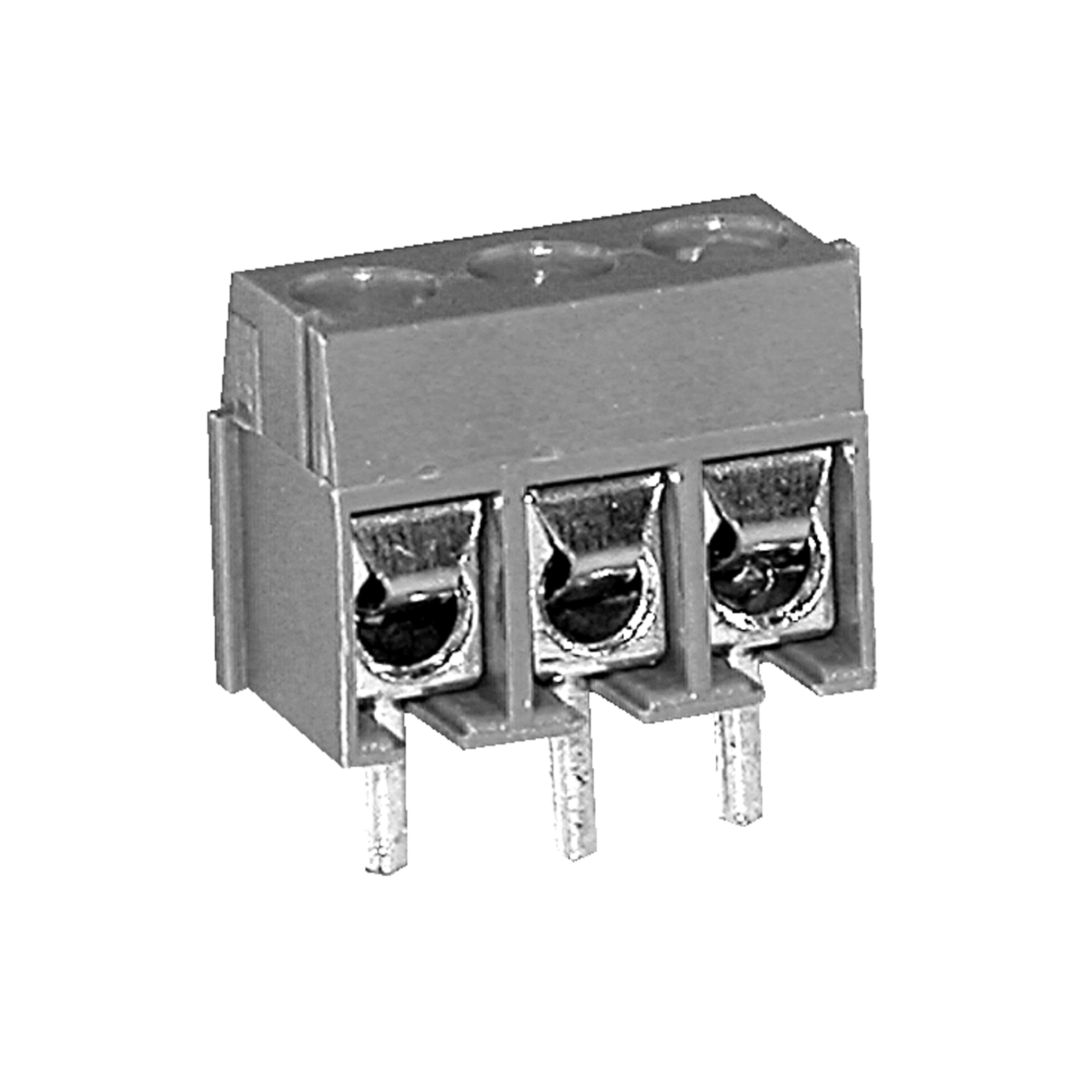

ECE Screw clamping principle with wire protection 3pol. 125VAC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
550 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 600 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- ETB08
- Actuation
- Screw clamping principle with wire protection
- Colour
- blue
- Number of poles
- 3
- Dimension: Length
- 10.5 mm
- Rated current
- 10 A
- Rated voltage AC
- 125 V AC
- Pitch
- 3.5 mm
- Dimension: Height
- 8.2 mm
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 100 °C
- RoHS-Conform
Specifications
Open all

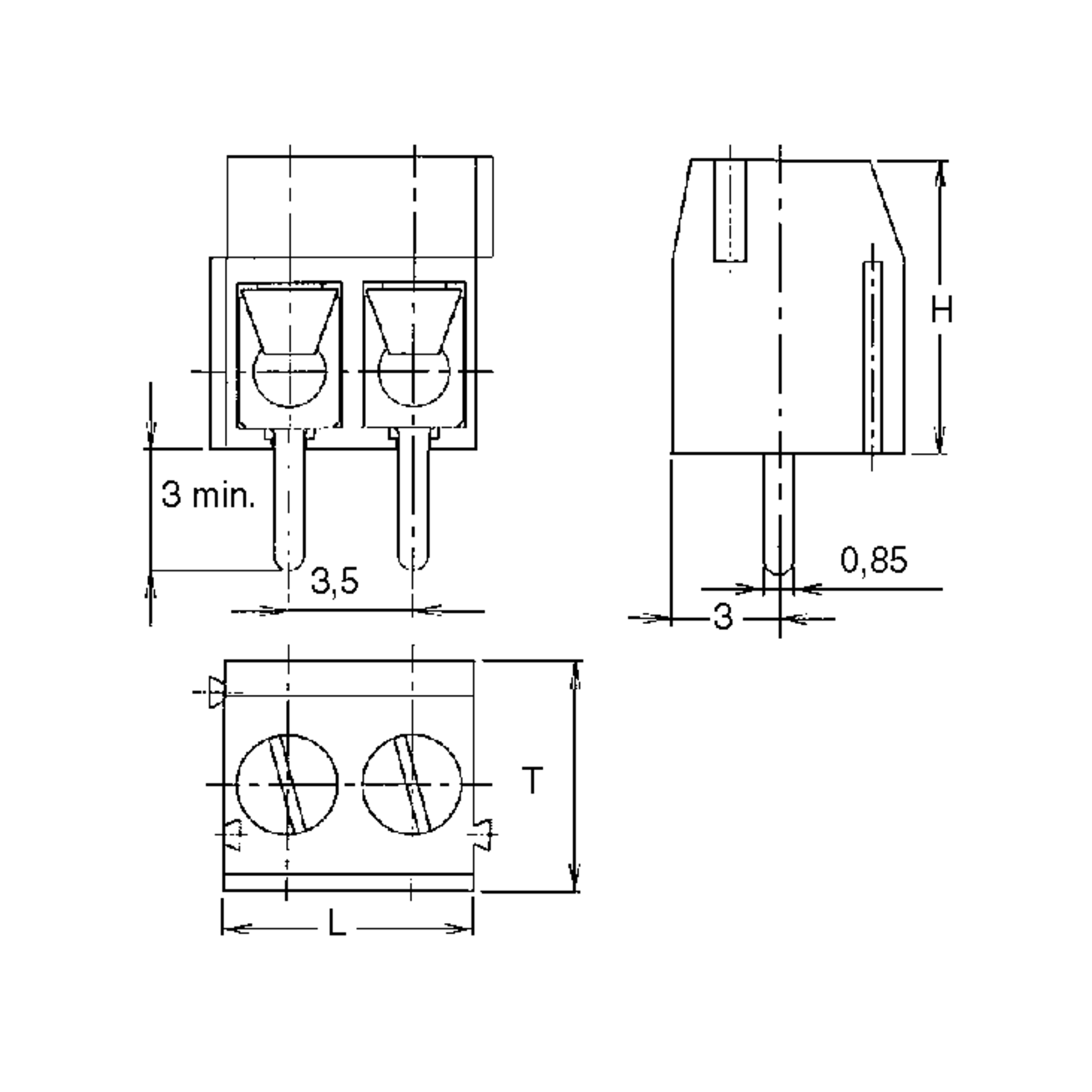

Dimensions and weights
- Dimension: Length
- 10.5 mm
- Dimension: Height
- 8.2 mm
- Dimension: Depth
- 6.5 mm
- Pitch
- 3.5 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 100 °C
Technical features
- Rated current
- 10 A
- Rated voltage AC
- 125 V AC
- Dielectric strength
- 2,000 V RMS
- Insulation resistance
- 500 mOhm
