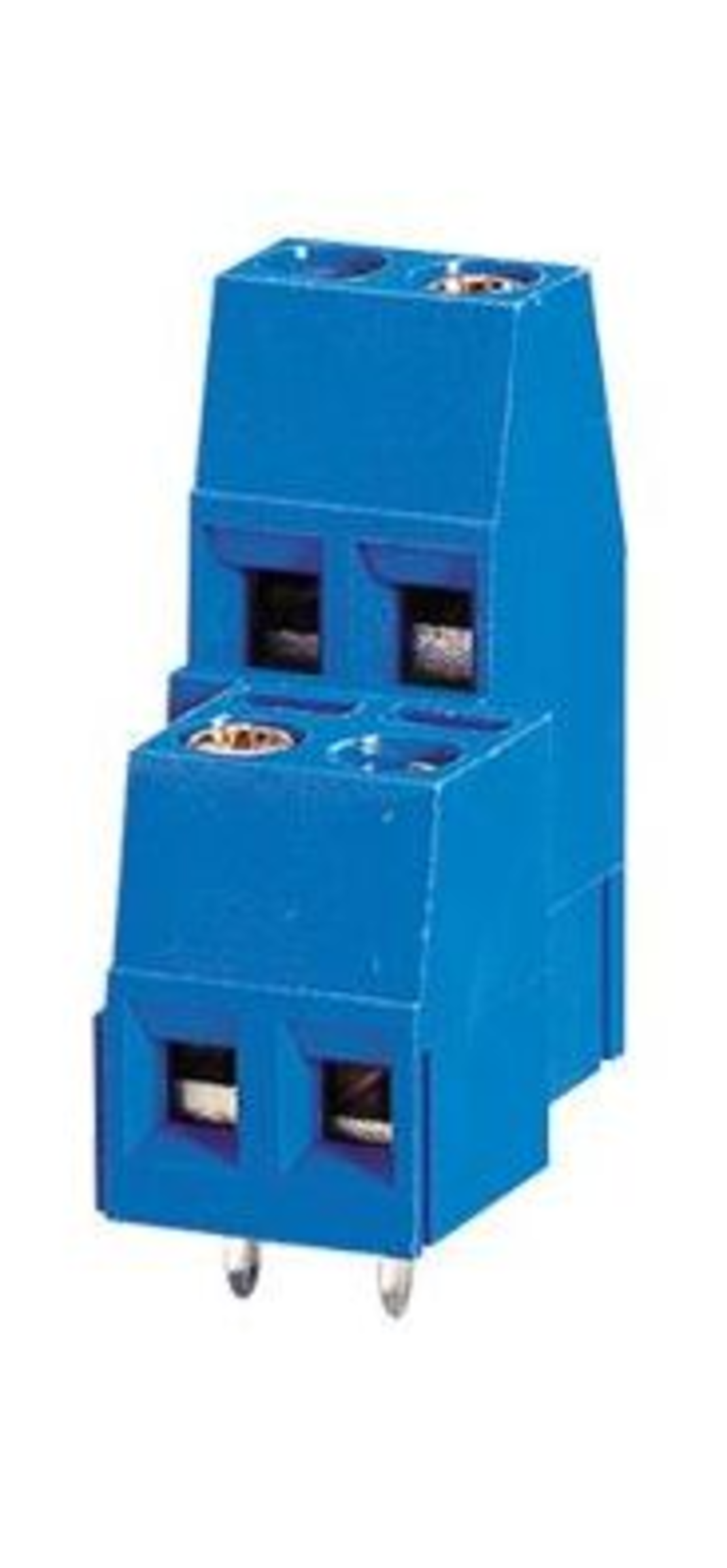

ETB05040B000Z
ECE Elevator principle 2pol. 300VAC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
150 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- ETB05
- Actuation
- Elevator principle
- Colour
- blue
- Number of poles
- 2
- Dimension: Length
- 7 mm
- Rated current
- 10 A
- Rated voltage AC
- 300 V AC
- Dimension: Width
- 16.3 mm
- Pitch
- 3.5 mm
- Dimension: Height
- 16.2 mm
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 110 °C
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 7 mm
- Dimension: Width
- 16.3 mm
- Dimension: Height
- 16.2 mm
- Pitch
- 3.5 mm
- Stripping length, max.
- 5 mm
- Conductor cross-section (AWG), min.
- 26 AWG
- Conductor cross-section (AWG), max.
- 16 AWG
- Nominal cross-section, solid, min.
- 0.13 mm²
- Nominal cross-section, solid, max.
- 1.3 mm²
Operating conditions
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 110 °C
Technical features
- Rated current
- 10 A
- Rated voltage AC
- 300 V AC
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
- Label
- TÜV
