ESW57A13A100

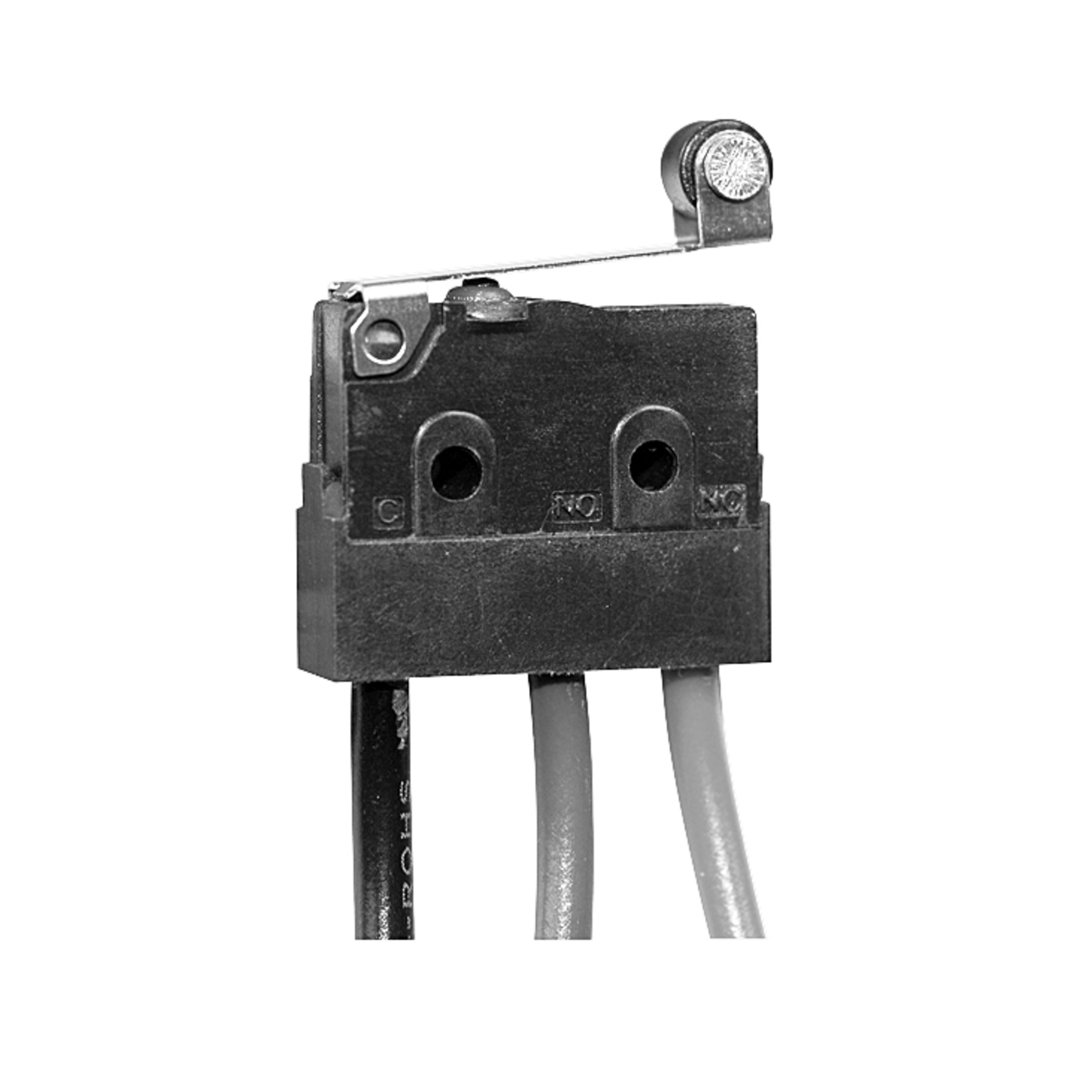

ECE Micro Switches ESW 1xCO Roller lever 250VAC 3A 0,59N
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
10 Pcs.
10 Pcs.
Next Stock Receipt
Week 48/2024
60 Pcs.
60 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Micro Switches
- Series
- ESW
- contacts
- 1xCO
- Type of actuator
- Roller lever
- Function
- 1xCO
- Number of poles
- 1
- illumination
- unlit
- Switching current, max.
- 3 A
- Actuating force, max.
- 0,59 N
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- Protection class
- IP67
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
Technical features
- Switching voltage
- 250 V AC
- Dielectric Strength
- 1.000 V AC
- Mechanical service life
- 50 x 10^6 Betätigungen
- Service life, electrical
- 10 x 10^4 Betätigungen
- Switching current, max.
- 3 A
- Contact resistance, max.
- 50 mOhm
- Insulation resistance, min.
- 100 MOhm

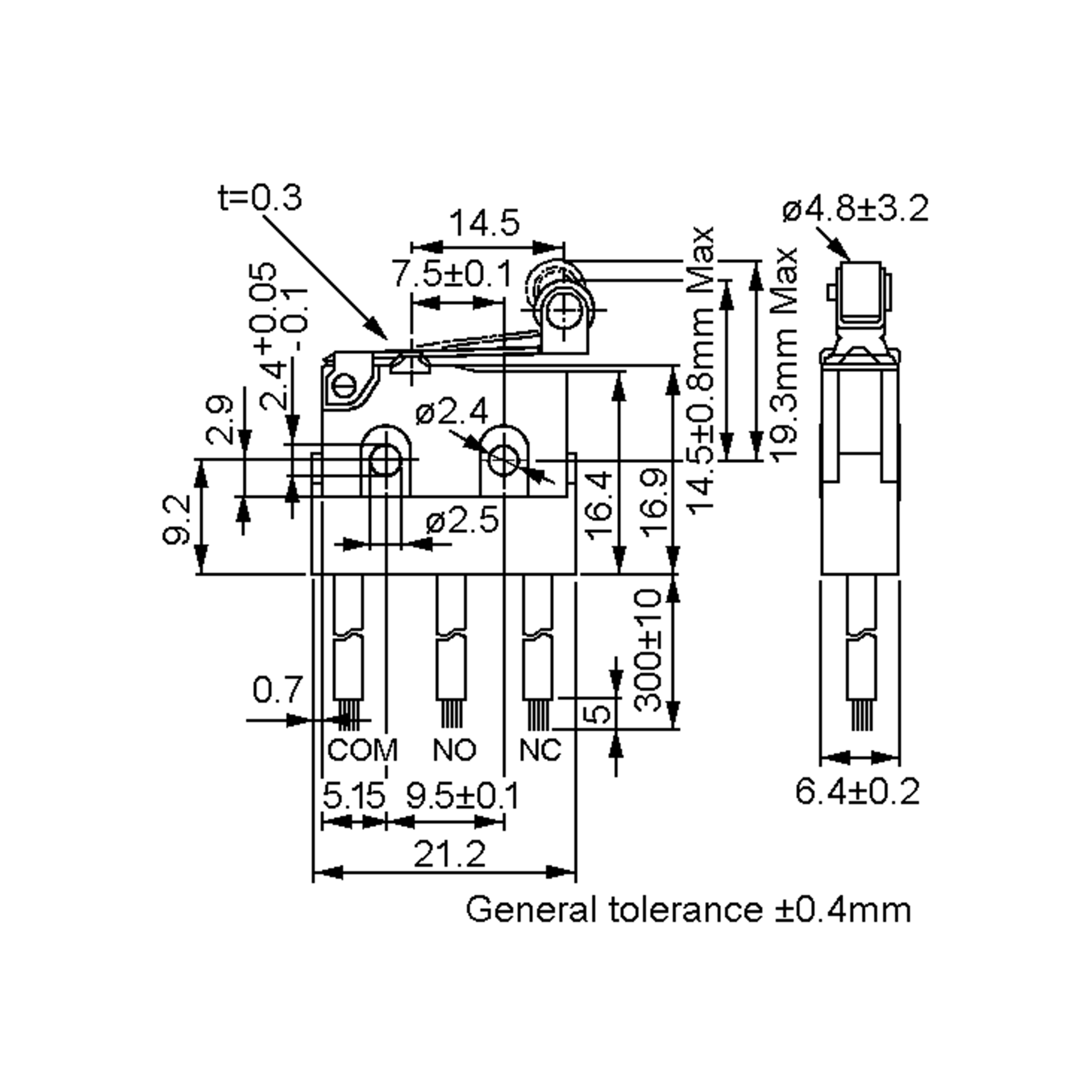

Mechanical properties
- Connection
- Strand
- Actuating force, max.
- 0,59 N
- Number of poles
- 1
Safety/Certifications
- Protection class
- IP67
