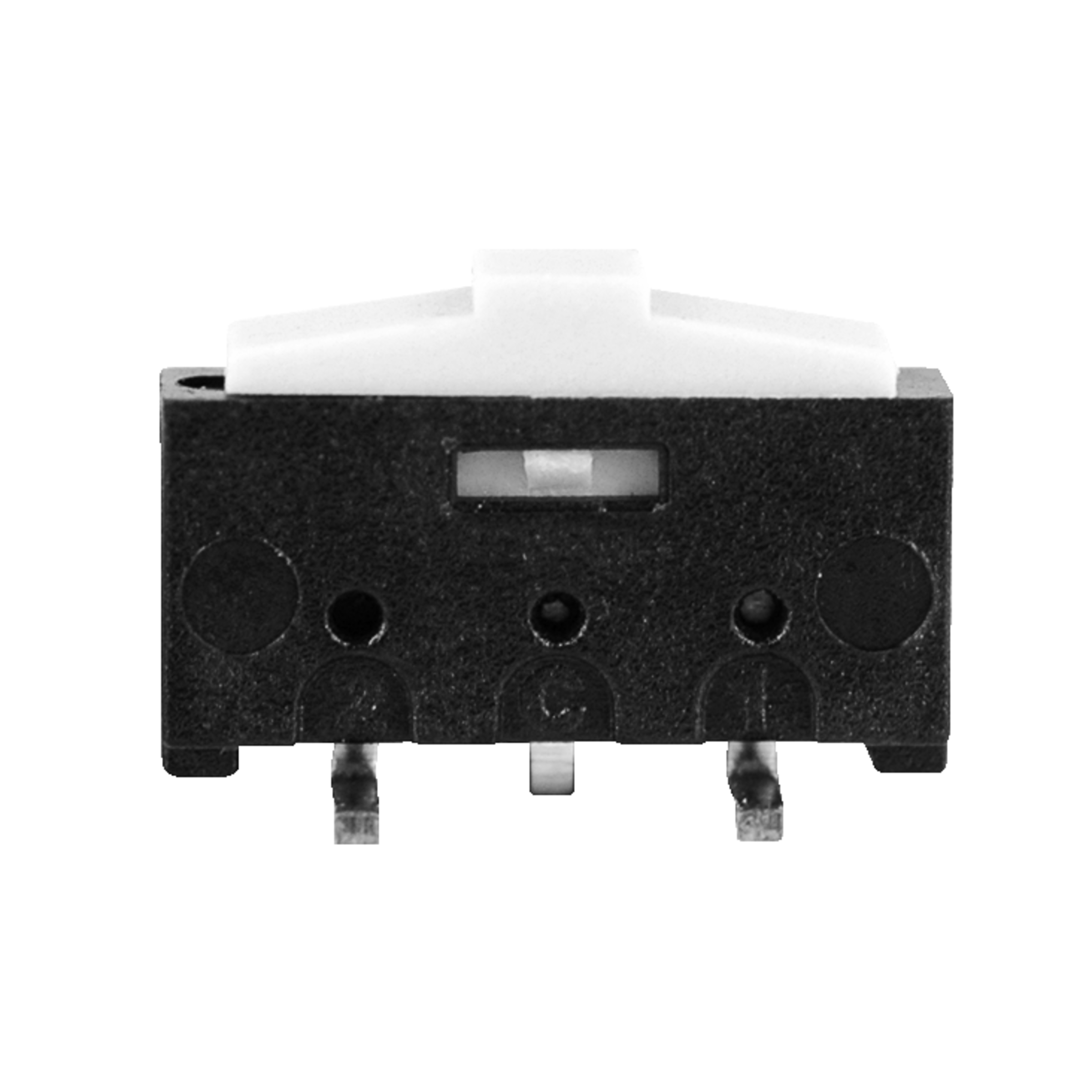

ESP3020
ECE Slide Switches ESP 1xCO RM2,54mm 12VDC 0,5A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
106 Pcs. in stock
Next Stock Receipt
Week 05/2025
636 Pcs.
636 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 53 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 53 or multiple of 53)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Slide Switches
- Series
- ESP
- contacts
- 1xCO
- Pitch
- 2.54 mm
- Function
- 1xCO
- illumination
- unlit
- Switching current, max.
- 0.5 A
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 70 °C
- Soldering temperature and duration, max.
- 230°C
- RoHS-Conform
Specifications
Open all

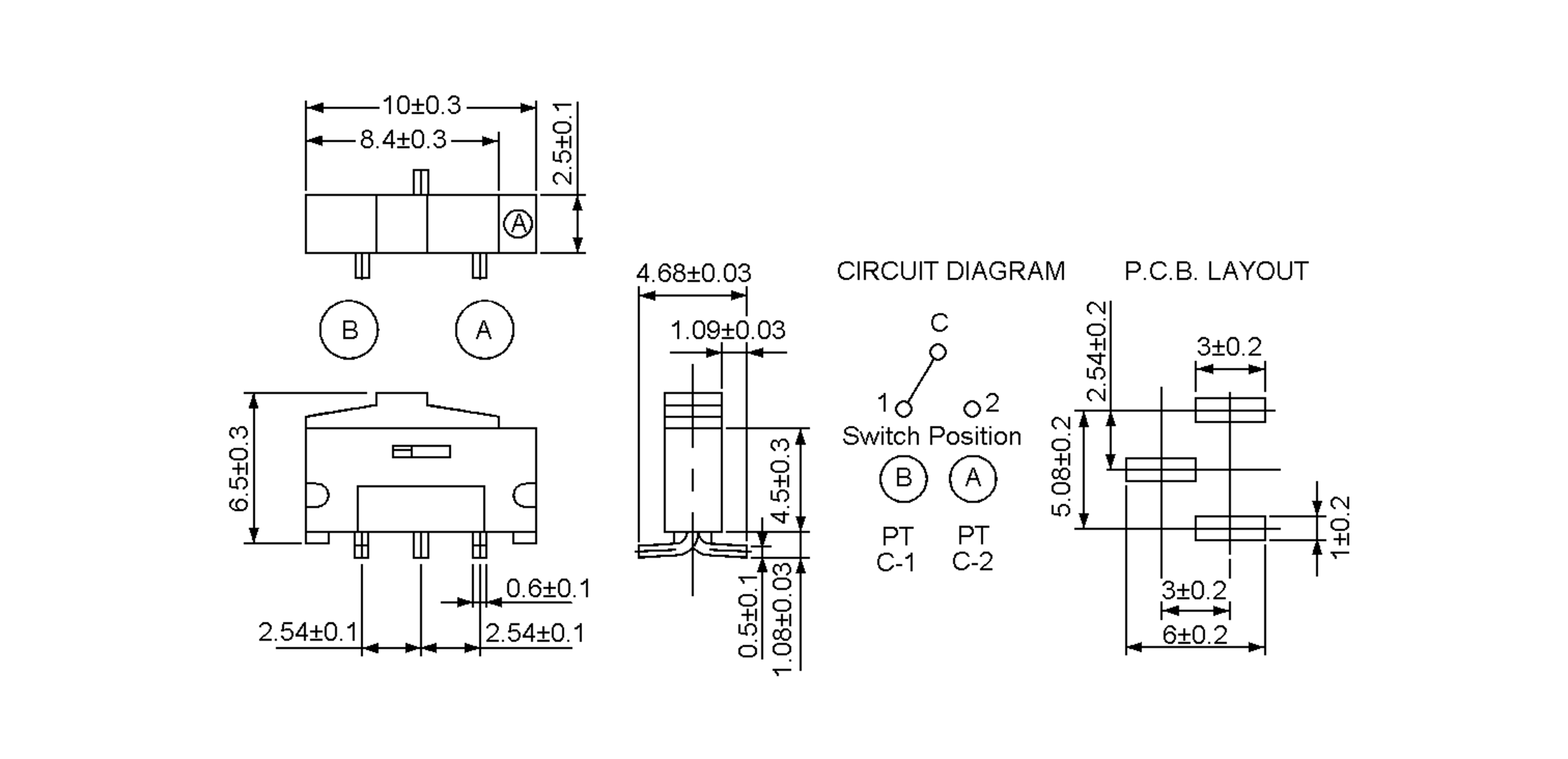

Dimensions and weights
- Pitch
- 2.54 mm
Operating conditions
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 70 °C
- Soldering temperature and duration, max.
- 230°C
Technical features
- Switching voltage
- 12 V DC
- Dielectric Strength
- 500 V DC
- Mechanical service life
- 5 x 10^3 Betätigungen
- Switching current, max.
- 0.5 A
- Contact resistance, max.
- 50 mOhm
- Insulation resistance, min.
- 1,000 MOhm
- Capacity
- 1.5 pF
Mechanical properties
- Connection
- Solder pin
