ESD-106-EZ
ECE DIP/DIL/Rotary Coded Switches ESD Standard-SMD RM2,54mm 6 Switch position 6 Pol(e)
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.907 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 34 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 17 or multiple of 17)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- DIP/DIL/Rotary Coded Switches
- Series
- ESD
- Body colour
- black
- Type ( axial, radial )
- Standard-SMD
- Pitch
- 2.54 mm
- Type of actuator
- Lever
- Number of switch positions
- 6
- Number of poles
- 6
- illumination
- unlit
- Switching current, max.
- 0.1 A
- Actuating force, max.
- 800 g
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 70 °C
- Flammability
- UL94V-0
- RoHS-Conform
Specifications
Open all

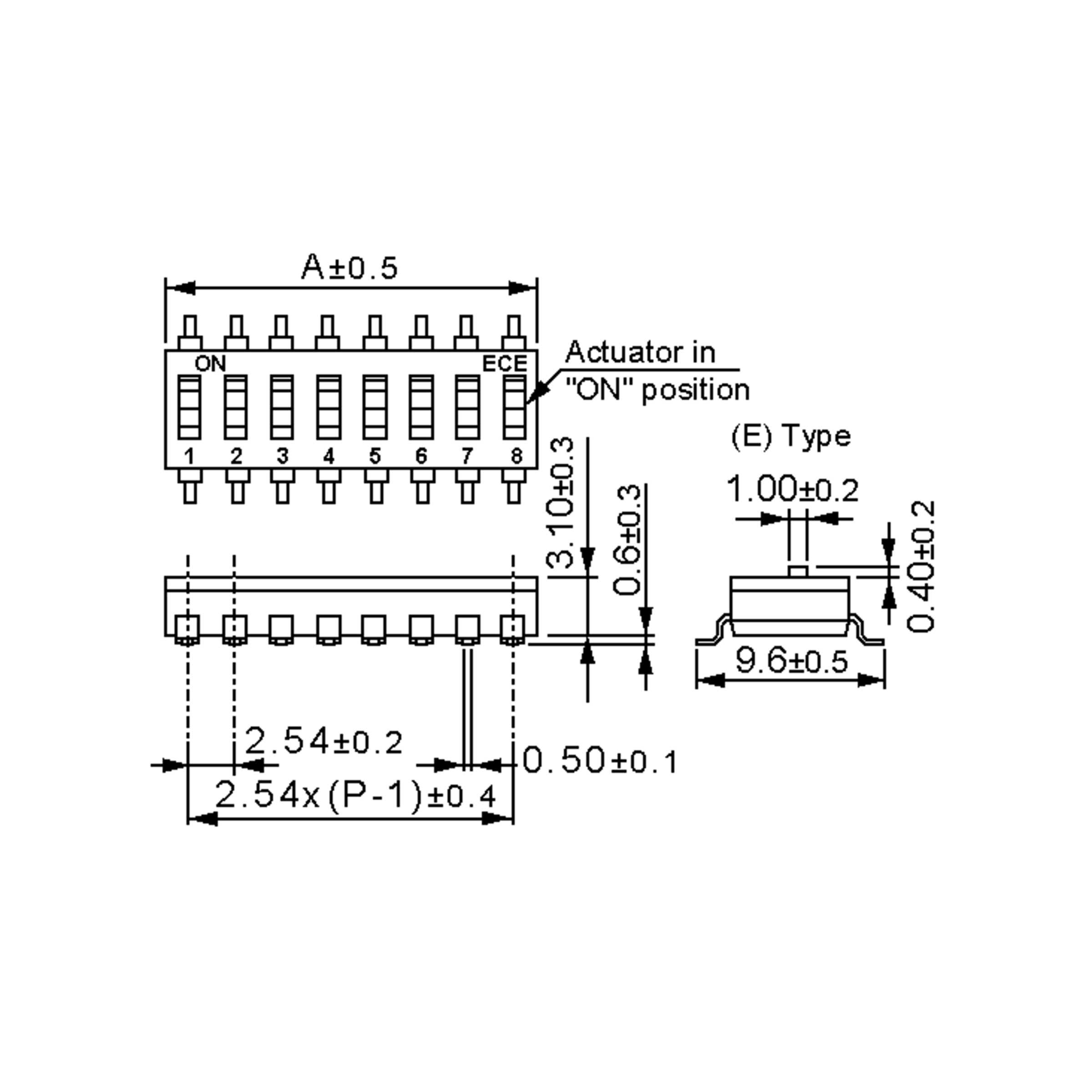

Dimensions and weights
- Dimension: Length
- 15.2 mm
- Pitch
- 2.54 mm
Operating conditions
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 70 °C
- Air humidity
- 95 %, 40 °C / 96 h
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 85 °C
Technical features
- Dielectric Strength
- 500 V DC
- Switching current, max.
- 0.1 A
- Insulation resistance, min.
- 1,000 MOhm
- Capacity
- 5 pF
Mechanical properties
- Actuating force, max.
- 800 g
- Number of switch positions
- 6
- Number of poles
- 6
Safety/Certifications
- Flammability
- UL94V-0
