ERFRB7003000Z
ECE Poly-Switch Fuse ERFRB 30VDC 7A radial RM10,2mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
600 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Self-resetting fuse
- Series
- ERFRB
- Rated current
- 7 A
- Interrupting Current, Max.
- 40 A
- Rated voltage V DC
- 30 V DC
- RoHS-Conform
Specifications
Open all

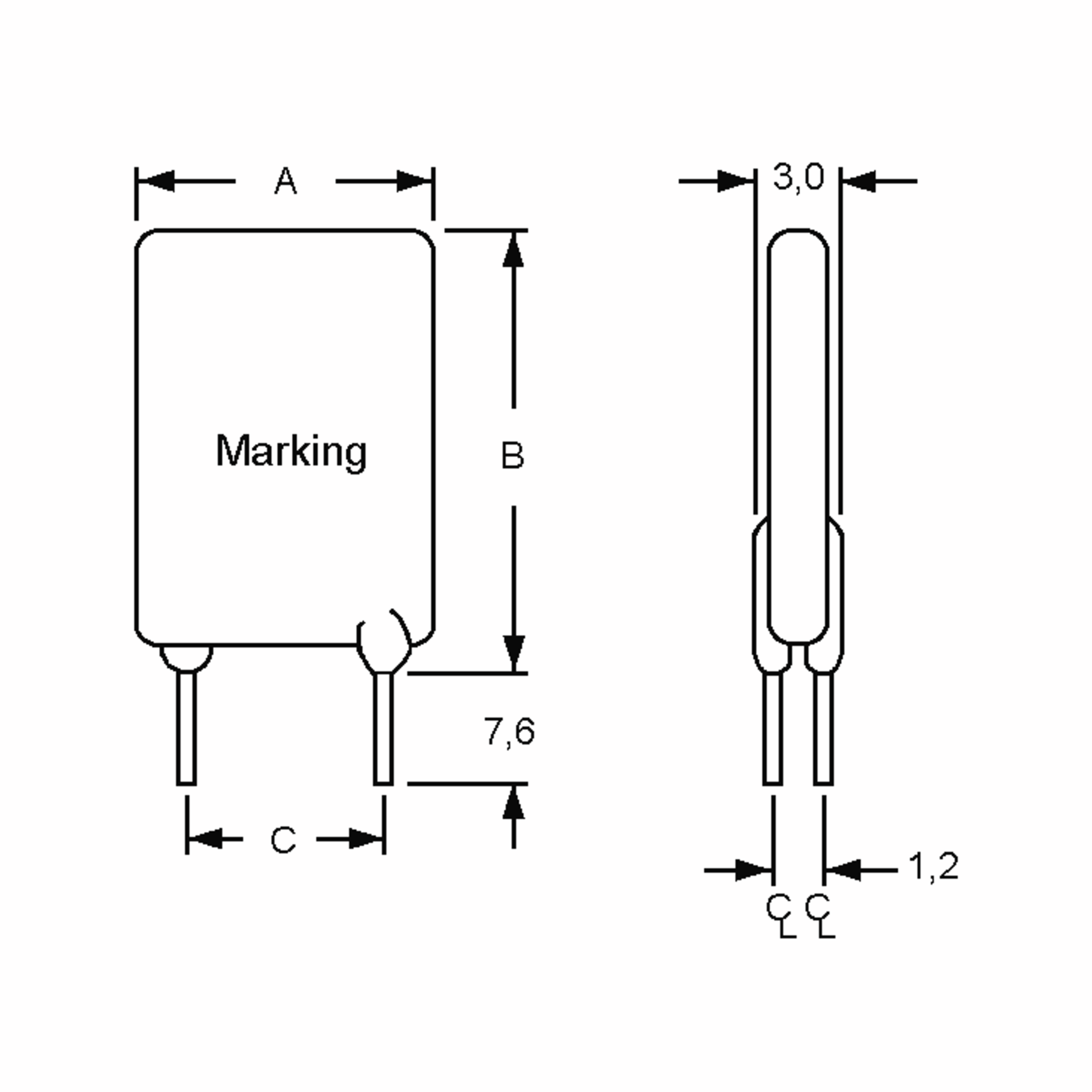

Dimensions and Weights
- Dimension: Length
- 19.1 mm
- Dimension: Width
- 3 mm
- Dimension: Height
- 34.3 mm
- Pitch
- 10.2 mm
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
Technical Features
- Rated current
- 7 A
- Interrupting Current, Max.
- 40 A
- Rated voltage V DC
- 30 V DC
- Max. resistance 1 hour after switching off
- 30 mOhm
- Tripping time with specified reference current IS
- 17.5 s
- Nominal power consumption
- 3.8 W
- Solderability
- 260 °C / 5 s
Safety/Certifications
- Approvals
- MOT
- cULus
