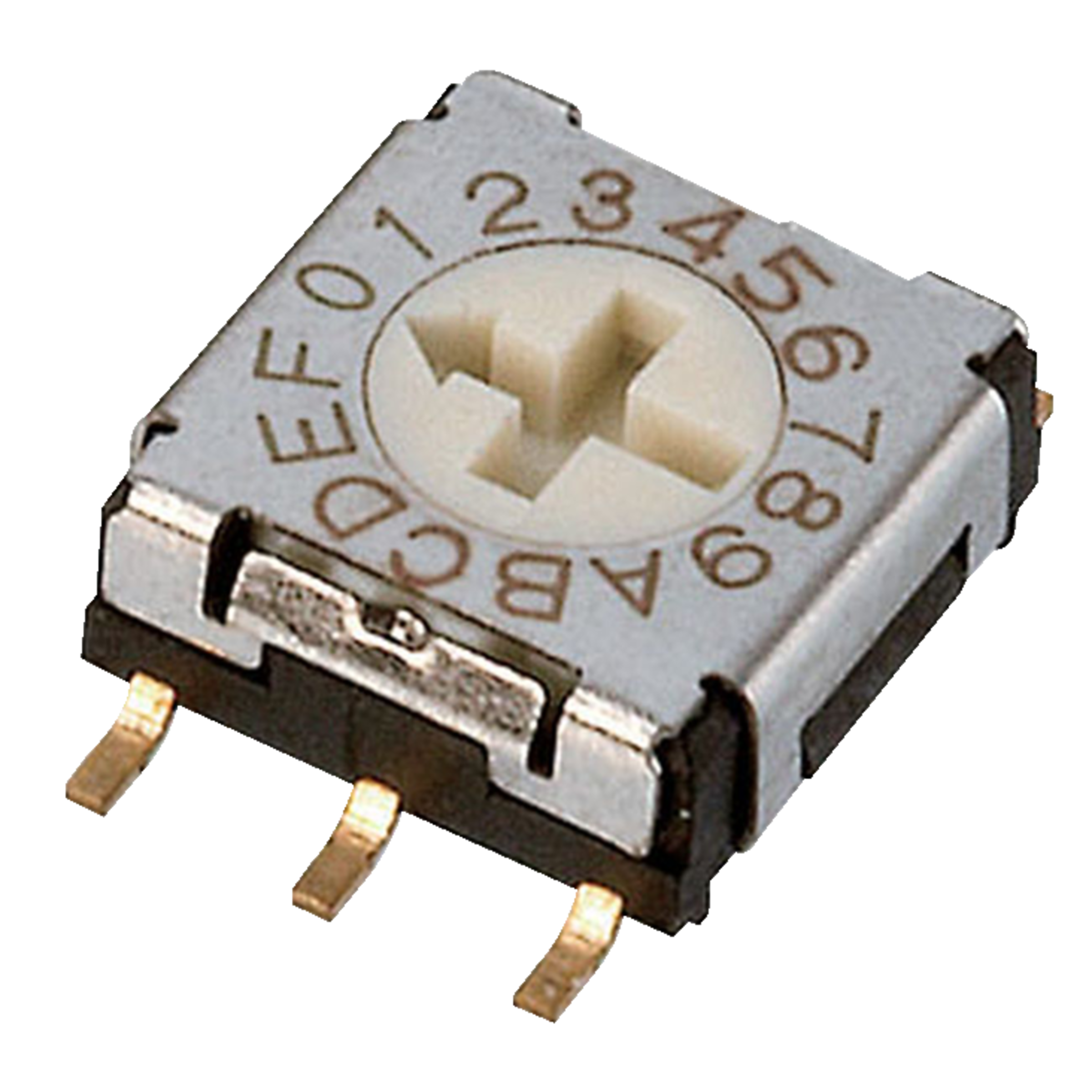

ERD716AM06Z
ECE DIP/DIL/Rotary Coded Switches ERD Standard-SMD RM2,54mm 16 Switch position
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
5 Pcs.
5 Pcs.
Next Stock Receipt
Week 48/2024
1.875 Pcs.
1.875 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 70 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- DIP/DIL/Rotary Coded Switches
- Series
- ERD
- Type ( axial, radial )
- Standard-SMD
- Pitch
- 2.54 mm
- Type of actuator
- Lever
- Number of switch positions
- 16
- illumination
- unlit
- Switching current, max.
- 0.1 A
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 70 °C
- RoHS-Conform
Specifications
Open all

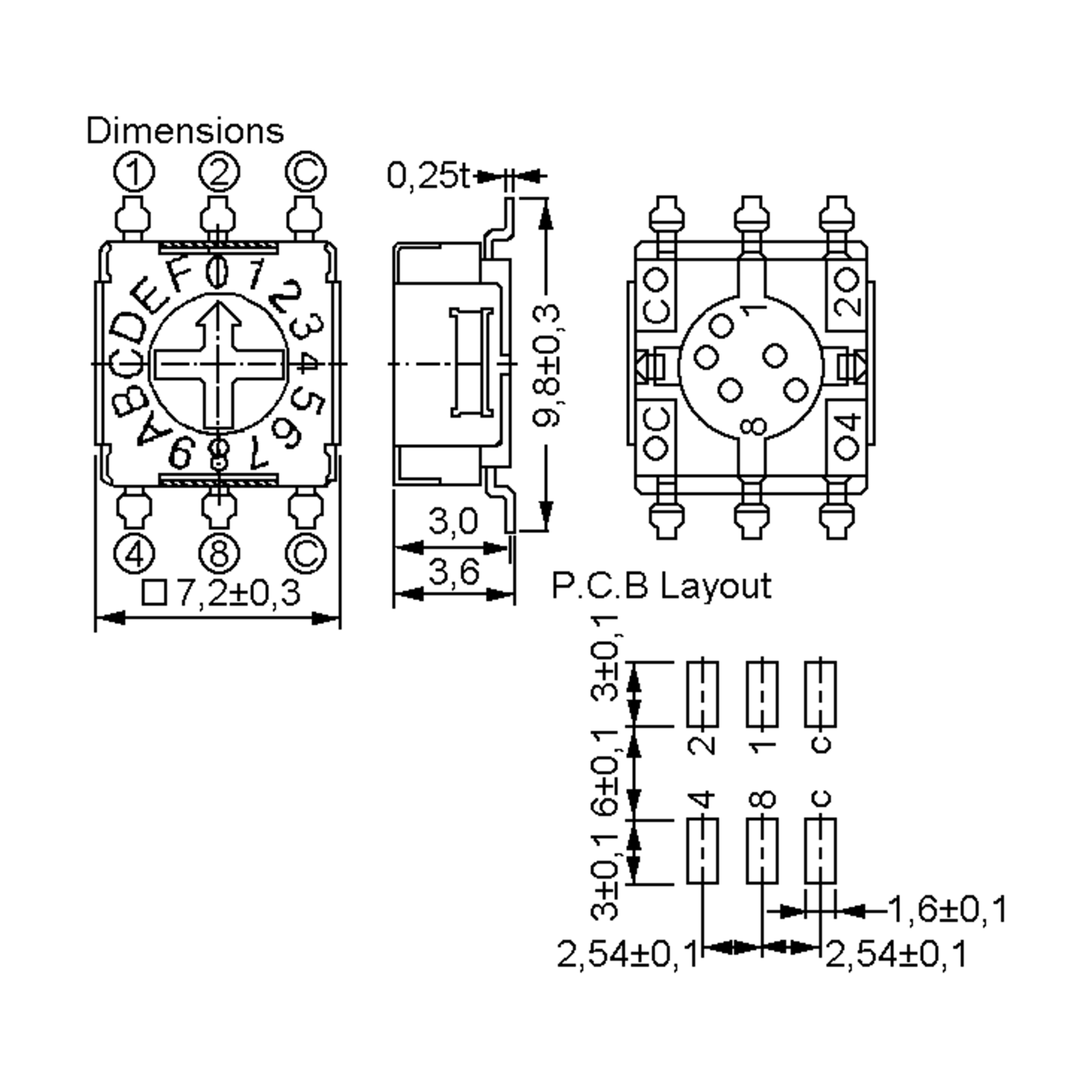

Dimensions and weights
- Dimension: Length
- 9.8 mm
- Dimension: Width
- 7.2 mm
- Dimension: Height
- 3.6 mm
- Pitch
- 2.54 mm
Operating conditions
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 70 °C
- Minimum Storage Temperature
- -25 °C
- Maximum Storage Temperature
- 85 °C
Technical features
- Dielectric Strength
- 250 V AC
- Mechanical service life
- 10^4 Betätigungen
- Switching current, max.
- 0.1 A
- Contact resistance, max.
- 200 mOhm
- Insulation resistance, min.
- 100 MOhm
Mechanical properties
- Number of switch positions
- 16
