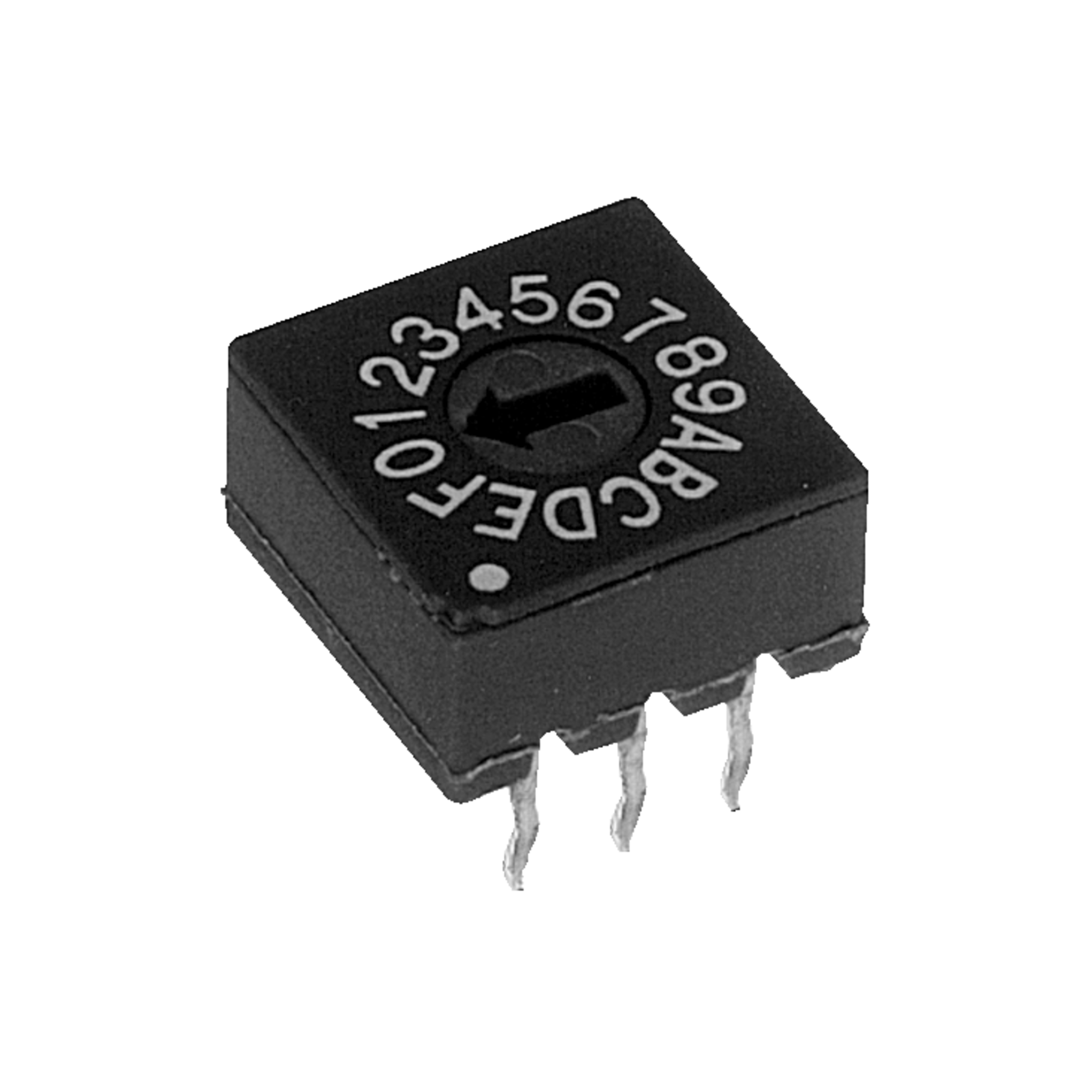

ERD-116-RSZ
ECE DIP/DIL/Rotary Coded Switches ERD Standard RM2,54mm 16 Switch position
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
6.025 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- DIP/DIL/Rotary Coded Switches
- Series
- ERD
- Body colour
- black
- Type ( axial, radial )
- Standard
- Pitch
- 2.54 mm
- Type of actuator
- Lever
- Number of switch positions
- 16
- illumination
- unlit
- Switching current, max.
- 0.1 A
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- RoHS-Conform
Specifications
Open all

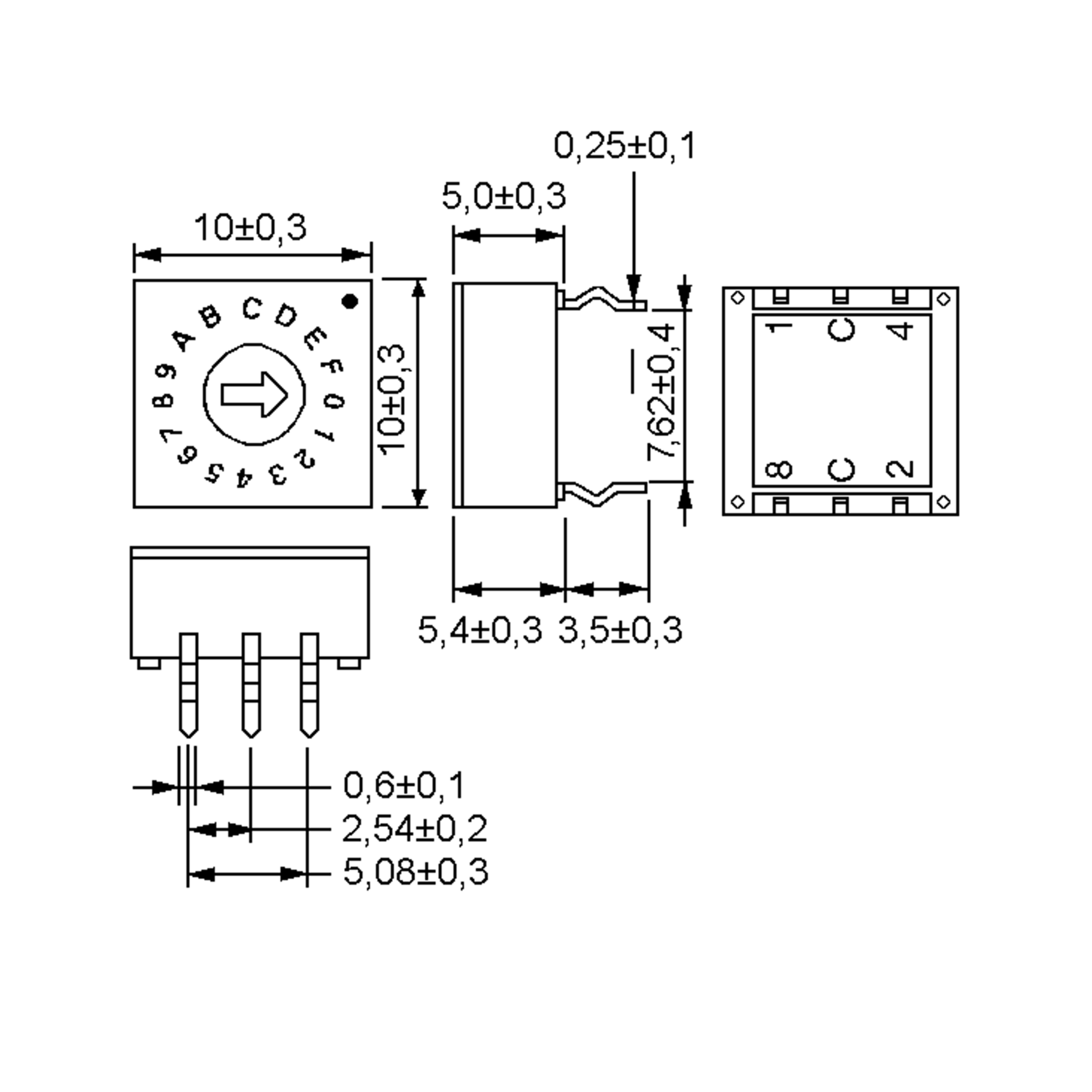

Dimensions and weights
- Dimension: Length
- 10 mm
- Dimension: Width
- 10 mm
- Dimension: Height
- 5.4 mm
- Pitch
- 2.54 mm
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 85 °C
Technical features
- Dielectric Strength
- 250 V AC
- Mechanical service life
- 10^4 Betätigungen
- Switching current, max.
- 0.1 A
- Contact resistance, max.
- 100 mOhm
- Insulation resistance, min.
- 1,000 MOhm
- Material: Terminals
- gold plated
Mechanical properties
- Number of switch positions
- 16
