ELK632

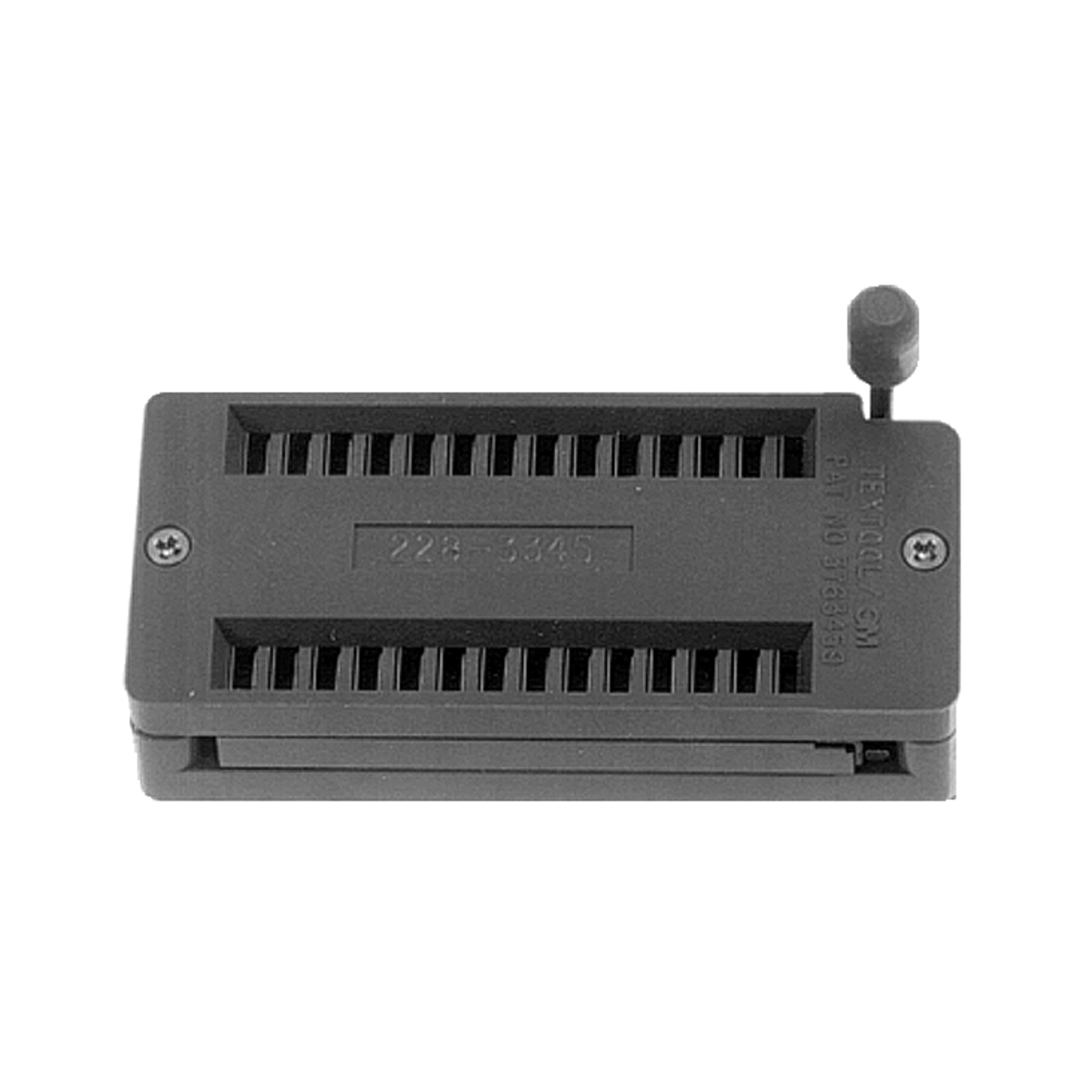

ECE Test socket ELK 2-row 32 Pole Pitch2,54mm Solder 15,24mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
20 Pcs. in stock
Next Stock Receipt
Week 26/2026
27 Pcs.
27 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 9 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Test socket
- Connector Contact
- Solder
- Series
- ELK
- Housing
- 2-row
- Insulating body
- Plastic
- Number of poles
- 32
- Pitch
- 2.54 mm
- Class of Inflammability
- UL 94 V-0
- Alignment
- vertical
- Operating Temperature Max.
- 70 °C
- Rated current
- 0.1 A
- Rated voltage DC
- 50 V DC
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all

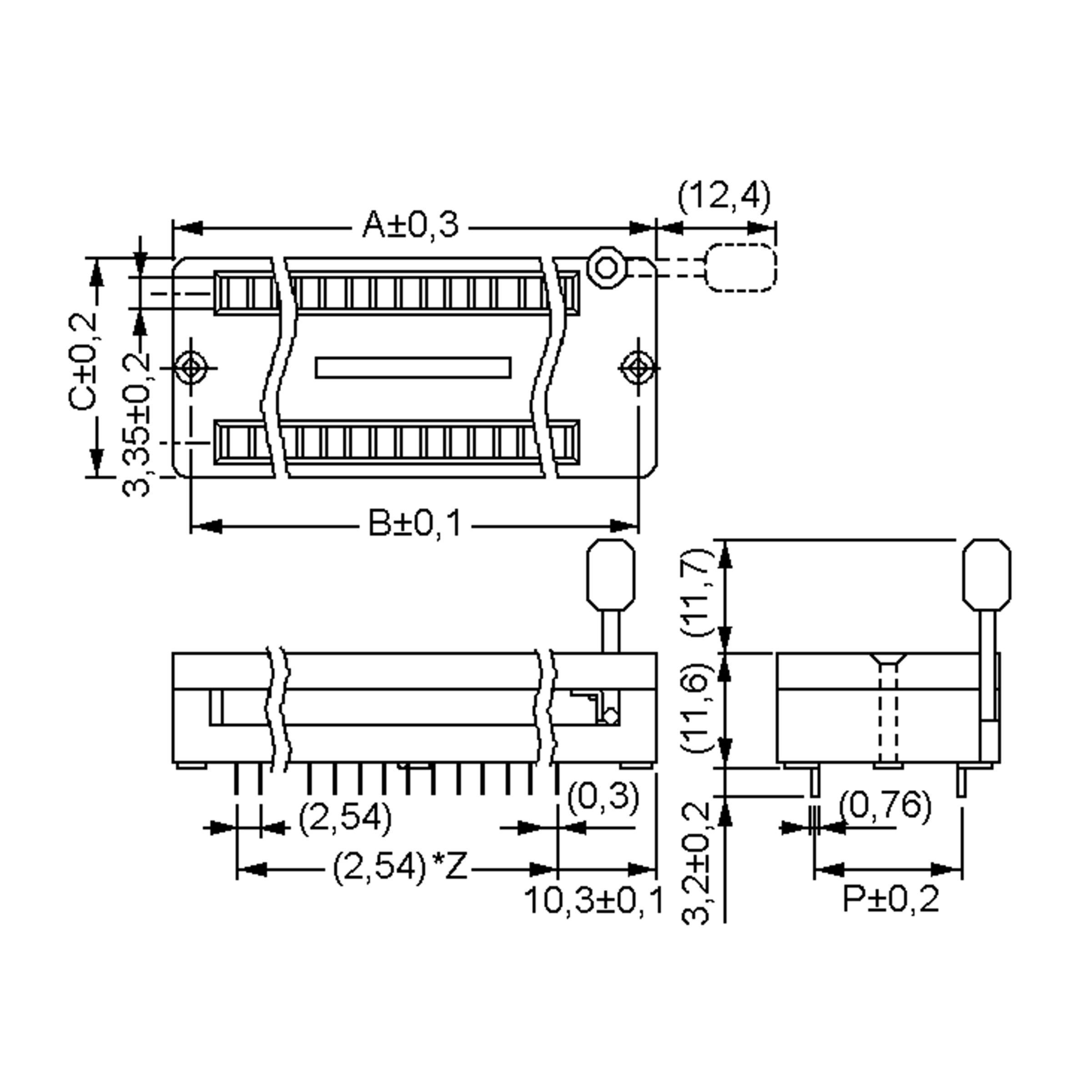

Dimensions and Weights
- Dimension: Length
- 55.5 mm
- Dimension: Width
- 22.9 mm
- Dimension: Height
- 11.6 mm
- Pitch
- 2.54 mm
- Row spacing
- 15.24 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Rated current
- 0.1 A
- Rated voltage DC
- 50 V DC
- Breakdown voltage
- 500 V RMS / min.
- Solderability
- 230 °C / 5 s °C / s
- Insulation resistance
- 100 x 10^6 mOhm
- Contact resistance
- 10 mOhm
Mechanical Features
- Insulating body
- Plastic
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
