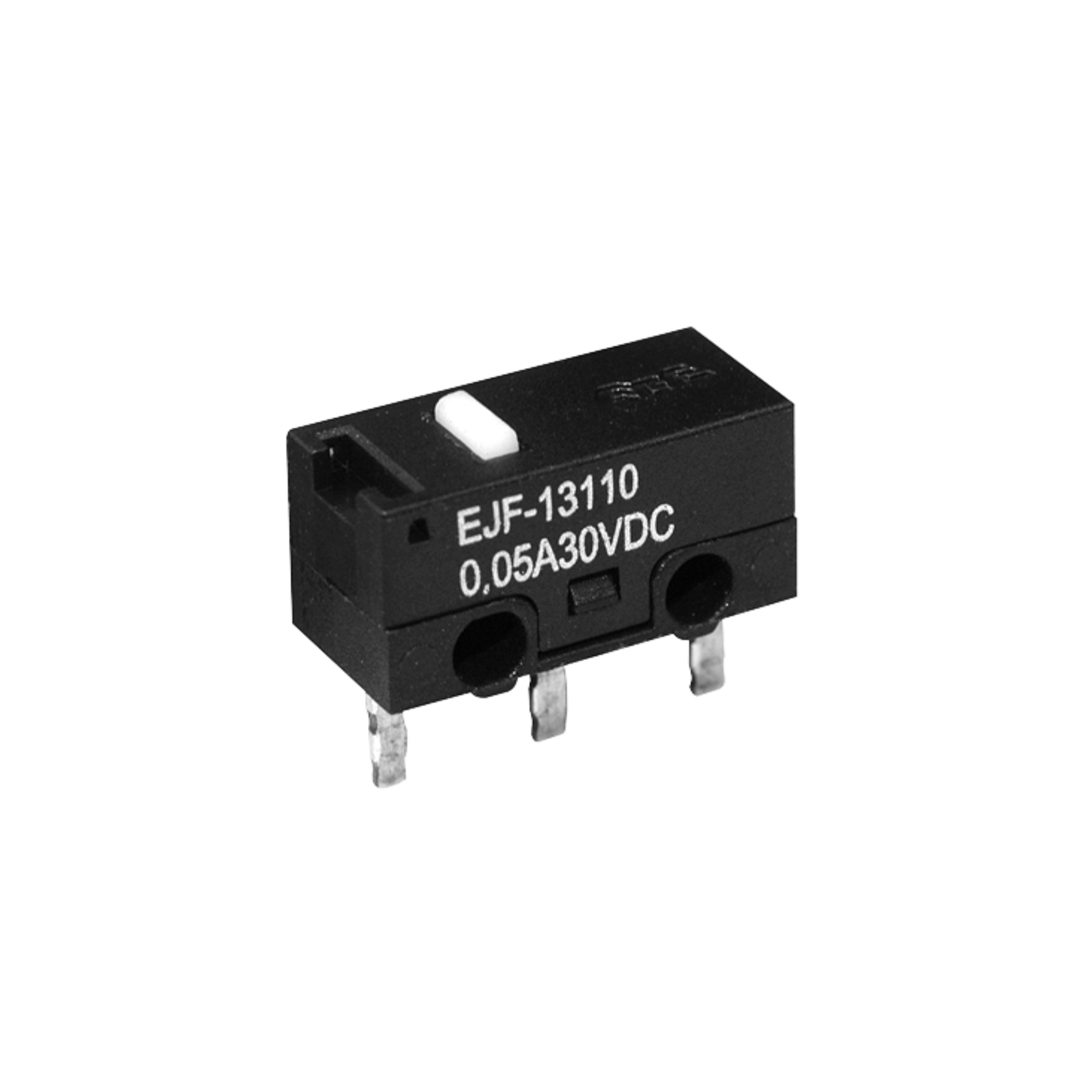

EJF13110
ECE Micro Switches EJF 1xCO Plunger RM5,08mm 30VDC 0,05A 0,05N
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
60 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Micro Switches
- Series
- EJF
- contacts
- 1xCO
- Pitch
- 5.08 mm
- Type of actuator
- Plunger
- Function
- 1xCO
- Number of poles
- 1
- illumination
- unlit
- Switching current, max.
- 0.05 A
- Actuating force, max.
- 0,05 N
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 65 °C
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Pitch
- 5.08 mm
Operating conditions
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 65 °C
- Air humidity
- 85 %
Technical features
- Switching voltage
- 30 V DC
- Dielectric Strength
- 1.000 V AC
- Mechanical service life
- 10 x 10^5 Betätigungen
- Service life, electrical
- 30 x 10^3 Betätigungen
- Switching current, max.
- 0.05 A
- Contact resistance, max.
- 100 mOhm
- Insulation resistance, min.
- 100 MOhm
- Vibration resistance (10...55Hz)
- 1.5 mm Amplitude
Mechanical properties
- Connection
- Solder pin
- Actuating force, max.
- 0,05 N
- Number of poles
- 1
