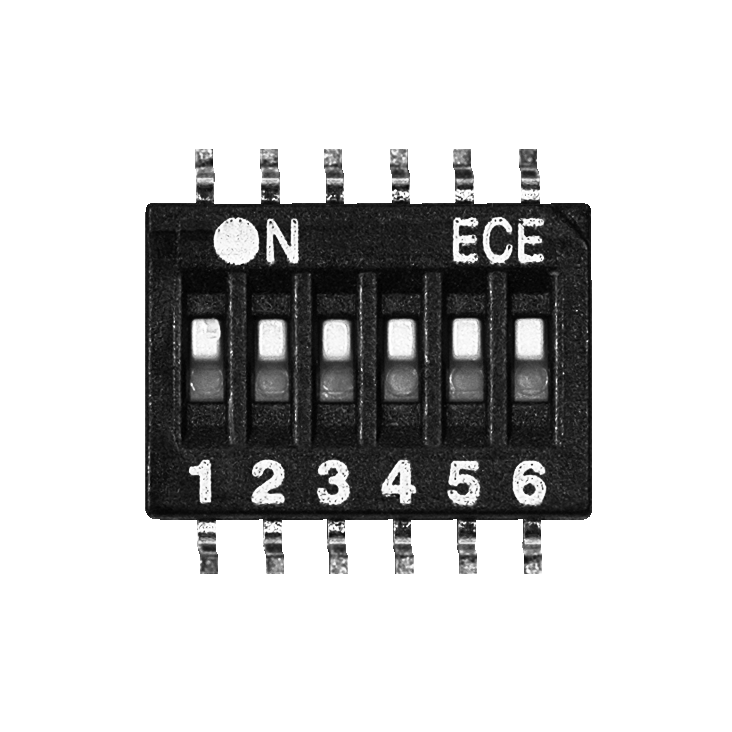

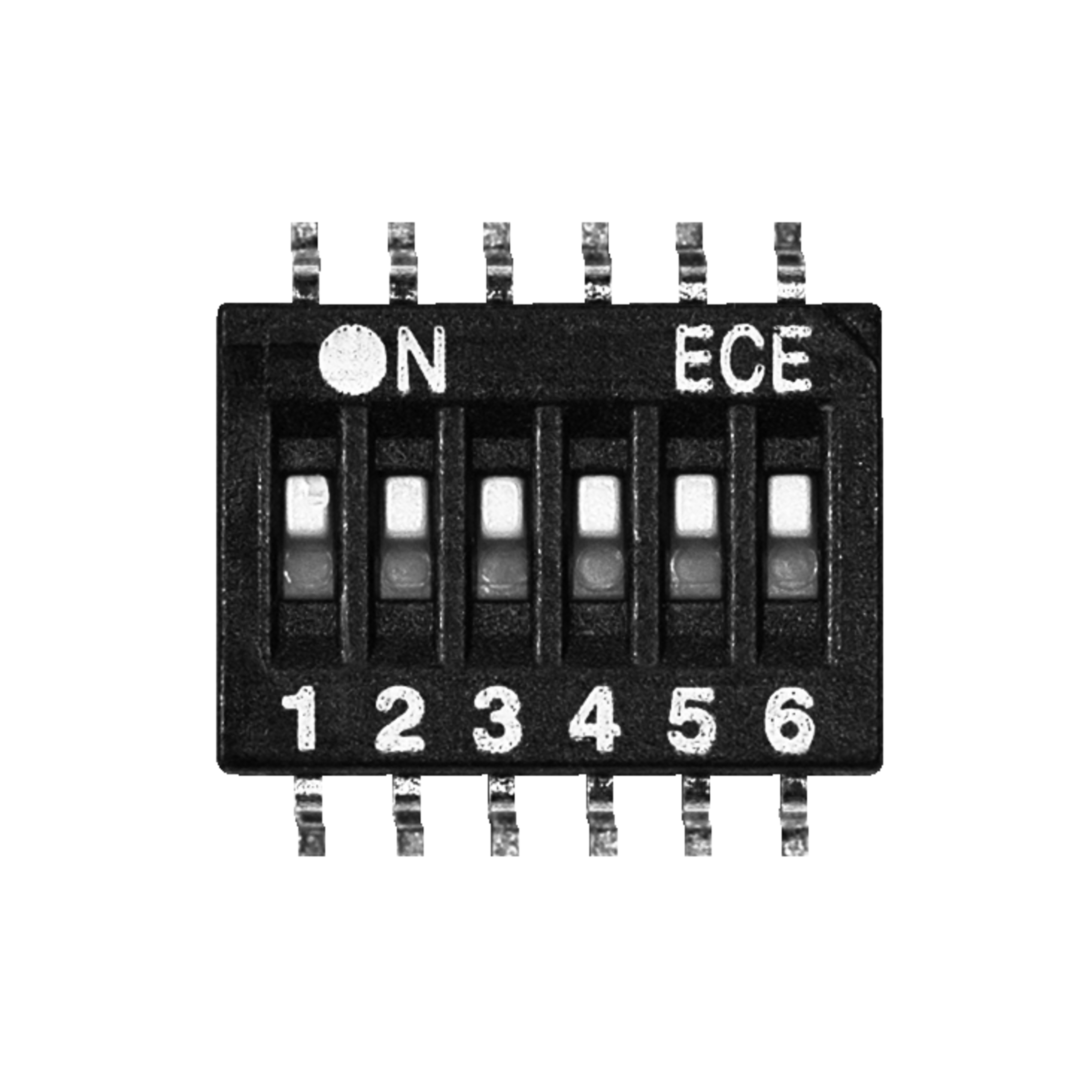

EHS104LT
ECE DIP/DIL/Rotary Coded Switches EHS Standard-SMD RM1,27mm 4 Switch position 4 Pol(e)
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
21 Pcs.
21 Pcs.
Next Stock Receipt
Week 02/2025
2.016 Pcs.
2.016 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 42 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 21 or multiple of 21)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- DIP/DIL/Rotary Coded Switches
- Series
- EHS
- Body colour
- black
- Type ( axial, radial )
- Standard-SMD
- Pitch
- 1.27 mm
- Type of actuator
- Lever
- Number of switch positions
- 4
- Actuator colour
- white
- Number of poles
- 4
- illumination
- unlit
- Switching current, max.
- 0.1 A
- Actuating force, max.
- 800 g
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 70 °C
- Flammability
- UL94V-0
- RoHS-Conform
Specifications
Open all

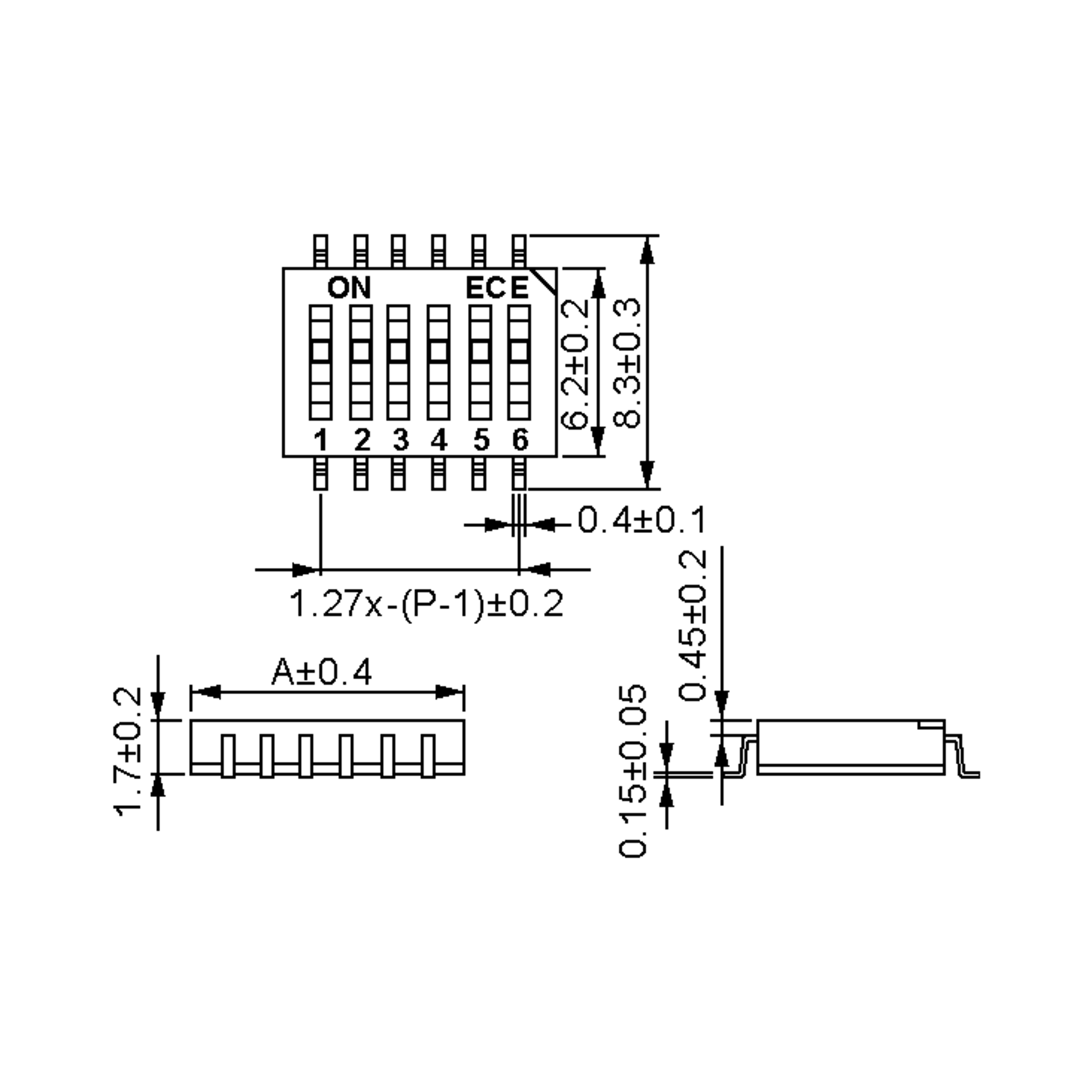

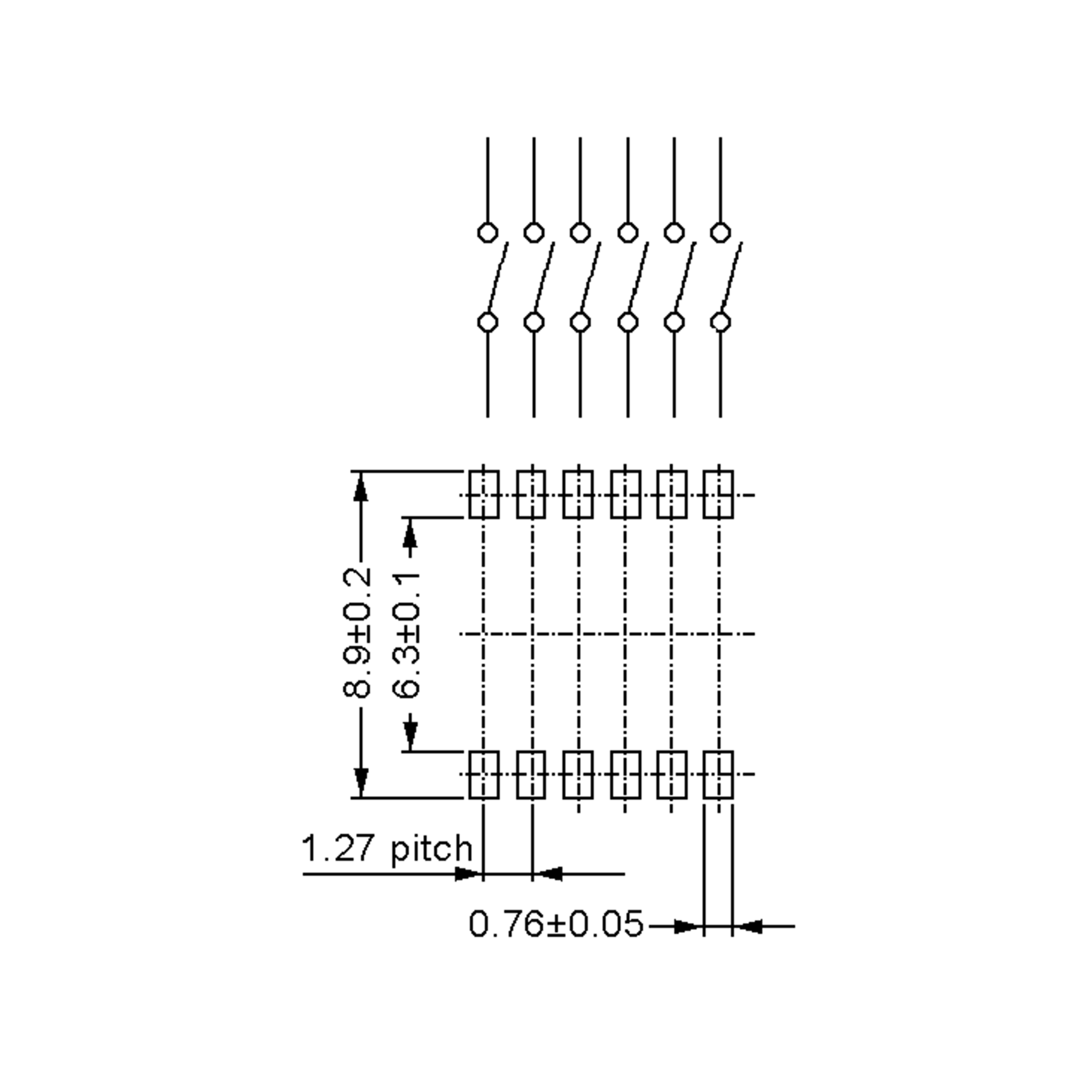

Dimensions and weights
- Dimension: Length
- 6.2 mm
- Dimension: Width
- 6.2 mm
- Dimension: Height
- 1.7 mm
- Pitch
- 1.27 mm
Operating conditions
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 70 °C
- Air humidity
- 95 %, 40 °C / 96 h
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 85 °C
Technical features
- Dielectric Strength
- 300 V DC
- Switching current, max.
- 0.1 A
- Contact resistance, max.
- 100 mOhm
- Insulation resistance, min.
- 500 MOhm
- Capacity
- 5 pF
Mechanical properties
- Connection
- SMD
- Actuating force, max.
- 800 g
- Number of switch positions
- 4
- Number of poles
- 4
Safety/Certifications
- Flammability
- UL94V-0
