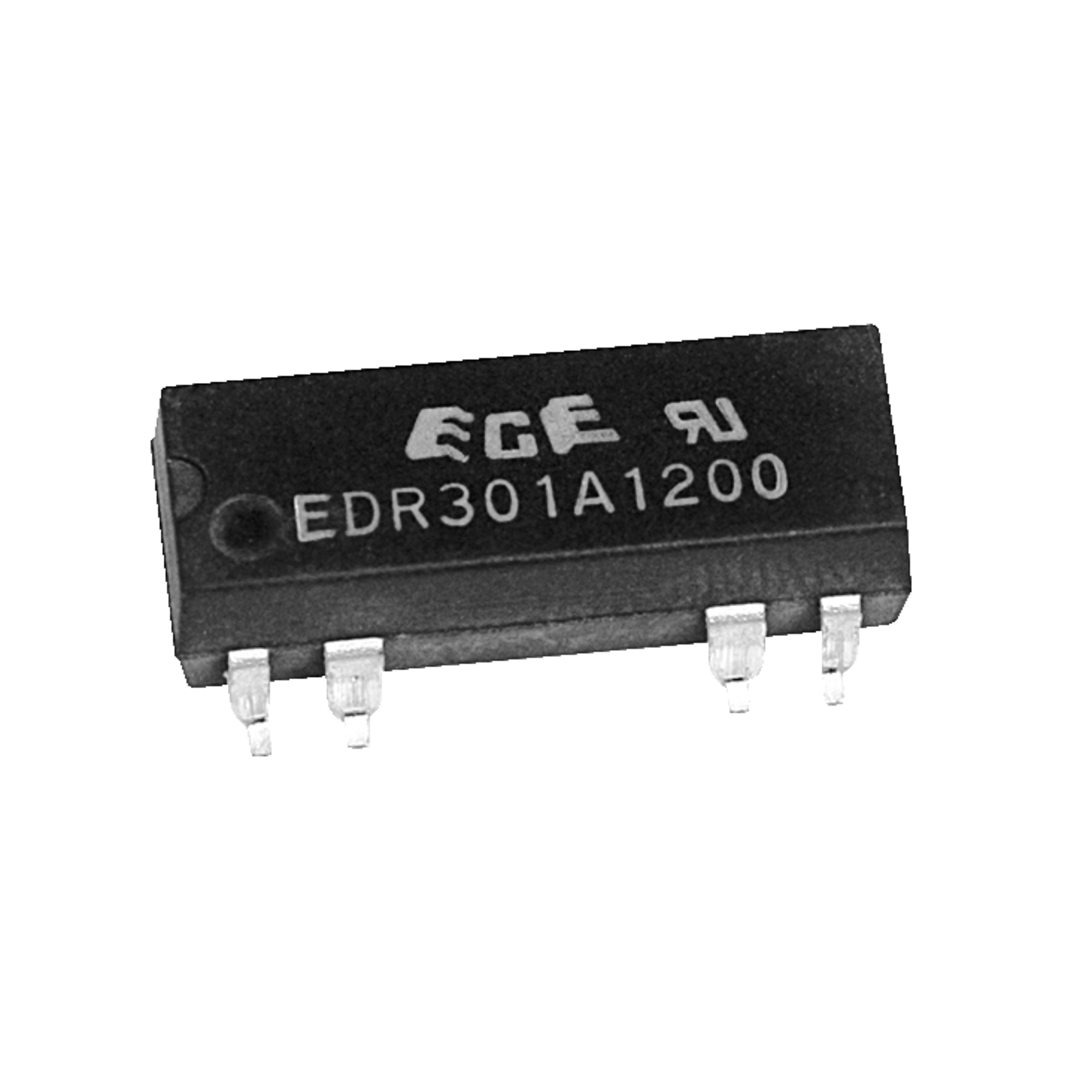

EDR301A1200Z
ECE Reed relay EDR3 SMD SPST-NO 0,5A 12VDC 1.000Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
306 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 27 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 9 or multiple of 9)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Reed relay
- Series
- EDR3
- Rated voltage DC
- 12 V DC
- Switching current
- 0.5 A

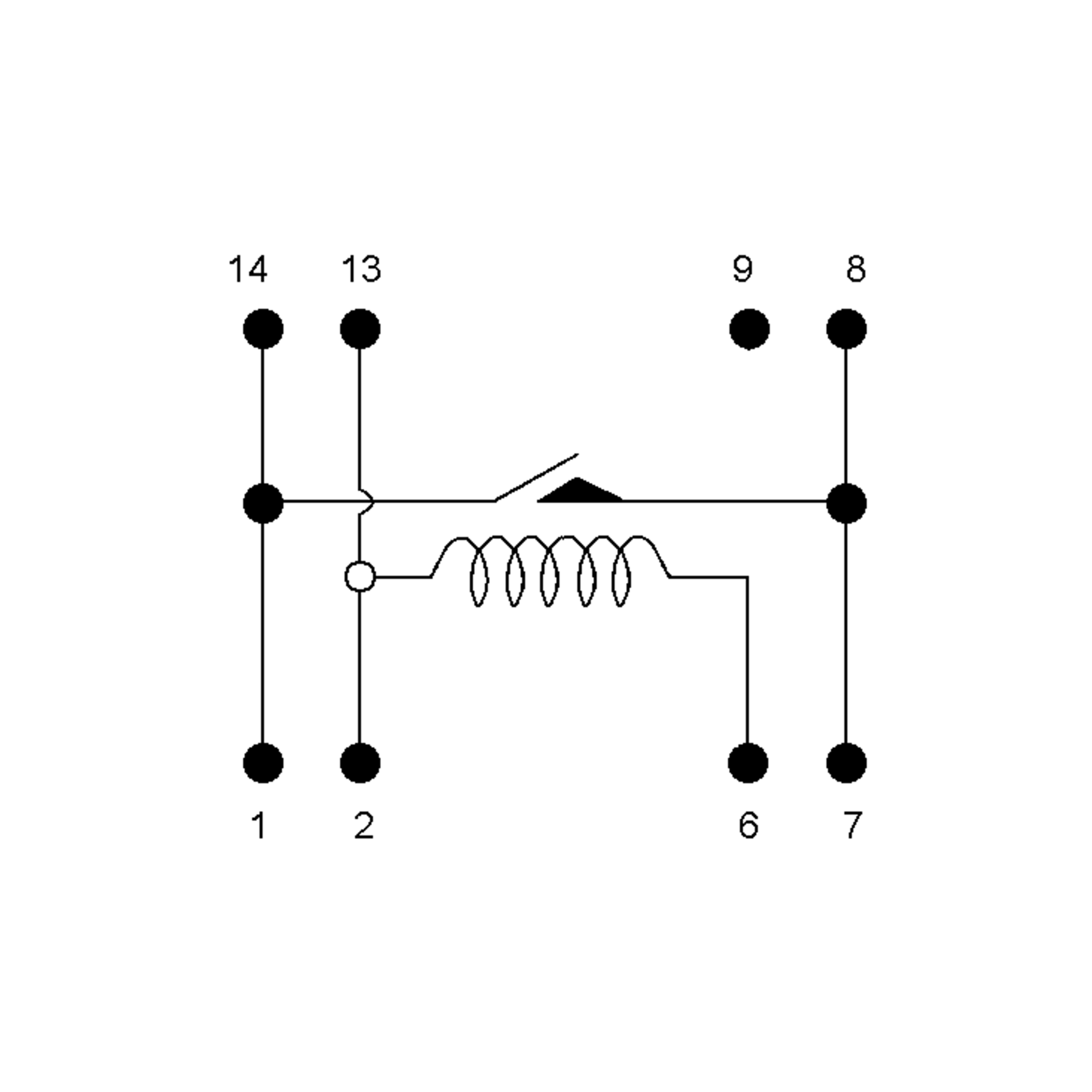

- contacts
- SPST-NO
- Coil resistance
- 1,000 Ohm
- Dimension: Length
- 19.9 mm
- Dimension: Width
- 6.9 mm
- Dimension: Height
- 5.5 mm
- RoHS-Conform
Specifications
Open all

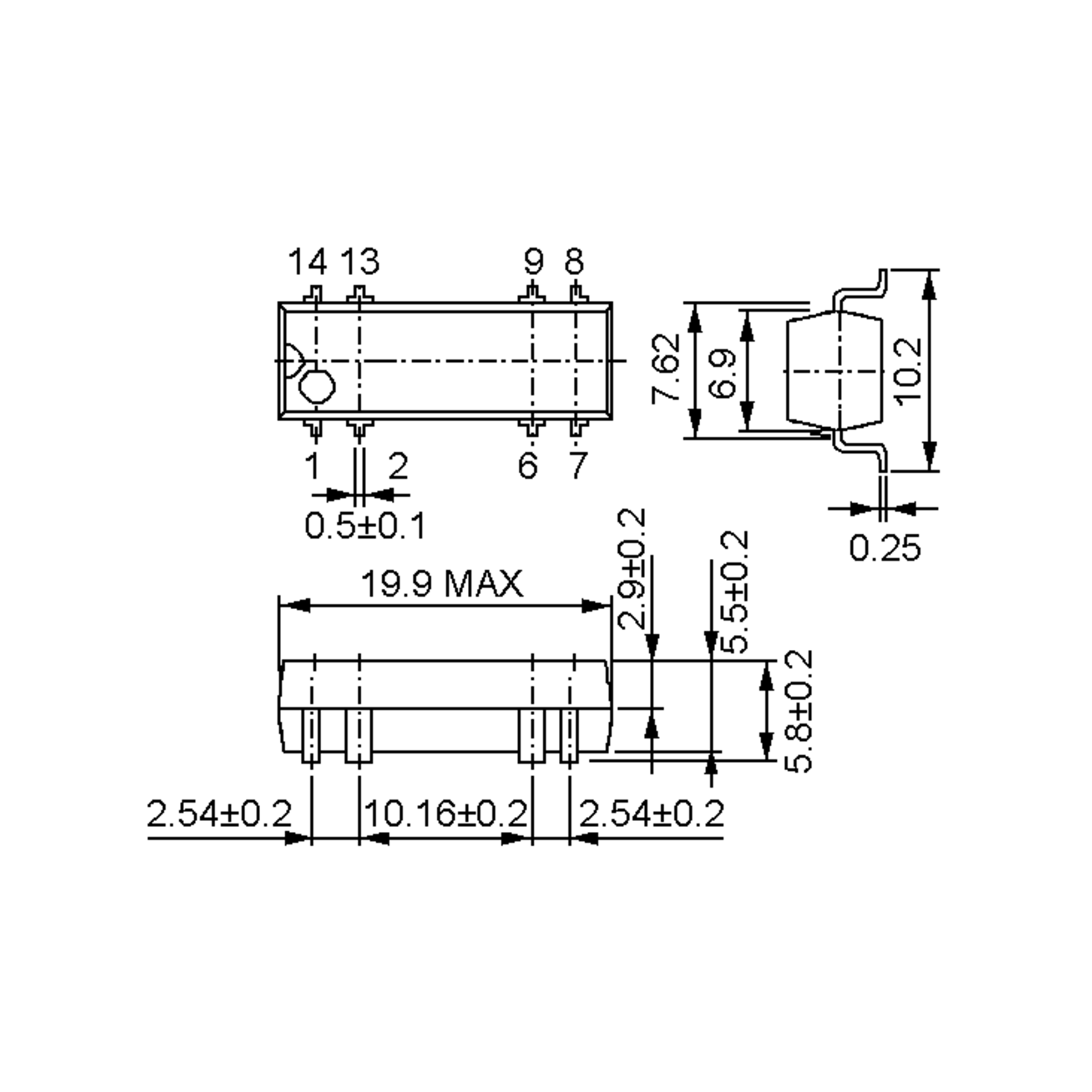

Dimensions and weights
- Dimension: Length
- 19.9 mm
- Dimension: Width
- 6.9 mm
- Dimension: Height
- 5.5 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 12 V DC
- Switching voltage, max. DC
- 100 V DC
- Response voltage
- 9 V
- Drop-out voltage
- 1 V
- Switching current
- 0.5 A
- Transport Current
- 1 A
- Rated power
- 144 mW
- Switching capacity (VA)
- 10 VA
- Switching capacity (W)
- 10 W
- Coil resistance
- 1,000 Ohm
- Contact resistance
- 150 mOhm
- Insulation resistance
- 10^10 Ohm
- Response time
- 1 ms
- Drop-out time
- 0.5 ms
- Vibration resistance
- 30 G
Safety/Certifications
- Approvals
- cULus
