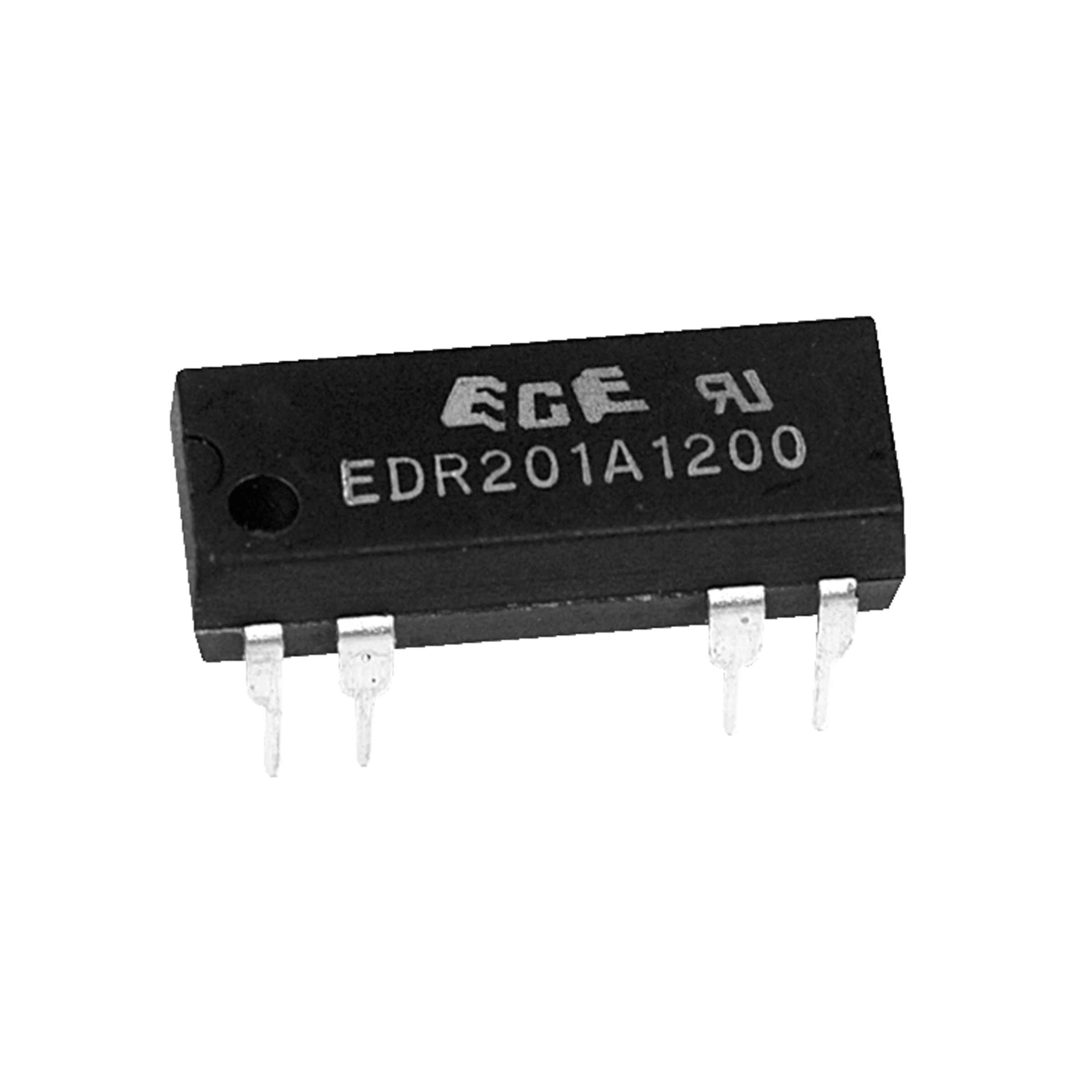

EDR201A0500Z
ECE THT Reed relay DIP DIL Series EDR2 SPST-NO 5VDC 0,5A 500Ohm Solder connection
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
396 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 27 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 9 or multiple of 9)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- EDR2
- Termination Style
- Solder connection
- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 0.5 A
- Coil: Nominal Voltage DC
- 5 V DC
- Coil resistance
- 500 Ohm
- RoHS-Conform

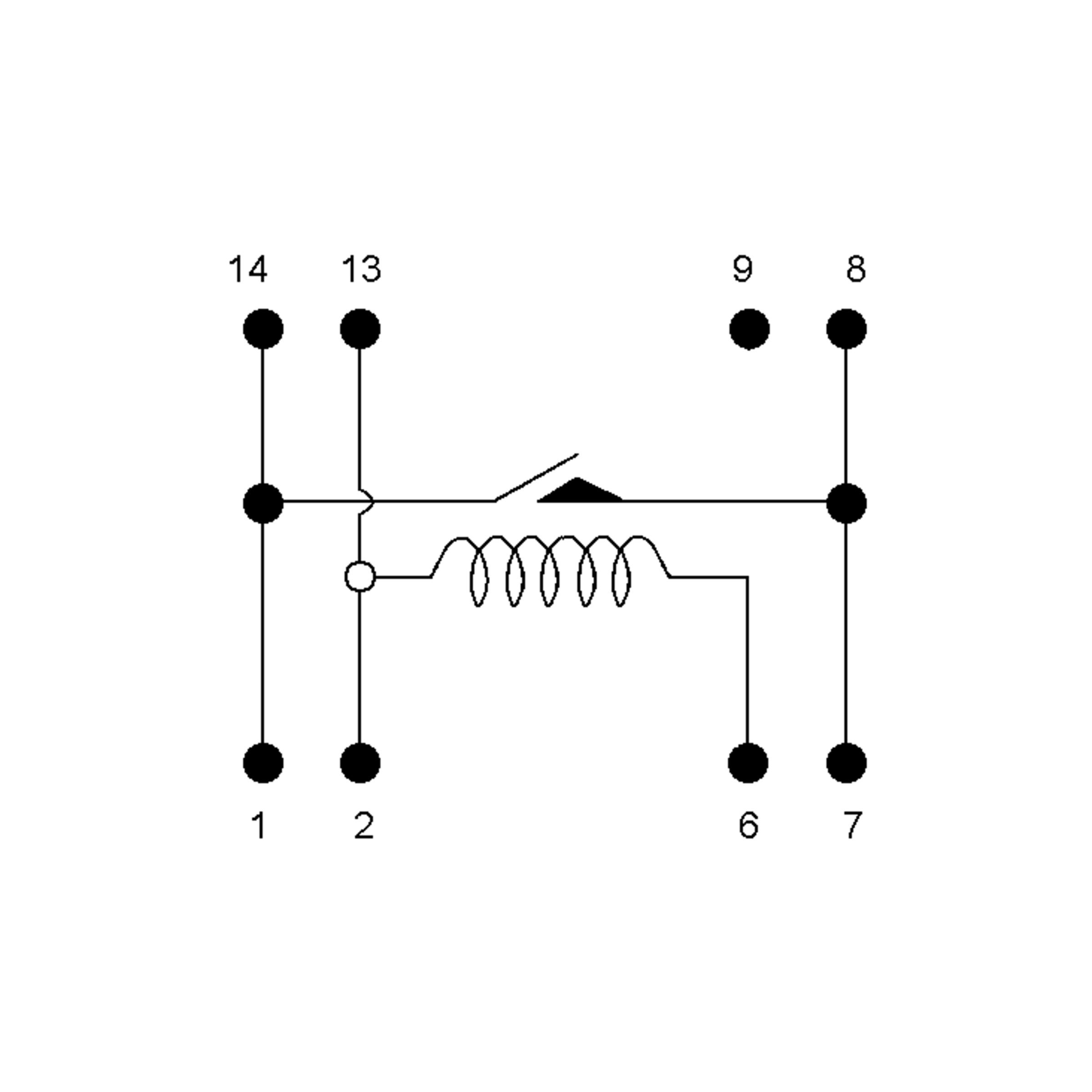

Specifications
Open all

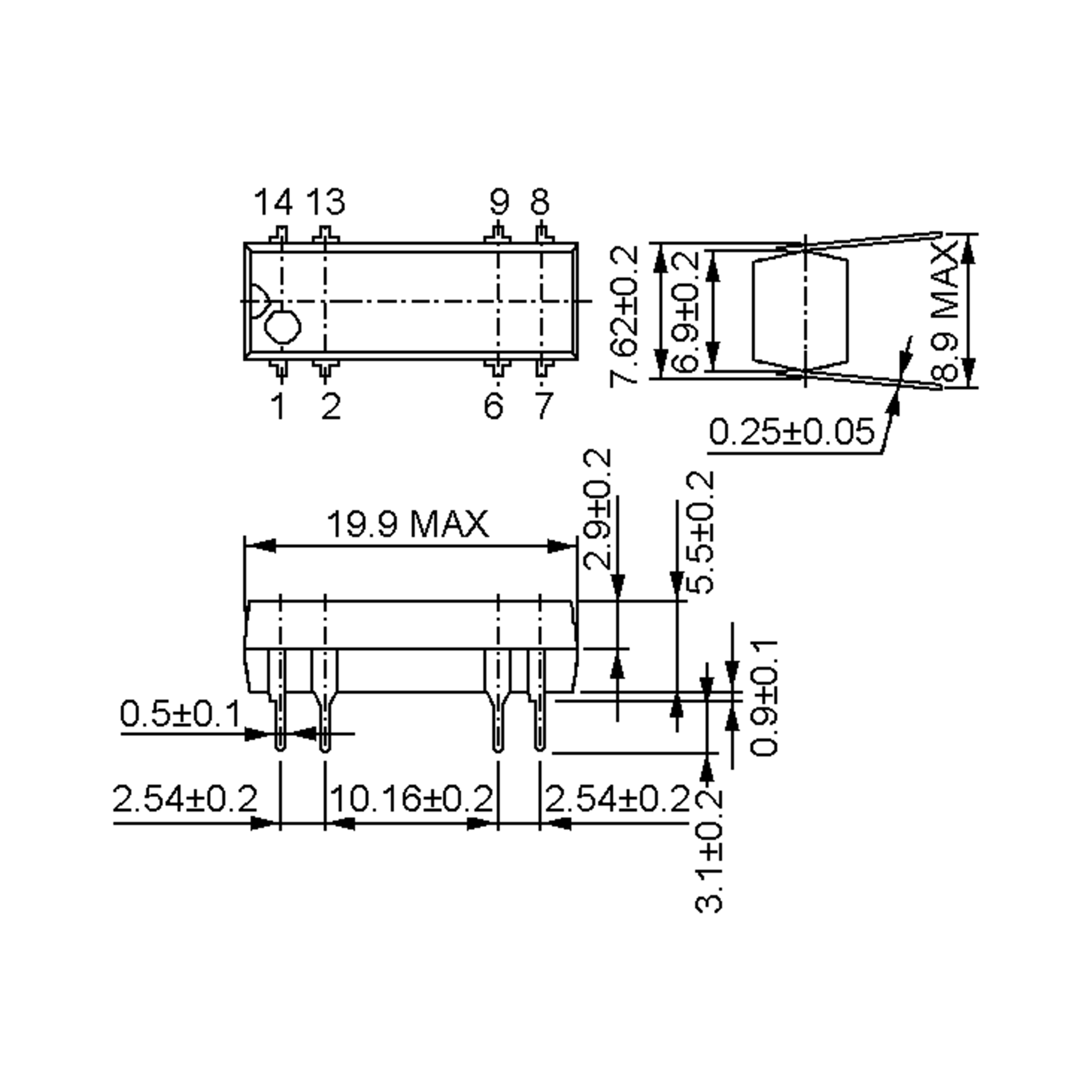

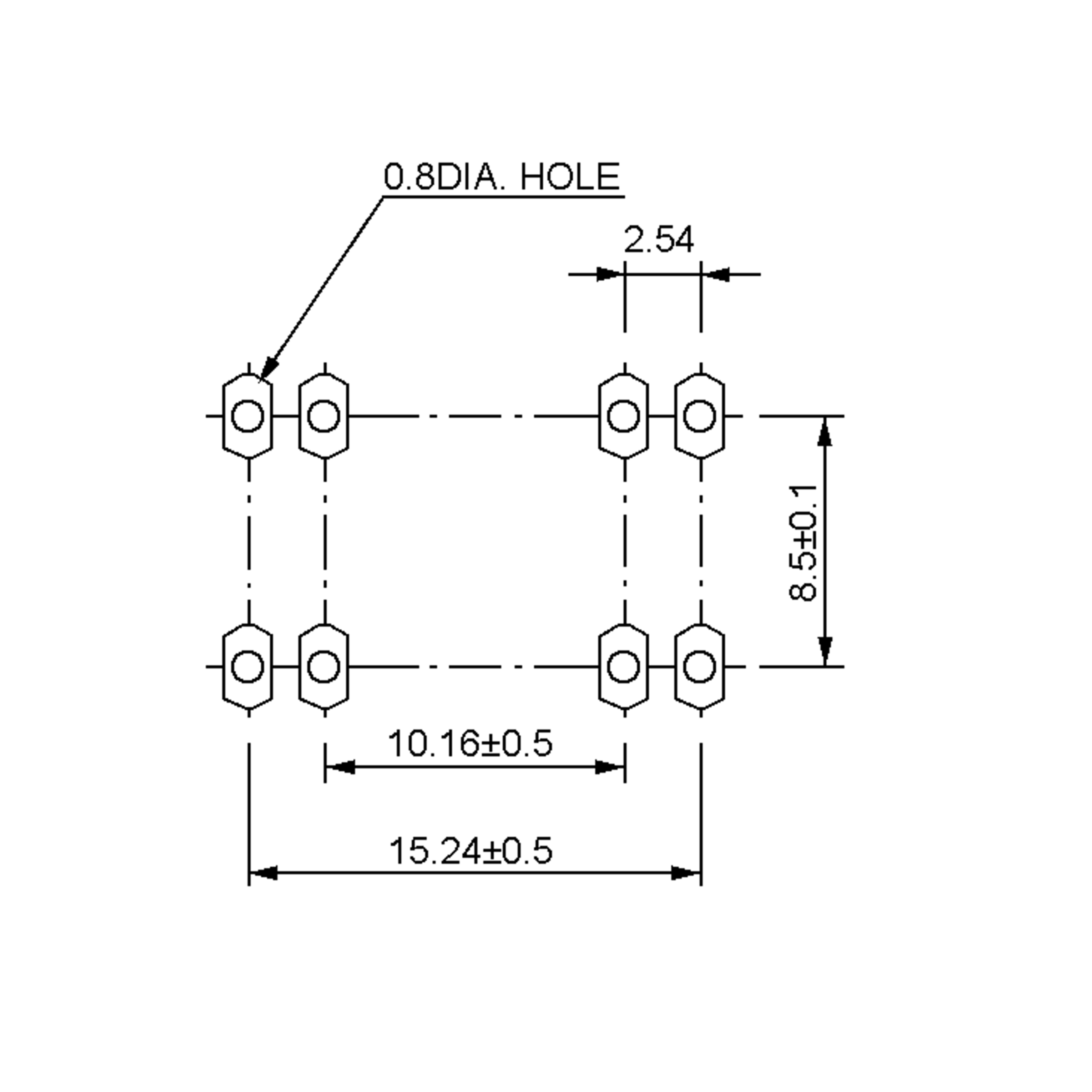

Dimensions and Weights
- Dimension: Length
- 19.9 mm
- Dimension: Width
- 7.62 mm
- Dimension: Height
- 5.5 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 0.5 A
- Contact: Switching Voltage, max. DC
- 100 V DC
- Contact: Carry Current
- 1 A
- Contact: Switching Capacity (VA)
- 10 VA
- Contact: Switching Load (W)
- 10 W
- Contact resistance
- 150 mOhm
- Coil design
- monostable
- non-polarized
- Coil resistance
- 500 Ohm
- Inductor power
- 50 mW
- Coil: Nominal Voltage DC
- 5 V DC
- Coil: Operating Voltage, max.
- 15 V
- Coil: Pick-up voltage
- 3.75 V
- Coil: Drop-out Voltage
- 0.8 V
- Test voltage contact/contact
- 250 V AC
- Test voltage coil/contact
- 1,400 V AC
- Response time
- 1 ms
- Drop-out time
- 0.5 ms
- Insulation resistance
- 10^10 Ohm
- Vibration resistance
- 30 g
Safety/Certifications
- Approvals
- cULus
