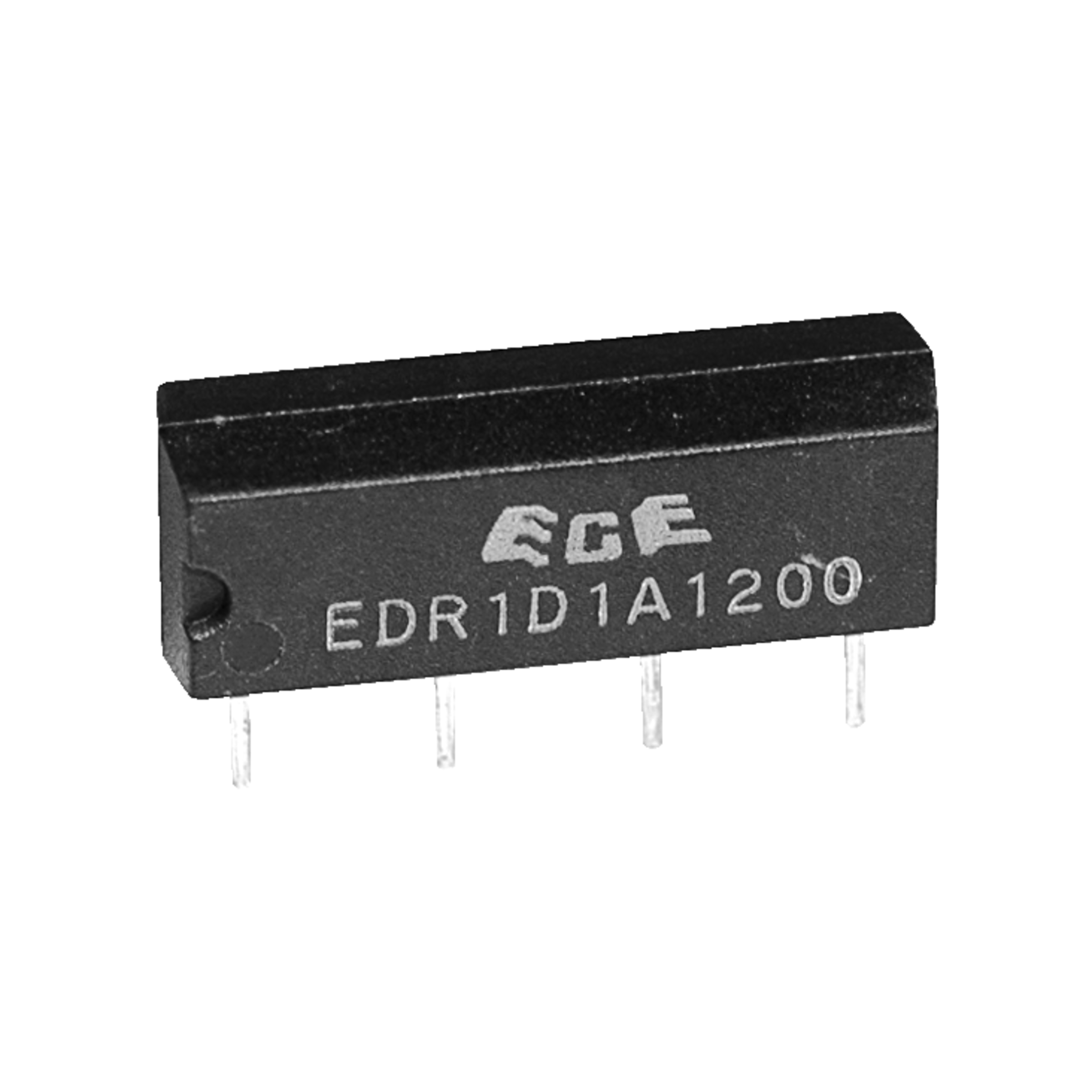

EDR1D1A1200Z
ECE Reed relay SIP SIL EDR THT SPST-NO 0,5A 12VDC 1.000Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
280 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 28 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 14 or multiple of 14)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Reed relay SIP SIL
- Series
- EDR
- Rated voltage DC
- 12 V DC
- Switching current
- 0.5 A
- contacts
- SPST-NO
- Coil resistance
- 1,000 Ohm
- Dimension: Length
- 19 mm
- Dimension: Width
- 5 mm
- Dimension: Height
- 7 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 19 mm
- Dimension: Width
- 5 mm
- Dimension: Height
- 7 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 12 V DC
- Coil design
- Switching voltage, max. DC
- 100 V DC
- Response voltage
- 9 V
- Drop-out voltage
- 1 V
- Switching current
- 0.5 A
- Transport Current
- 1 A
- Rated power
- 144 mW
- Switching capacity (VA)
- 10 VA
- Switching capacity (W)
- 10 W
- Coil resistance
- 1,000 Ohm
- Contact resistance
- 150 mOhm
- Insulation resistance
- 10^10 Ohm
- Response time
- 1 ms
- Drop-out time
- 0.5 ms
- Vibration resistance
- 30 G
Safety/Certifications
- Approvals
- cULus
