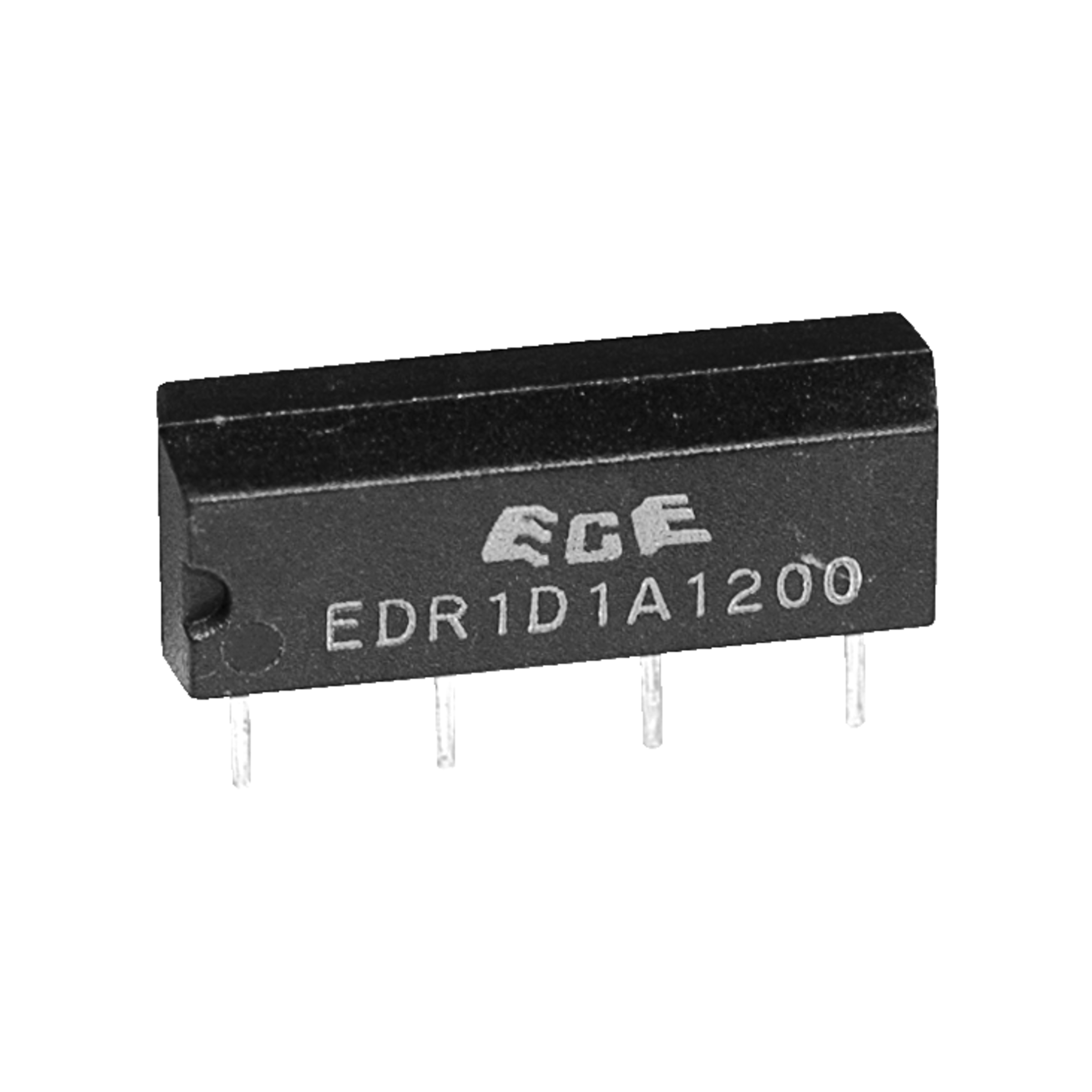

EDR1D1A0500Z
ECE THT Reed relay SIP SIL Series EDR SPST-NO SIP/SIL07 5VDC 0,5A 500Ohm with diode
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
252 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 28 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 14 or multiple of 14)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Termination Style
- with diode
- Series
- EDR
- Type
- Reed relay SIP SIL
- contacts
- SPST-NO
- Switching current
- 0.5 A
- Rated voltage DC
- 5 V DC
- Coil resistance
- 500 Ohm
- Dimension: Length
- 19 mm
- Dimension: Width
- 5 mm
- Dimension: Height
- 7 mm
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 19 mm
- Dimension: Width
- 5 mm
- Dimension: Height
- 7 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Rated voltage DC
- 5 V DC
- Coil design
- Switching voltage, max. DC
- 100 V DC
- Response voltage
- 3.75 V
- Drop-out voltage
- 0.8 V
- Switching current
- 0.5 A
- Transport Current
- 1 A
- Rated power
- 50 mW
- Switching capacity (VA)
- 10 VA
- Switching capacity (W)
- 10 W
- Coil resistance
- 500 Ohm
- Contact resistance
- 150 mOhm
- Insulation resistance
- 10^10 Ohm
- Response time
- 1 ms
- Drop-out time
- 0.5 ms
- Vibration resistance
- 30 G
Safety/Certifications
- Approvals
- cULus
