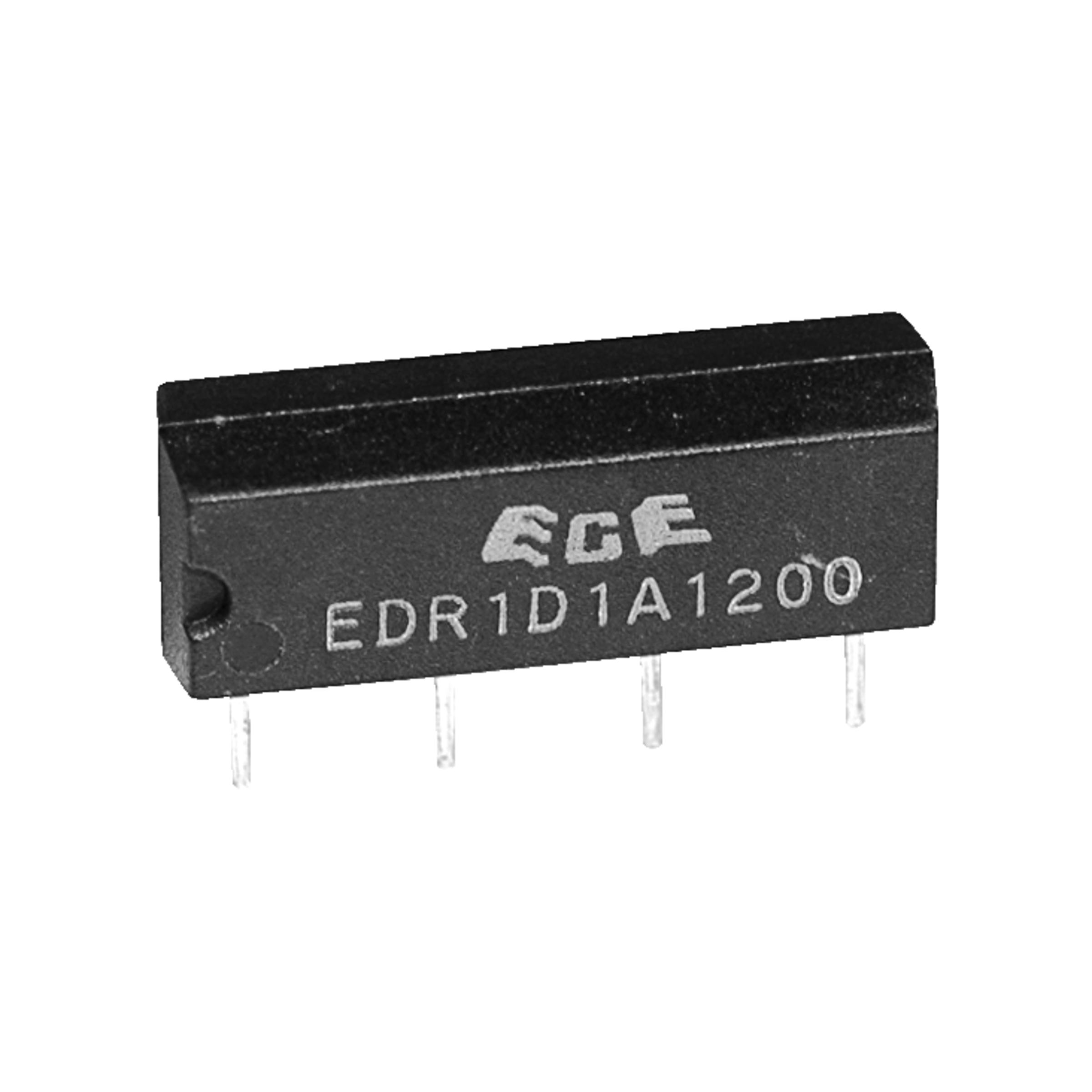

EDR101A1200Z
ECE THT Reed relay SIP SIL Series EDR1 SPST-NO SIP/SIL07 12VDC 0,5A 1.000Ohm Solder connection
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
294 Pcs. in stock
Next Stock Receipt
Week 39/2026
56 Pcs.
56 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 28 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 14 or multiple of 14)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- EDR1
- Termination Style
- Solder connection
- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 0.5 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 1,000 Ohm
- RoHS-Conform
Specifications
