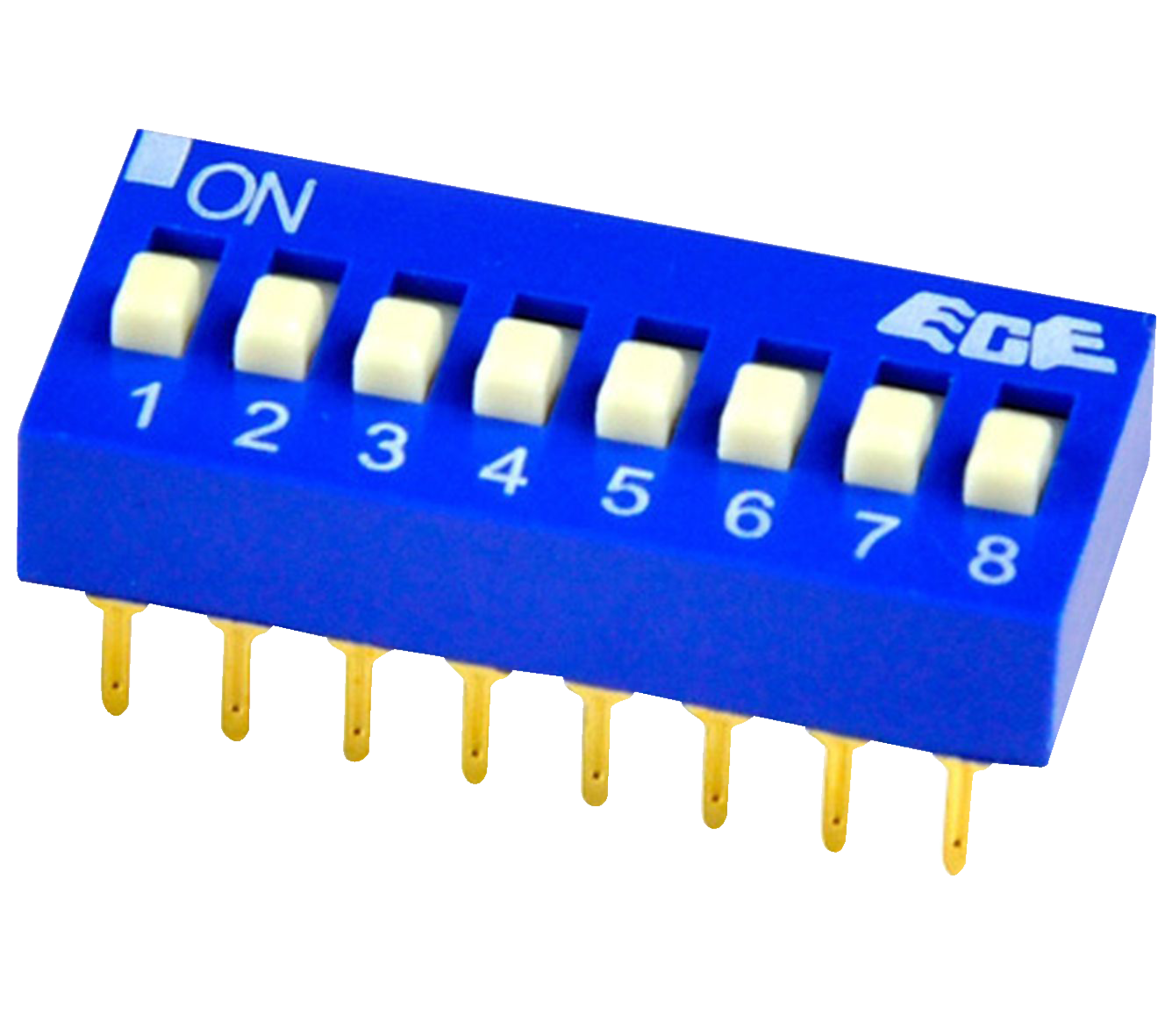

EDG110S
ECE DIP/DIL/Rotary Coded Switches EDG Standard RM2,54mm 10 Switch position 10 Pol(e)
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
19 Pcs.
19 Pcs.
Next Stock Receipt
Week 05/2025
1.007 Pcs.
1.007 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 19 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 19 or multiple of 19)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- DIP/DIL/Rotary Coded Switches
- Series
- EDG
- Body colour
- blue
- Type ( axial, radial )
- Standard
- Pitch
- 2.54 mm
- Type of actuator
- Lever
- Number of switch positions
- 10
- Actuator colour
- white
- Number of poles
- 10
- illumination
- unlit
- Switching current, max.
- 0.1 A
- Actuating force, max.
- 800 g
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 70 °C
- Flammability
- UL94V-0
- RoHS-Conform
Specifications
Open all

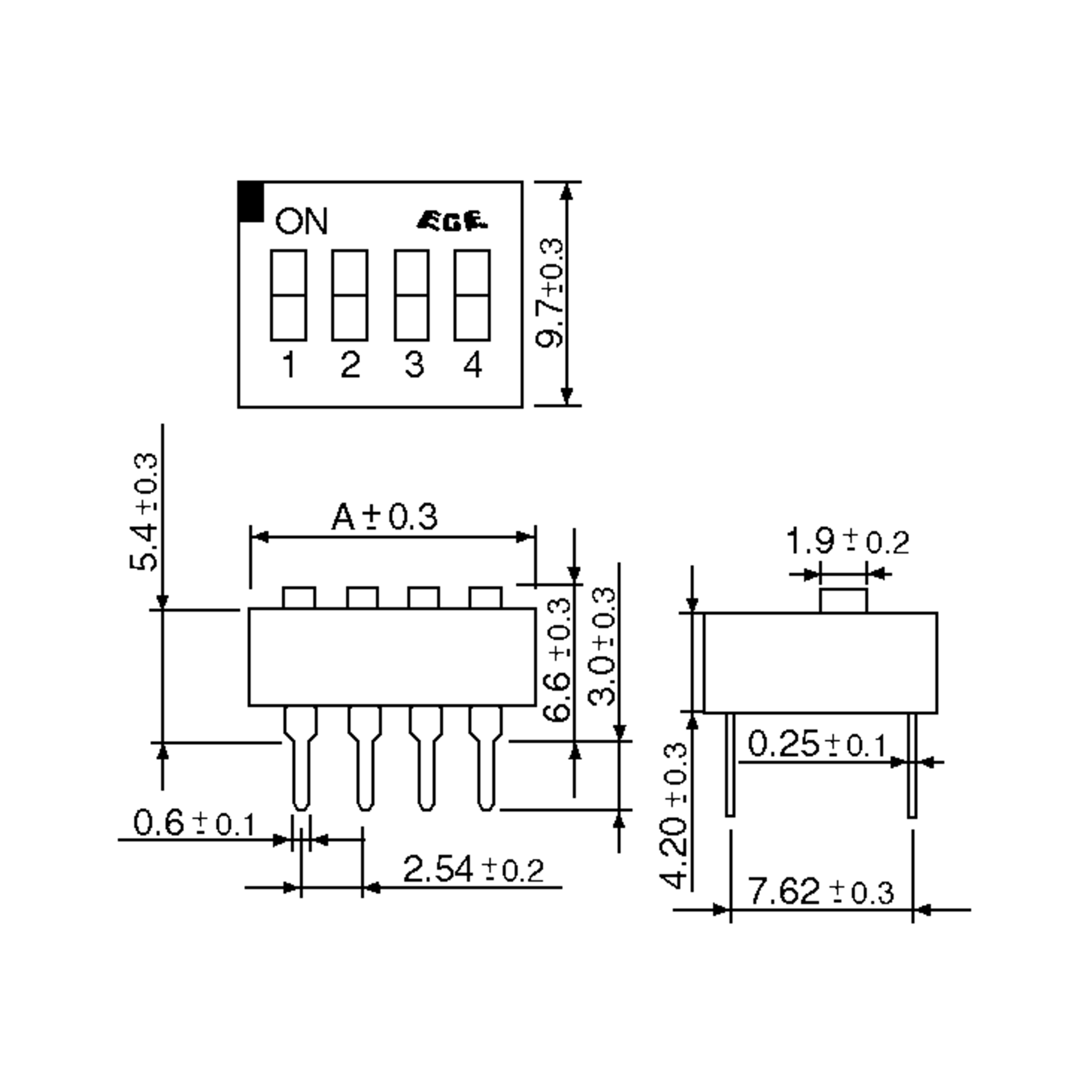

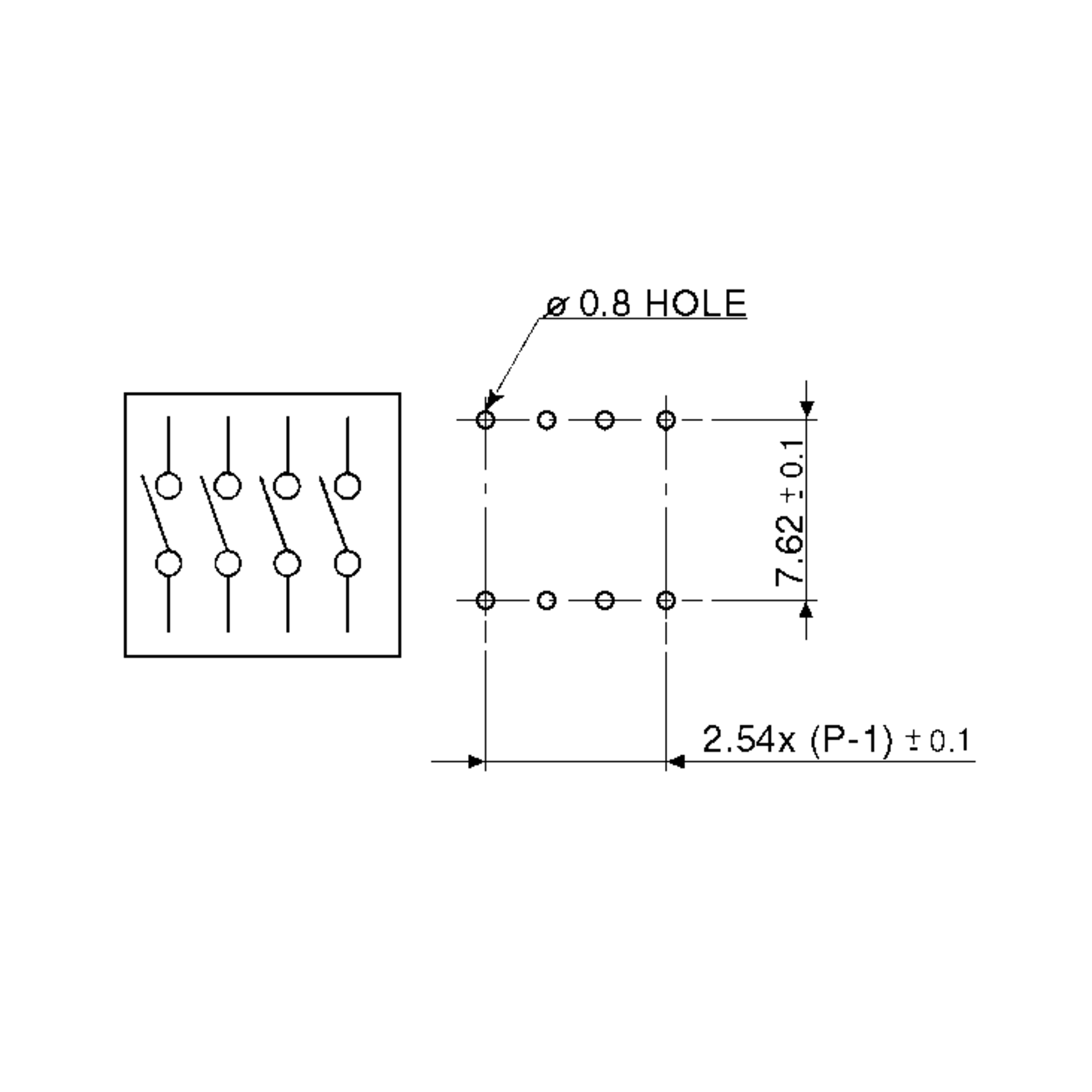

Dimensions and weights
- Dimension: Length
- 26.7 mm
- Dimension: Width
- 9.7 mm
- Dimension: Height
- 4.2 mm
- Pitch
- 2.54 mm
Operating conditions
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 70 °C
- Air humidity
- 95 %, 40 °C / 96 h
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 85 °C
Technical features
- Dielectric Strength
- 500 V DC
- Switching current, max.
- 0.1 A
- Insulation resistance, min.
- 1,000 MOhm
- Capacity
- 5 pF
- Material: Terminals
- gold plated
Mechanical properties
- Connection
- Solder pin
- Actuating force, max.
- 800 g
- Number of switch positions
- 10
- Number of poles
- 10
Safety/Certifications
- Flammability
- UL94V-0
