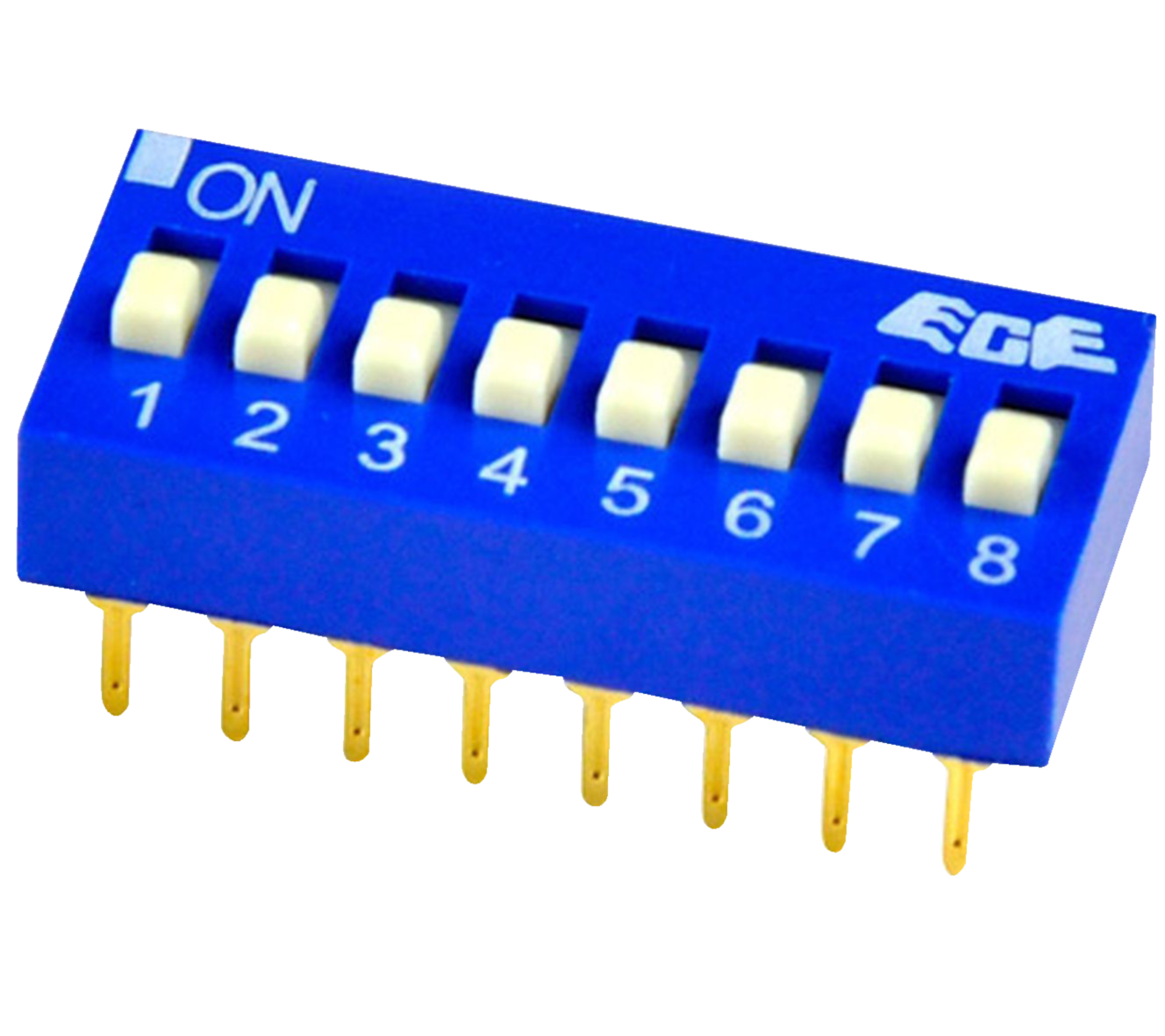

EDG104S
ECE DIP/DIL switches EDG THT RM2,54mm 4 Switch position 4 Pole
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Next Stock Receipt
Week 26/2026
3.916 Pcs.
3.916 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 44 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 44 or multiple of 44)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- DIP/DIL switches
- Series
- EDG
- Body colour
- blue
- Design
- THT
- Pitch
- 2.54 mm
- Type of actuator
- Lever
- Number of switch positions
- 4
- Actuator colour
- white
- Number of poles
- 4
- illumination
- unlit
- Switching current, max.
- 0.1 A
- Actuating force, max.
- 800 g
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- Flammability
- UL94V-0
- RoHS-Conform
Specifications
Open all

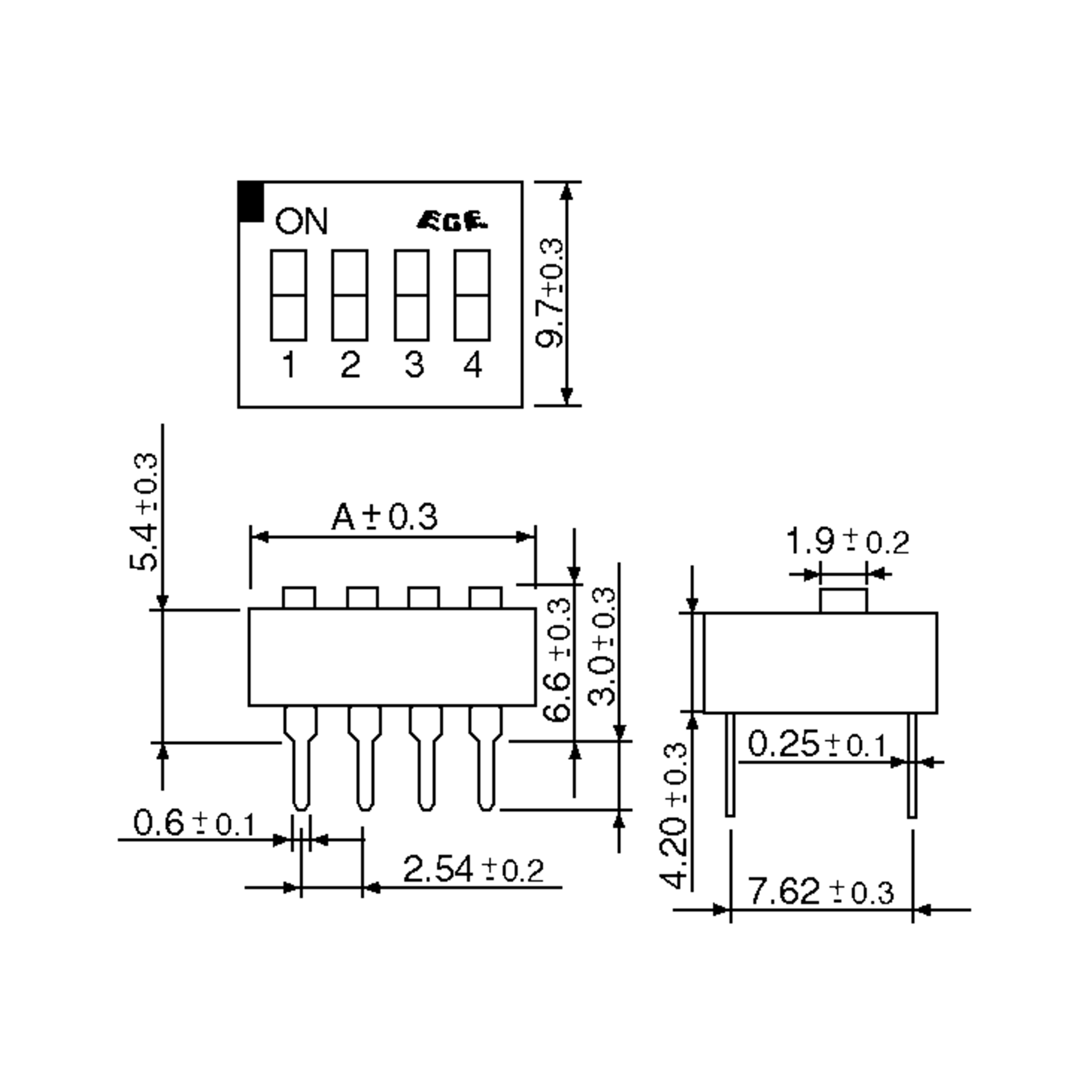

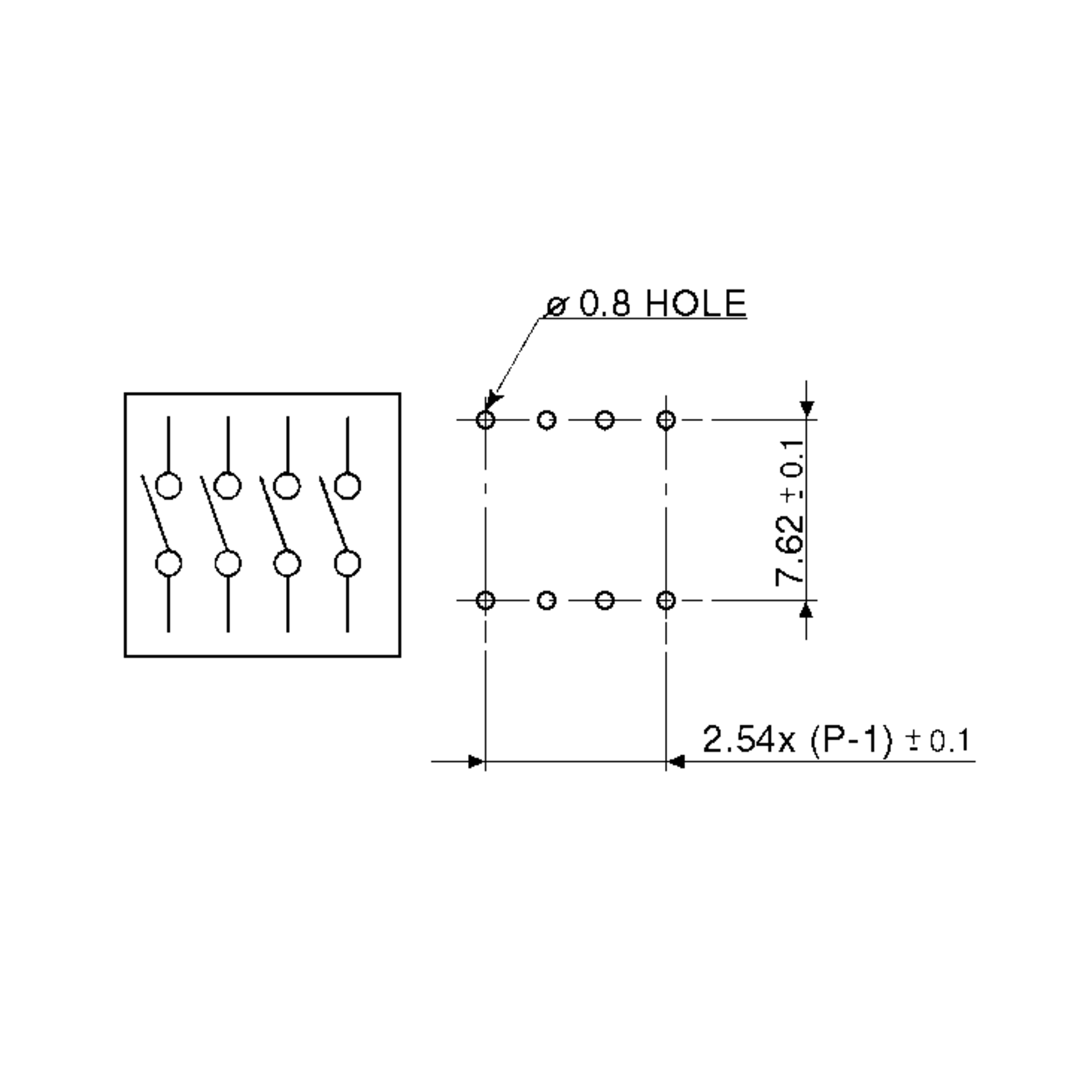

Dimensions and Weights
- Dimension: Length
- 11.7 mm
- Dimension: Width
- 9.7 mm
- Dimension: Height
- 4.2 mm
- Pitch
- 2.54 mm
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- Air humidity
- 95 %, 40 °C / 96 h
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 85 °C
Technical Features
- Dielectric Strength
- 500 V DC
- Switching current, max.
- 0.1 A
- Insulation resistance, min.
- 1,000 MOhm
- Capacity
- 5 pF
- Material: Terminals
- gold plated
Mechanical properties
- Connection
- Solder pin
- Actuating force, max.
- 800 g
- Number of switch positions
- 4
- Number of poles
- 4
Safety/Certifications
- Flammability
- UL94V-0
