3120-N524-P7T1-W02D-12A

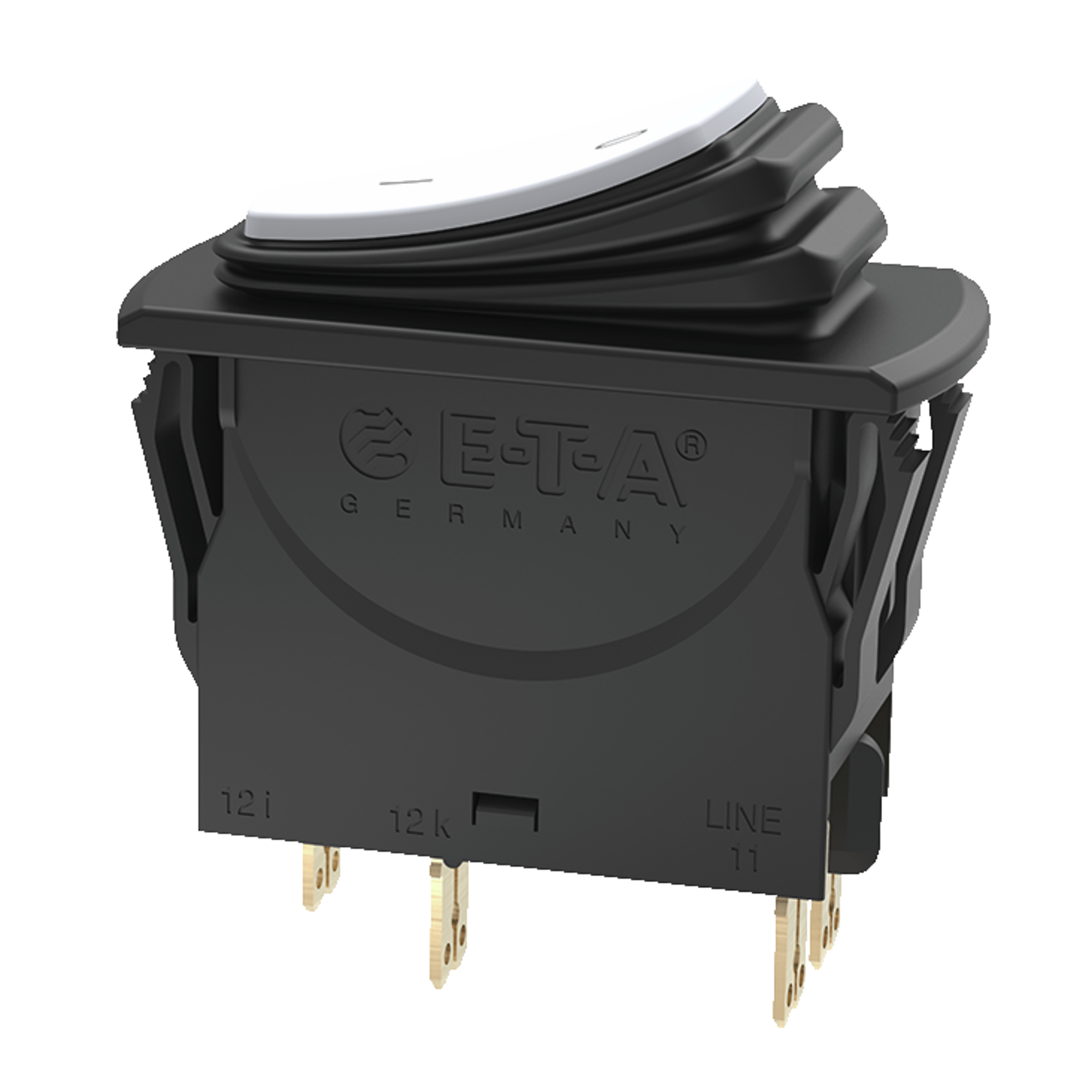

E-T-A Combi circuit breaker 3120-N With rocker switch 240VAC 50VDC 12A Snap-in IP65
Manufacturer Part No.
3120-N524-P7T1-W02D-12A
Schukat Part No.
3120-N524-W02D-12A
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
8 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- 3120-N
- Housing
- With rocker switch
- Rated voltage V AC
- 240 V AC
- Rated voltage V DC
- 50 V DC
- Rated current
- 12 A
- RoHS-Conform
Specifications
Open all

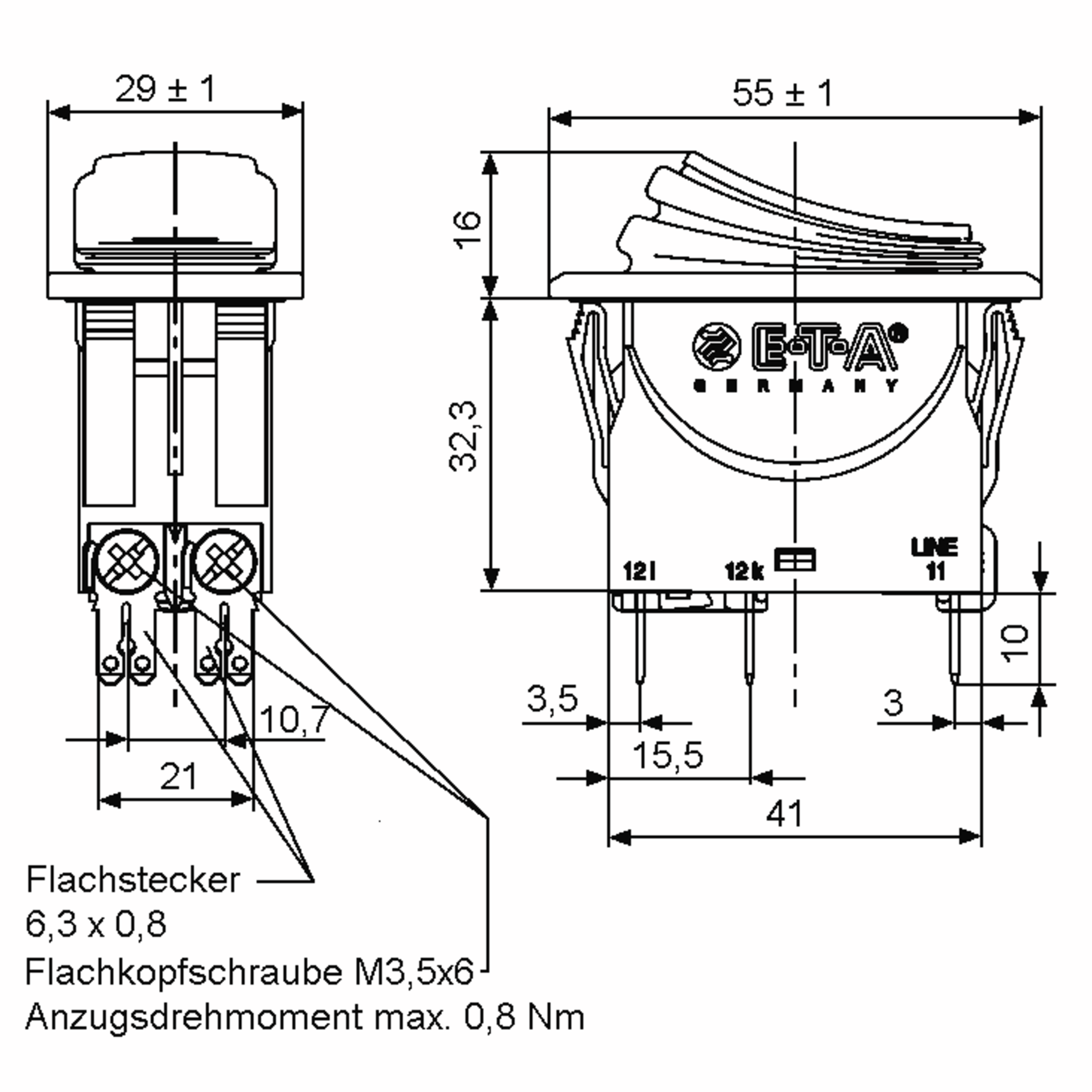

Dimensions and weights
- Dimension: Length
- 55 mm
- Dimension: Width
- 29 mm
- Dimension: Height
- 58.3 mm
- Panel cut-out
- 44,5 x 22 mm
- Weight
- 30 g
Operating conditions
- Operating temperature range, min.
- -30 °C
- Operating temperature range, max.
- 60 °C
- Service life, typ.
- 50,000 Schaltungen
Technical features
- Rated current
- 12 A
- Switching capacity
- 250 A
- Dielectric strength
- 1.500 V
- Rated voltage V AC
- 240 V AC
- Rated voltage V DC
- 50 V DC
- Insulation resistance
- 100 MOhm
Safety/Certifications
- Approvals
- CCC
- UL
- VDE
- cCSA
- Standards
- IEC 60529
- Insulation class
- IP65
