1140-G111-P1M1-16A

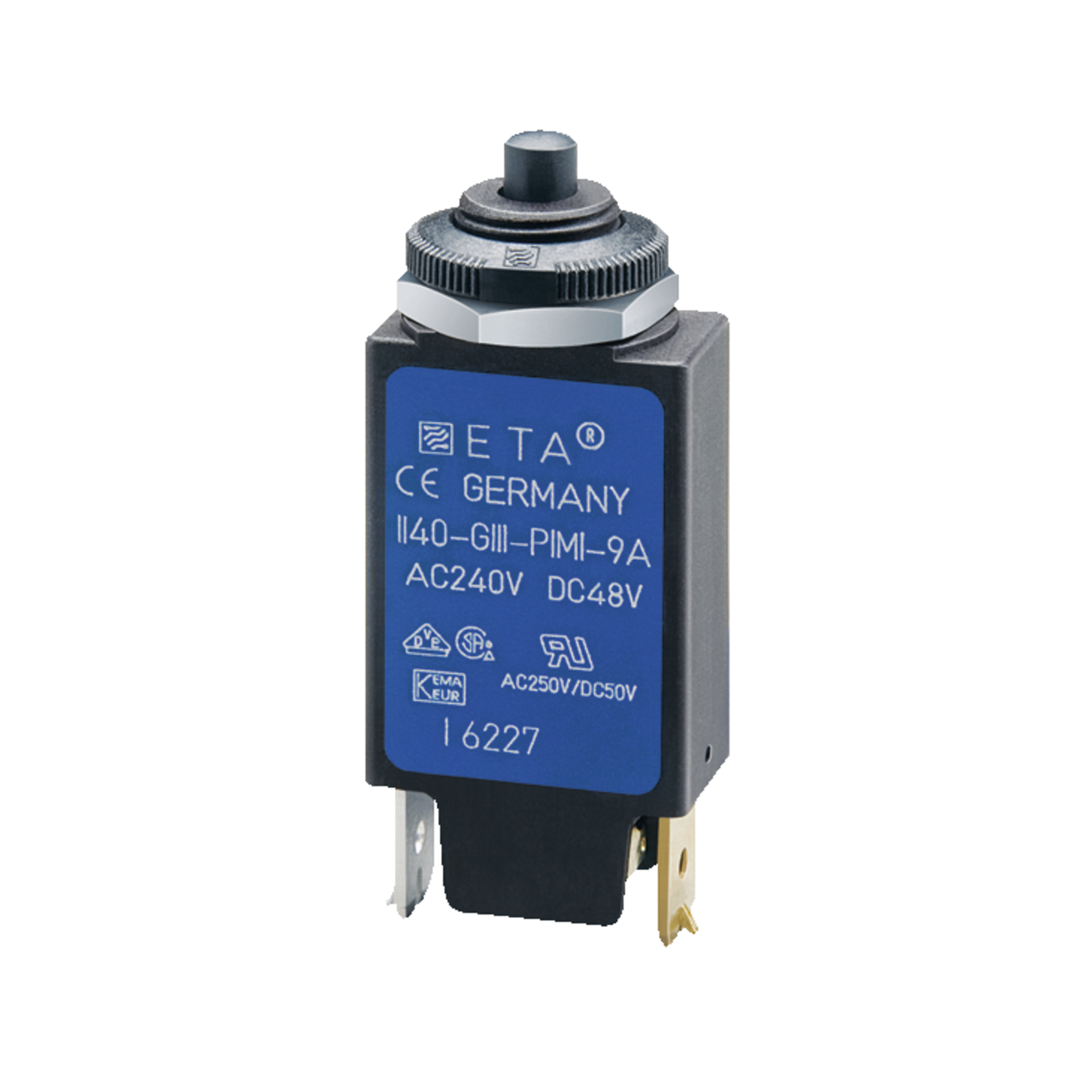

E-T-A Circuit breaker 1140-G1 with actuator 240VAC 48VDC 16A Threadneck mounting

1140-G111-P1M1-16A1140-G111-P1M1-16A
Manufacturer Part No.
1140-G111-P1M1-16A
Schukat Part No.
1140-G111-P1M1-16A
Manufacturer
E-T-A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Circuit breaker
Series
1140-G1
Housing
with actuator
Design
with snap-action contact
Flange colour
black
Type of actuator
Push button
Actuator colour
black
illumination
Unilluminated
Assembly
Front panel mounting
Rated current
16 A
Rated voltage V AC
240 V AC
Rated voltage V DC
48 V DC
Protection class
IP40
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • E-T-A
Series
  • 1140-G1
Type
  • Circuit breaker
Product group
  • E1923
illumination
  • Unilluminated
Actuator colour
  • black
Type of actuator
  • Push button
Flange colour
  • black
Housing
  • with actuator
Design
  • with snap-action contact
Assembly
  • Front panel mounting
Fastening
  • Threadneck mounting
Characteristic
  • medium time-lag
Applications
  • Hand tools, household appliances, overcurrent protection of printed circuit board traces, watercraft, motorhomes, etc., also for small transformers, office machines, power supplies and chargers, electric motors.
Type of Tripping
  • uninfluenceable free release
Termination Style
  • Flat connector 6.3x0.8mm
Features

  • • Single-pole thermal circuit breaker for higher current ratings
    • Compact design with threaded neck mounting
    • Reliable switching behavior thanks to snap-action mechanism and unaffected tripping
    • Complies with the circuit breaker standard EN 60934 (IEC 600934): R-type, TO
    • Threaded neck mounting 3/8-27UNS-2A, 7 mm length with screw-on hex nut and knurled plastic nut
    • Flat connector DIN 46244-A6.3-0.8
    • Delivery includes locking nut and 1 plastic knurled nut (screwed on).

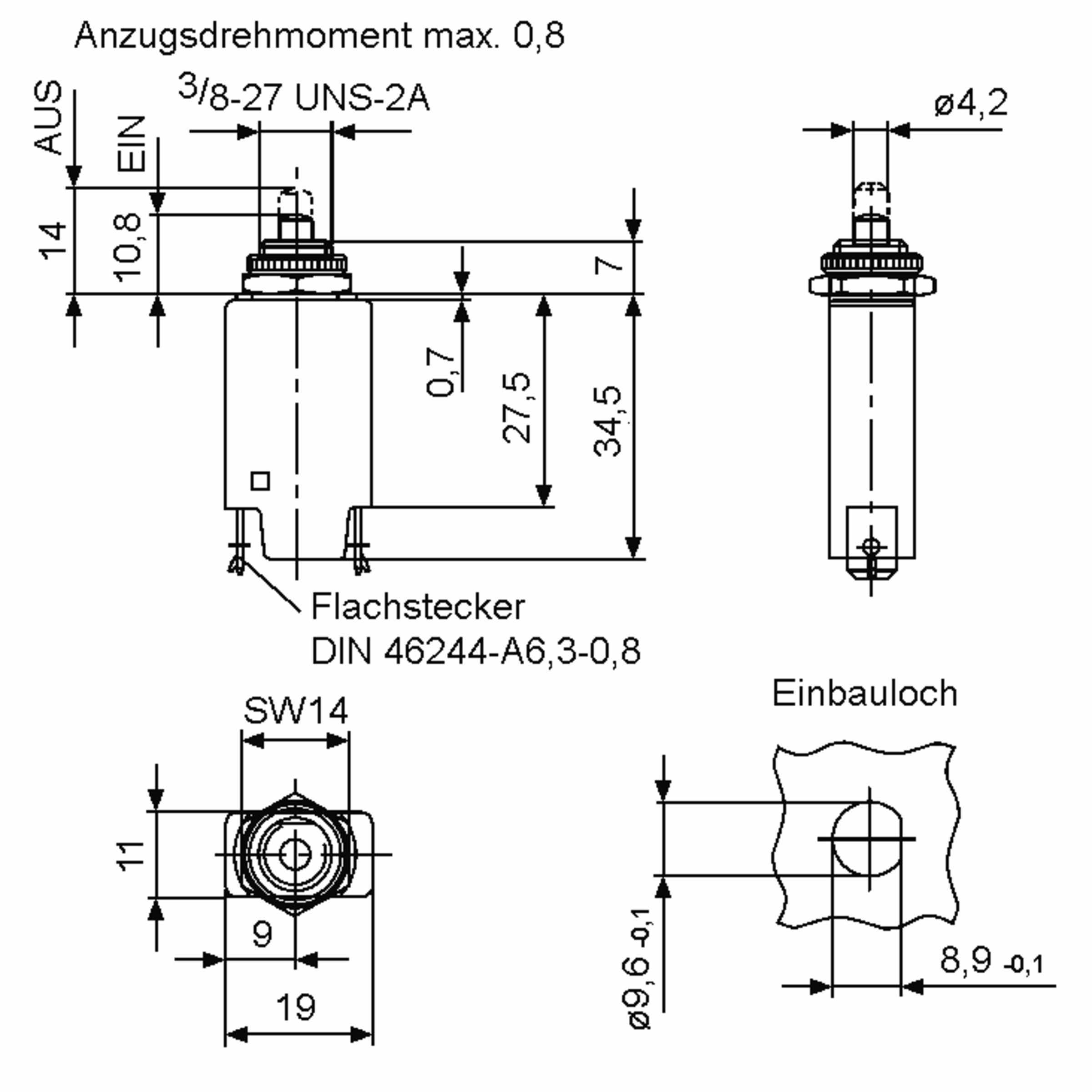

Dimensions and Weights

Dimension: Length
  • 19 mm
Dimension: Width
  • 11 mm
Dimension: Height
  • 45.3 mm
Panel cut-out
  • Ø 9,6 mm
Weight
  • 10 g
Board Strength min.
  • 11.3 mm
Board Strength max.
  • 11.6 mm

Operating conditions

Operating temperature range, min.
  • -20 °C
Operating temperature range, max.
  • 60 °C
mounting screw torque
  • 0.8 nm
Impact resistance
  • 25 G

Technical Features

Rated current
  • 16 A
Switching capacity
  • 120 A
Dielectric strength
  • 3.000 V
Rated voltage V AC
  • 240 V AC
Rated voltage V DC
  • 48 V DC
Insulation resistance
  • 100 MOhm

Mechanical Features

Drilling Dimensions
  • 9.6 mm

Safety/Certifications

Approvals
  • VDE
  • cCSA
  • cULus
Protection class
  • IP40
