DO16841453B00/5093

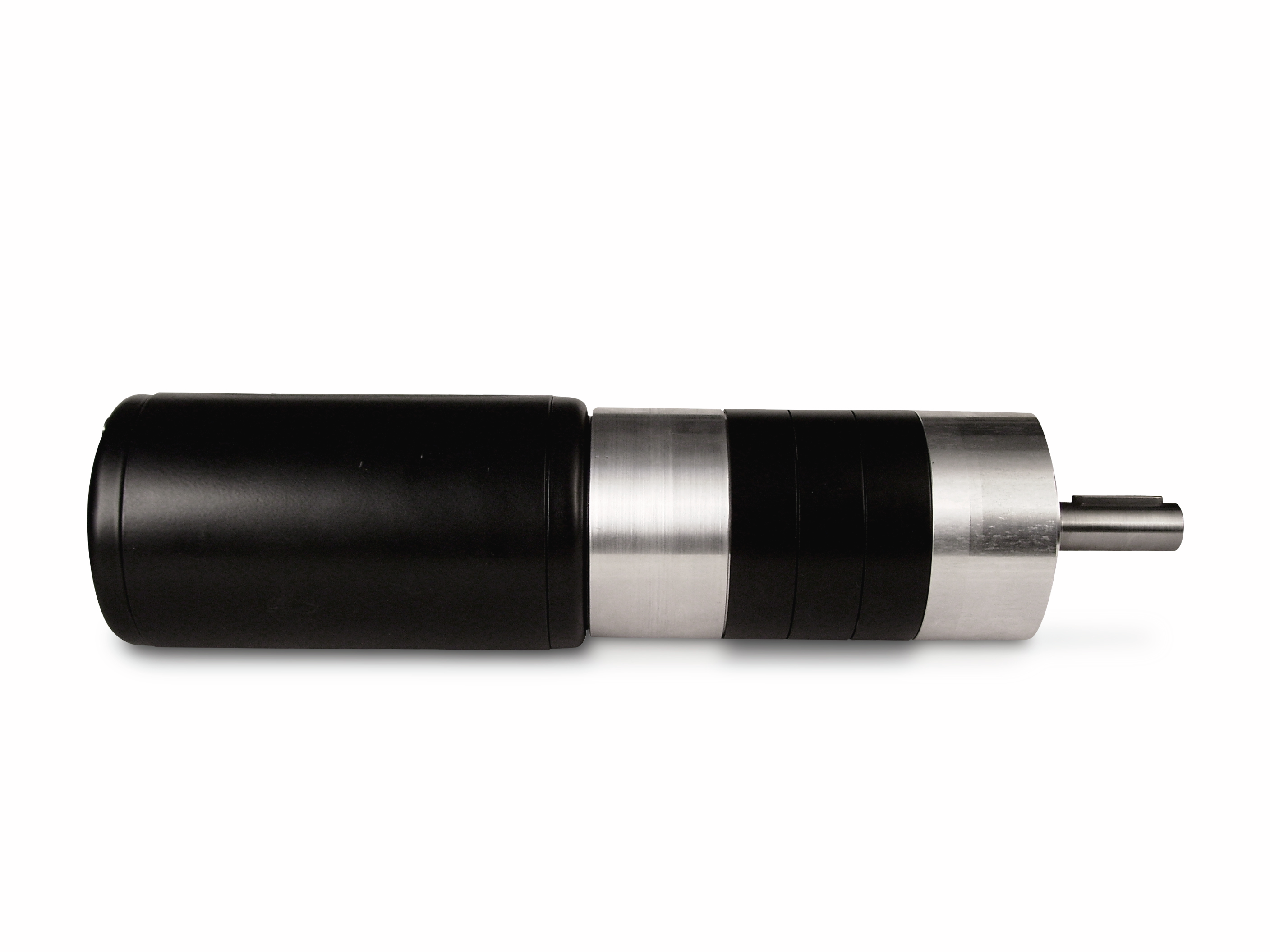

Doga Motor Planetary transmission 24VDC 1.100mA
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
5 Pcs.
5 Pcs.
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 5 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- 168
- Type(Motor)
- Motor
- Geared Motors Type
- Planetary transmission
- Rated Voltage
- 24 V DC
- Rated current
- 1,100 mA
- Protection Class
- IP40
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Weight
- 7.4 g
Technical features
- Rated Voltage
- 24 V DC
- Rated current
- 1,100 mA
- Starting current, max.
- 7,000 mA
- No-Load-Speed
- 39 rpm
- Nominal torque
- 32 Nm
- Torque
- 149 Nm
Safety/Certifications
- Protection Class
- IP40
