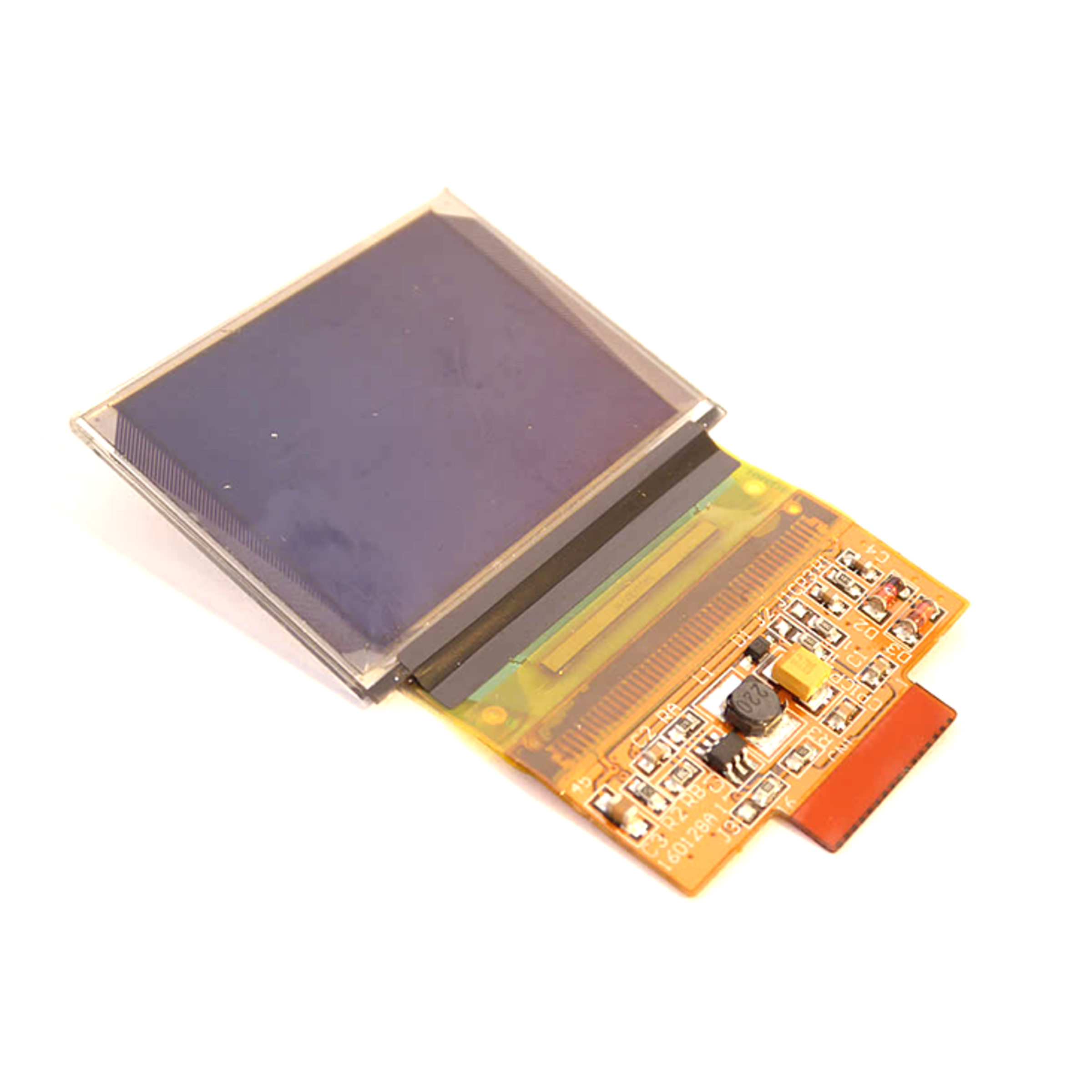

DEP160128A1-RGB
Display Elektronik OLED Graphic Module OLED 160x128 60cd/m2
Manufacturer Part No.
DEP160128A1-RGB
Schukat Part No.
DEP160128A1-RGB
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 01.06.2026
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 144 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resolution (Pixel)
- 160x128
- Backlight Brightness
- 60 cd/m2
- Display Interface
- 8-Bit-MCU
SPI - RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 85 °C
Electrical Properties
- Display Interface
- 8-Bit-MCU
- SPI
- Resolution (Pixel)
- 160x128
- Lighting Colour
- red, green, blue (RGB)
- Screen Diagonal
- 1.8 ''
- Display-Technology
- OLED
- Logic Supply voltage min.
- 2.4 V
- Logic Supply voltage typ.
- 3.3 V
- Logic Supply voltage max.
- 3.5 V
- Display Supply Voltage min.
- 16 V
- Display Supply Voltage typ.
- 17 V
- Display Supply Voltage max.
- 17.5 V
- Backlight Brightness
- 60 cd/m2
- Expected Lifetime
- 16,000 h
- Pixel Width
- 0.048 mm
- Pixel Heigth
- 0.199 mm
- Background Colour
- black
