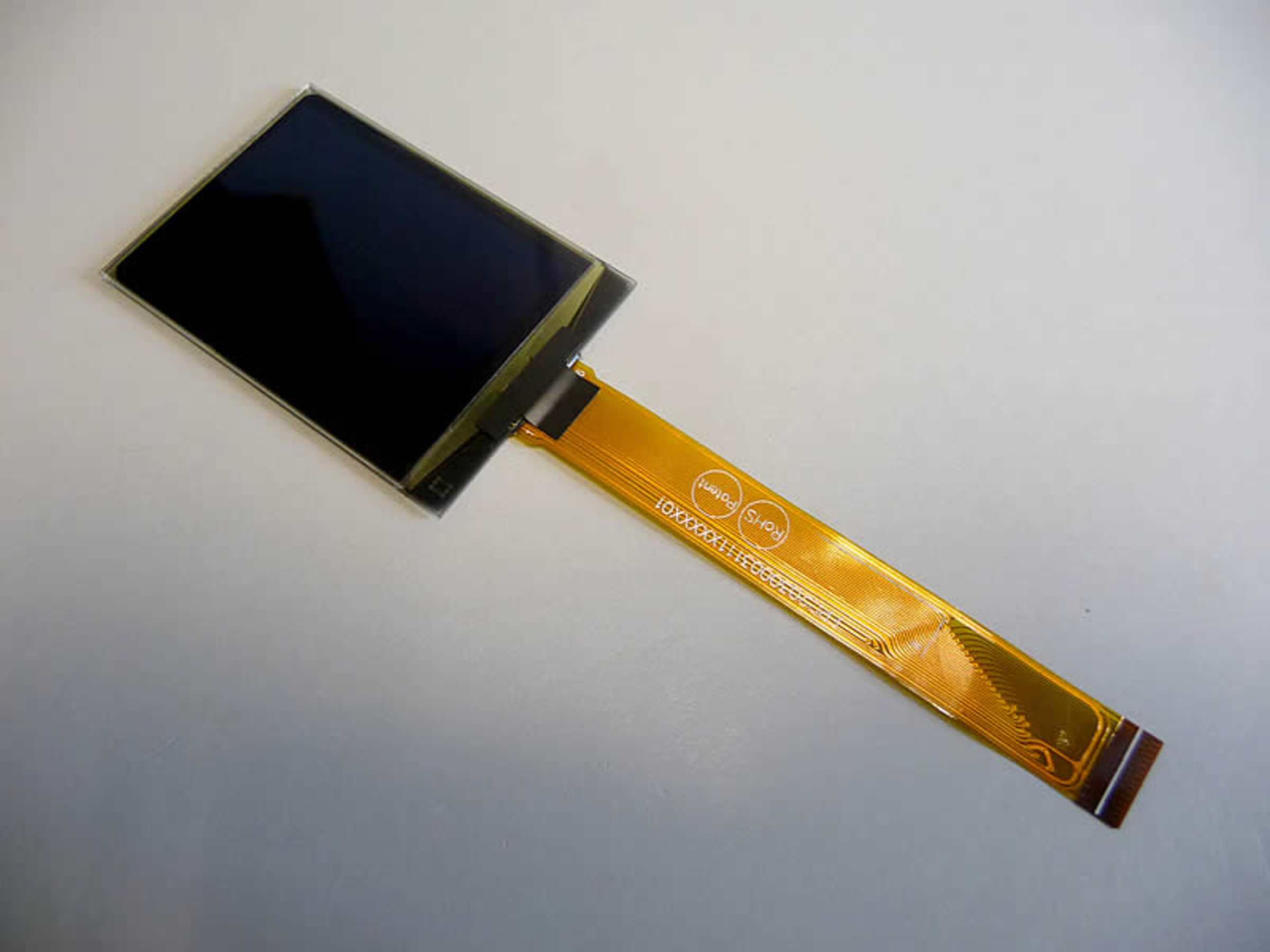

DEP128160A-W

Display Elektronik OLED Graphic Module OLED 128x160 100cd/m2

DEP128160A-W
Manufacturer Part No.
DEP128160A-W
Schukat Part No.
DEP128160A-W
Manufacturer
Display Elektronik
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

Item no longer available!

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 21.01.2026
Article discontinued
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 192 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Resolution (Pixel)
128x160
Backlight Brightness
100 cd/m2
Touch Panel
No Touch
Display Interface
8-Bit-MCU
I2C
SPI
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Display Elektronik
Type
  • OLED Graphic Module
Series
  • DEP_-W
Product group
  • W7325
Module Width
  • 34.5 mm
Module Height
  • 48.8 mm
Module Thickeness
  • 1.41 mm

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 80 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Electrical Properties

Display Interface
  • 8-Bit-MCU
  • I2C
  • SPI
Resolution (Pixel)
  • 128x160
Lighting Colour
  • white
Touch Panel
  • No Touch
Screen Diagonal
  • 1.92 ''
Display-Technology
  • OLED
Logic Supply voltage min.
  • 1.65 V
Logic Supply voltage typ.
  • 3 V
Logic Supply voltage max.
  • 3.5 V
Display Supply Voltage min.
  • 11.5 V
Display Supply Voltage typ.
  • 12 V
Display Supply Voltage max.
  • 12.5 V
Backlight Brightness
  • 100 cd/m2
Expected Lifetime
  • 20,000 h
Pixel Width
  • 0.206 mm
Pixel Heigth
  • 0.226 mm
Background Colour
  • black
