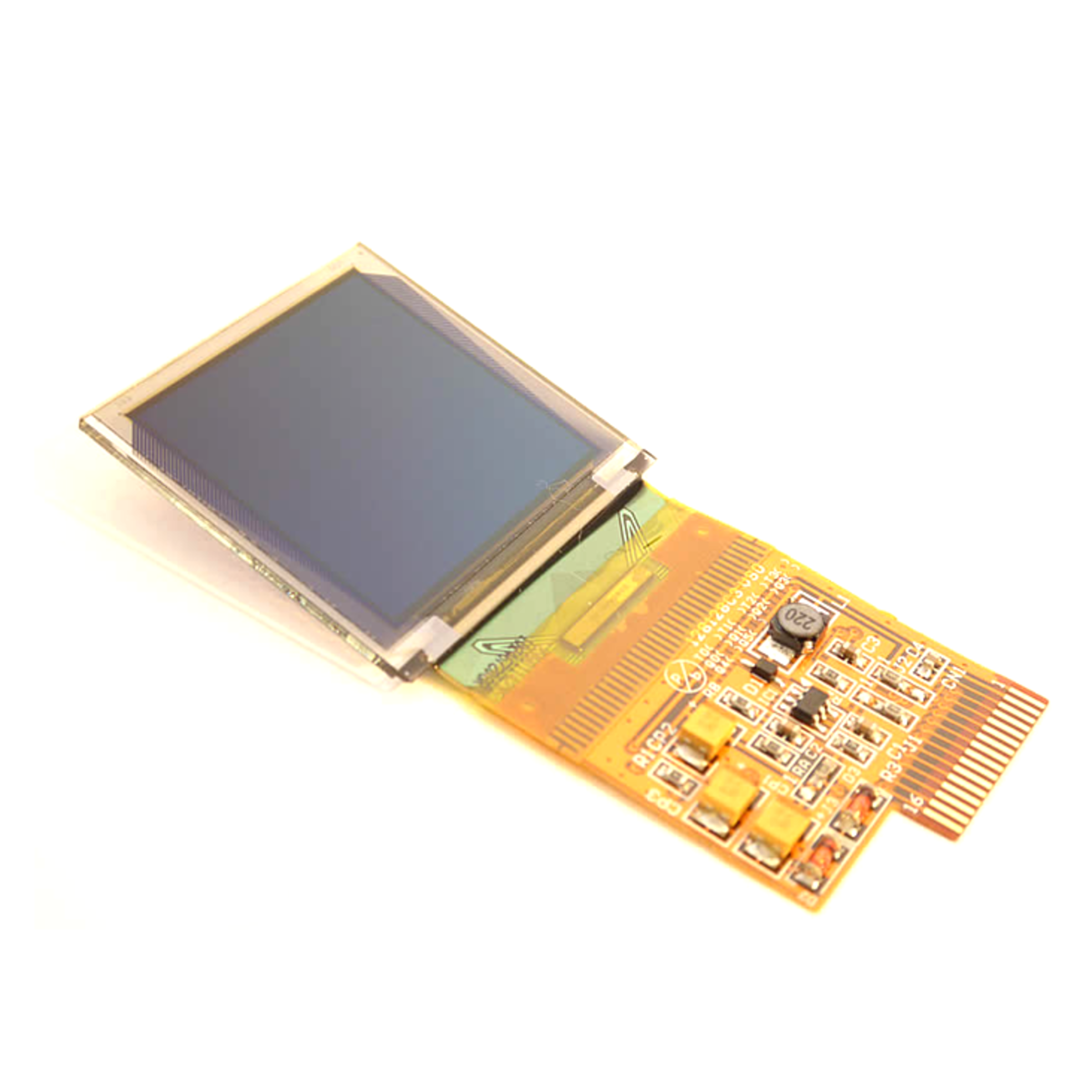

DEP128128C3-RGB
Display Elektronik OLED Graphic Module OLED 128x128 70cd/m2
Manufacturer Part No.
DEP128128C3-RGB
Schukat Part No.
DEP128128C3-RGB
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
31 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
LTB 31.05.2026
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 140 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resolution (Pixel)
- 128x128
- Backlight Brightness
- 70 cd/m2
- Display Interface
- 8-Bit-MCU
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 85 °C
Electrical Properties
- Display Interface
- 8-Bit-MCU
- Resolution (Pixel)
- 128x128
- Lighting Colour
- red, green, blue (RGB)
- Screen Diagonal
- 1.5 ''
- Display-Technology
- OLED
- Logic Supply voltage min.
- 2.4 V
- Logic Supply voltage typ.
- 3.3 V
- Logic Supply voltage max.
- 3.5 V
- Display Supply Voltage min.
- 16 V
- Display Supply Voltage typ.
- 16.5 V
- Display Supply Voltage max.
- 17 V
- Backlight Brightness
- 70 cd/m2
- Expected Lifetime
- 14,000 h
- Pixel Width
- 0.435 mm
- Pixel Heigth
- 0.185 mm
- Background Colour
- black
