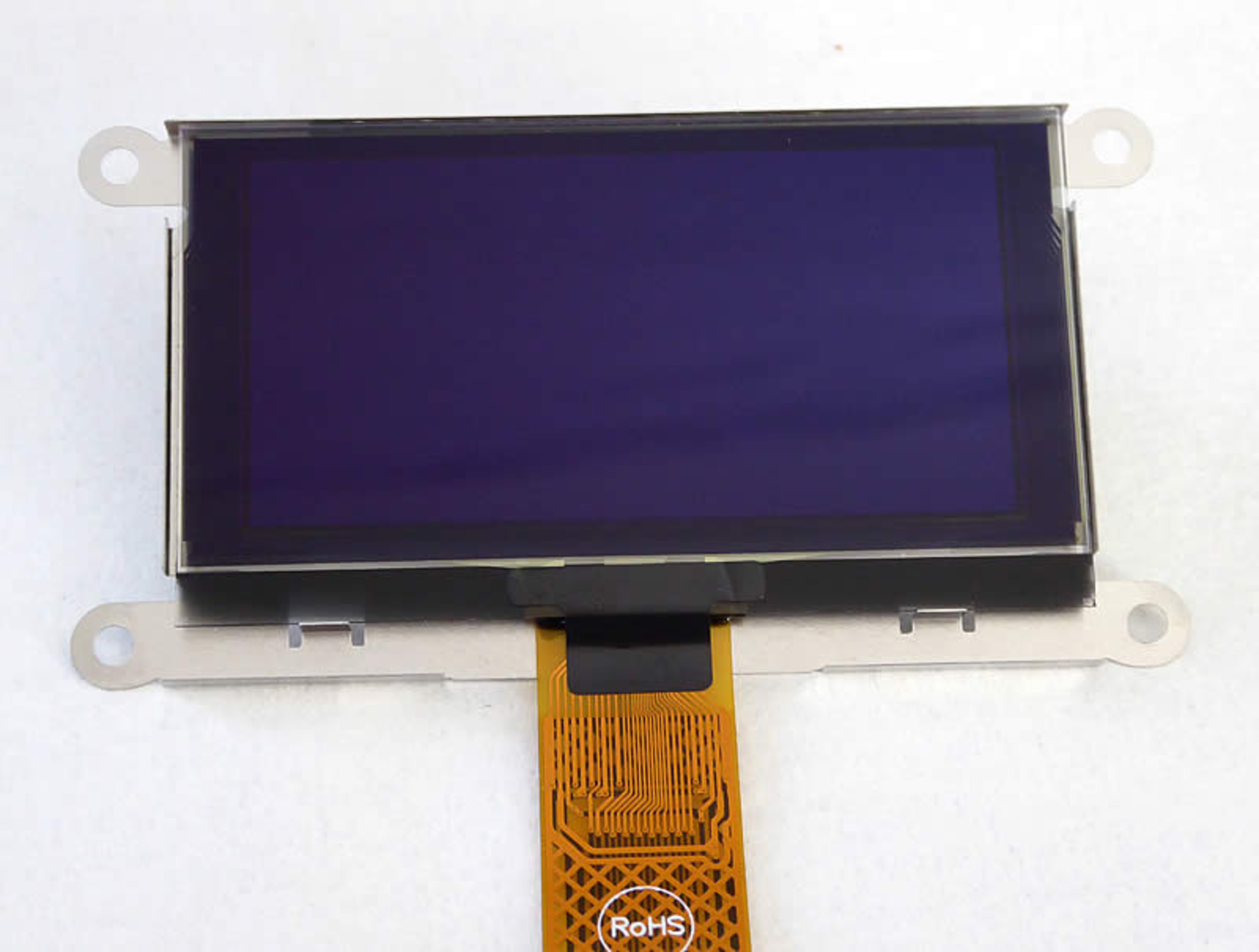

DEP128064M1-W
Display Elektronik OLED Graphic Module OLED 128x64
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
10 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 66 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 80 °C
Electrical properties
- Display Interface
- 8-Bit-MCU
- I2C
- SPI
- Resolution (Pixel)
- 128x64
- Lighting Colour
- white
- Screen Diagonal
- 2.7 ''
- Display-Technology
- OLED
- Supply Voltage Min.
- 2.8 V
- Supply Voltage Max.
- 3.3 V
- Expected Lifetime
- 20,000 h
- Pixel Width
- 0.45 mm
- Pixel Heigth
- 0.45 mm
- Background Colour
- black
