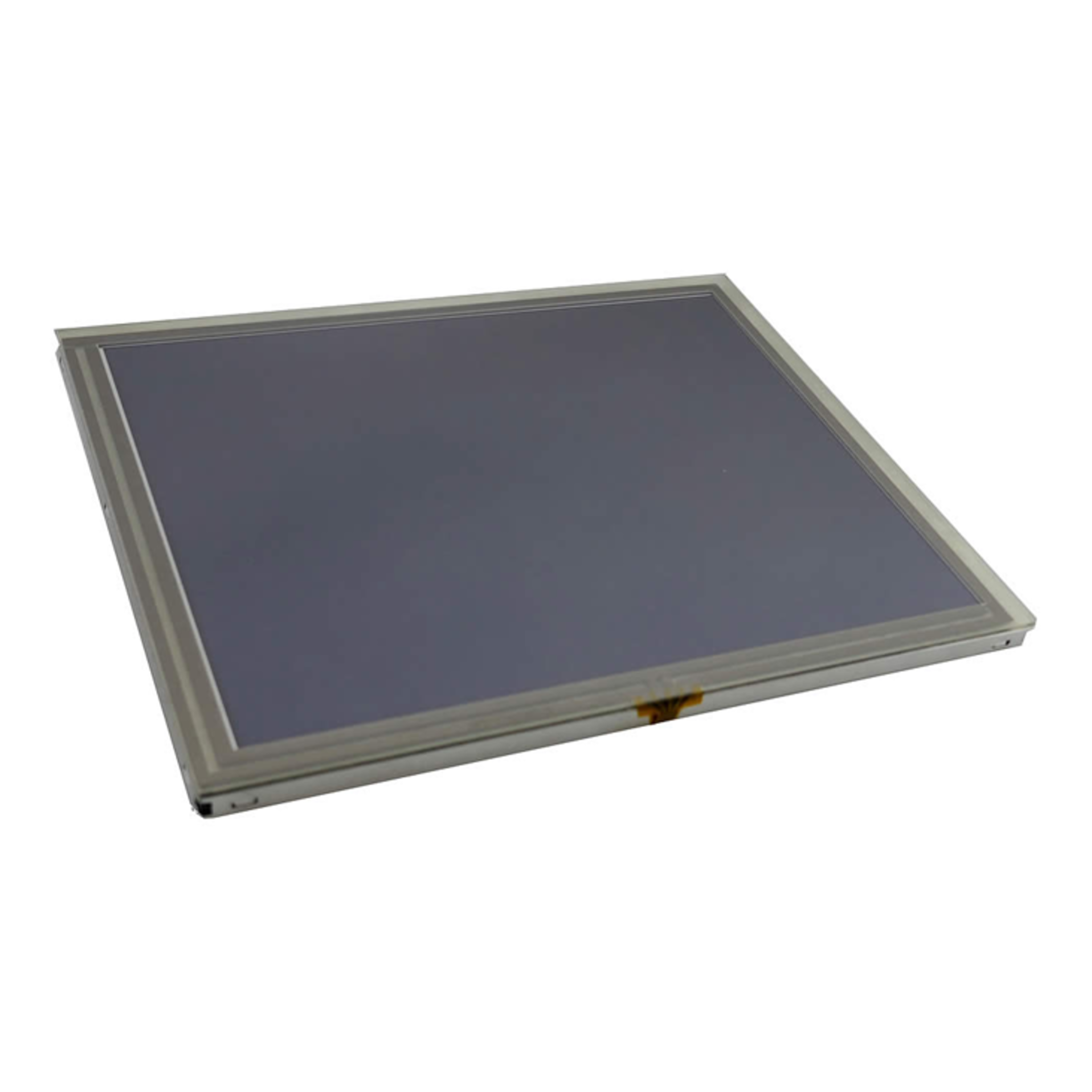

DEM800600ATMH-PW-N(A-TOUCH)
Display Elektronik LCD Graphic Module TFT 800x600 LED white 320 cd/m2
Manufacturer Part No.
DEM800600ATMH-PW-N(A-TOUCH)
Schukat Part No.
DEM800600ATMH-PWNT
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
5 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 01.08.2023
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- LCD Graphic Module
- Resolution (Pixel)
- 800x600
- Display Interface
- 18-Bit-RGB
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 3.6 V
- (Uf) Forward Voltage
- 9.9 V
- (If) Forward Current
- 150 mA
- Backlight Type
- LED
- Backlight Colour
- white
- Backlight Brightness
- 320 cd/m2
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -30 °C
- Storage Temperature Max.
- 80 °C
Electrical Properties
- (Uf) Forward Voltage
- 9.9 V
- (If) Forward Current
- 150 mA
- Backlight Type
- LED
- Display Interface
- 18-Bit-RGB
- Resolution (Pixel)
- 800x600
- Screen Diagonal
- 8 ''
- Display-Technology
- TFT
- Supply Voltage Min.
- 3 V
- Backlight Colour
- white
- Supply Voltage Max.
- 3.6 V
- Backlight Brightness
- 320 cd/m2
- Expected Lifetime
- 40,000 h
- Pixel Width
- 0.203 mm
- Pixel Heigth
- 0.203 mm
