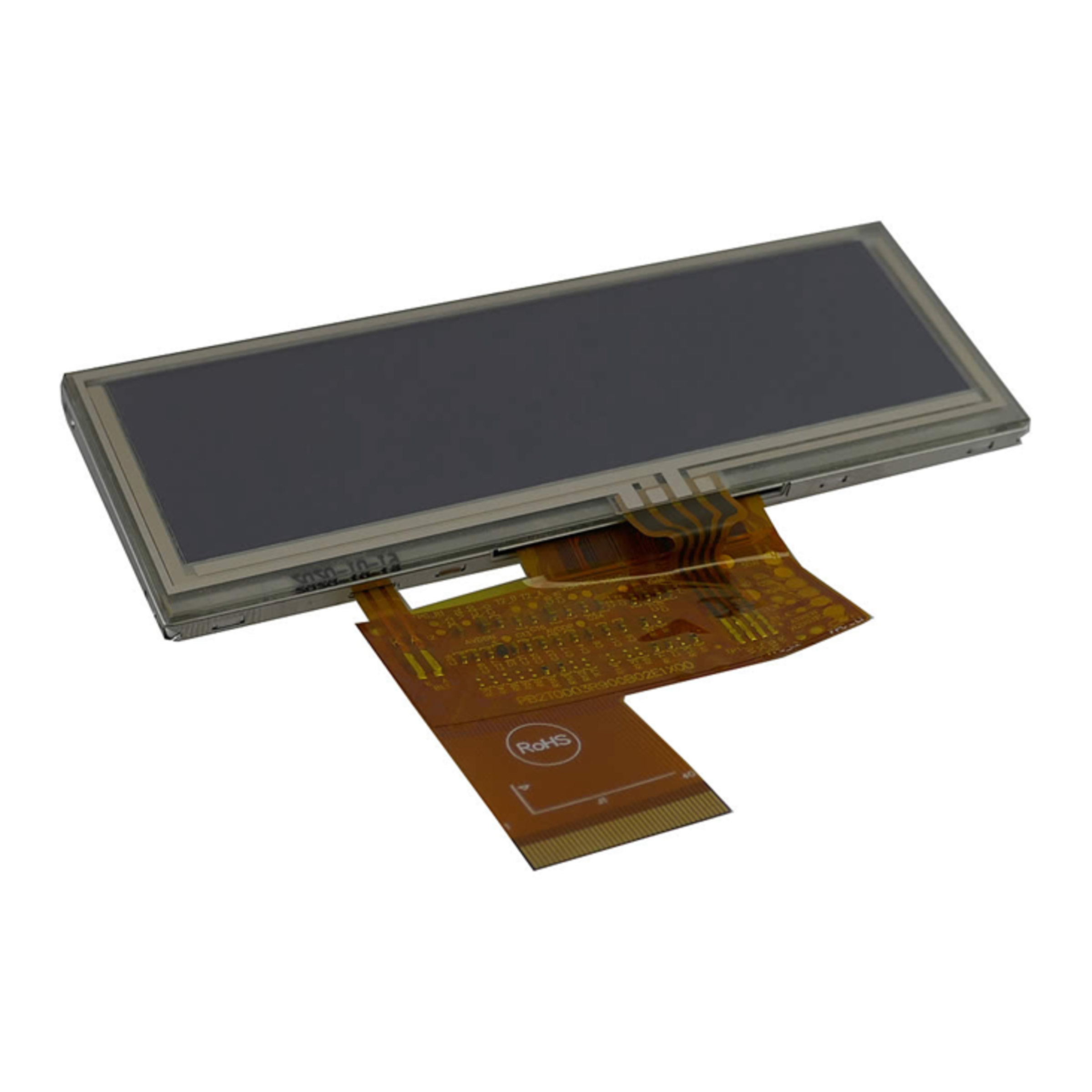

DEM480128BTMH-PW-N(A-TOUCH)
Display Elektronik LCD Graphic Module TFT 480x128 LED white 350 cd/m2
Manufacturer Part No.
DEM480128BTMH-PW-N(A-TOUCH)
Schukat Part No.
DEM480128BTMHPWN A
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 24 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- LCD Graphic Module
- Touch Panel
- 4-Wire-Resistive
- Resolution (Pixel)
- 480x128
- Display Interface
- 18-Bit-RGB
24-Bit-RGB - Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 3.6 V
- (Uf) Forward Voltage
- 15 V
- (If) Forward Current
- 40 mA
- Backlight Type
- LED
- Backlight Colour
- white
- Backlight Brightness
- 350 cd/m2
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -30 °C
- Storage Temperature Max.
- 80 °C
Electrical Properties
- (Uf) Forward Voltage
- 15 V
- (If) Forward Current
- 40 mA
- Backlight Type
- LED
- Display Controller
- HX8278
- Display Interface
- 18-Bit-RGB
- 24-Bit-RGB
- Resolution (Pixel)
- 480x128
- Touch Panel
- 4-Wire-Resistive
- Screen Diagonal
- 3.9 ''
- Display-Technology
- TFT
- Supply Voltage Min.
- 3 V
- Backlight Colour
- white
- Supply Voltage Max.
- 3.6 V
- Backlight Brightness
- 350 cd/m2
- Expected Lifetime
- 50,000 h
- Pixel Width
- 0.066 mm
- Pixel Heigth
- 0.198 mm
