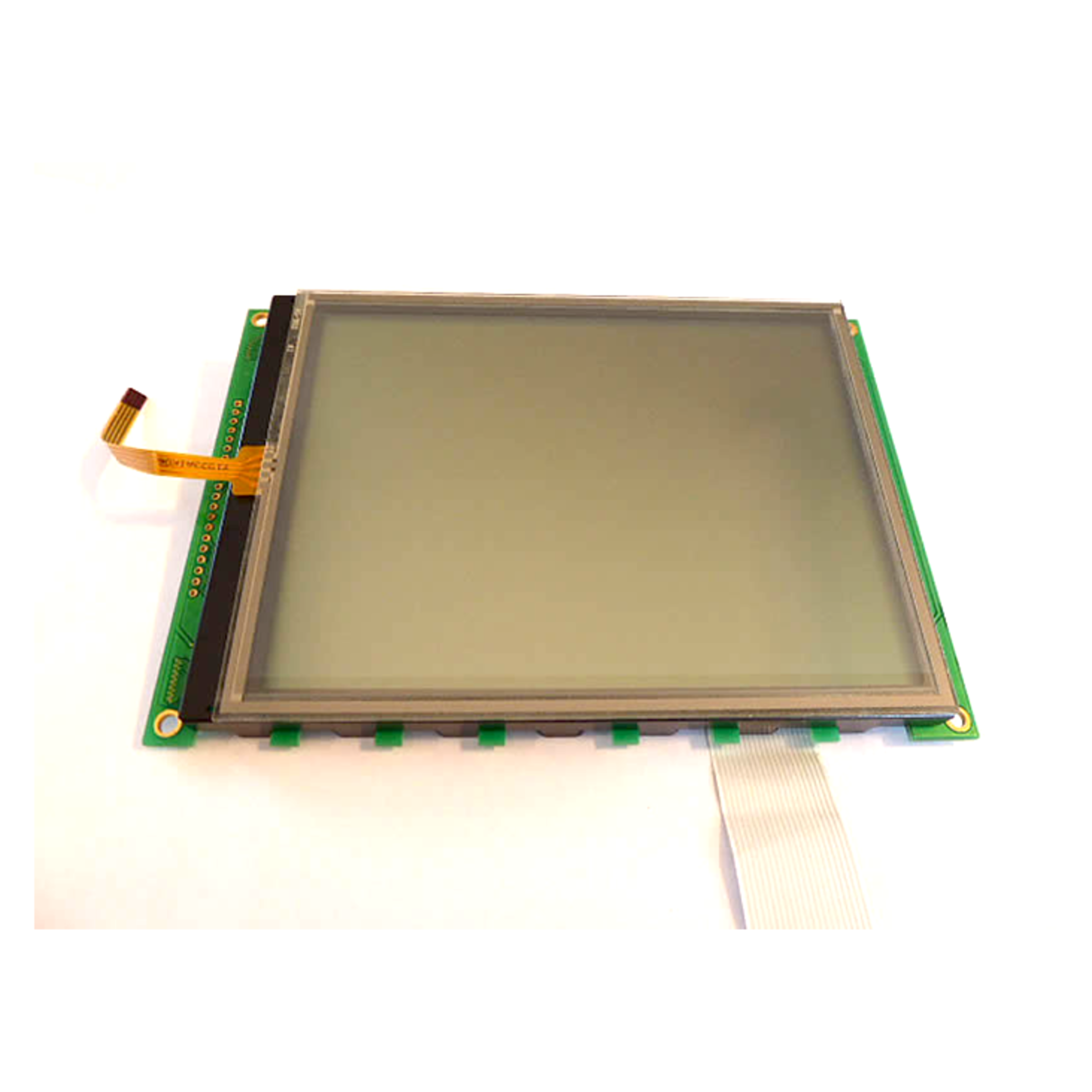

DEM320240IFGH-PW(A-TOUCH)
Display Elektronik LCD Graphic Module FSTN 320x240 LED white
Manufacturer Part No.
DEM320240IFGH-PW(A-TOUCH)
Schukat Part No.
DEM320240IFGH-PWT
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 16 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
Electrical properties
- Backlight Type
- LED
- Display Interface
- 8-Bit-MCU
- Resolution (Pixel)
- 320x240
- Touch Panel
- 4-Wire-Resistive
- Touchscreen Interface
- Analog
- Screen Diagonal
- 5.7 ''
- Display-Technology
- FSTN
- Supply Voltage Min.
- 2.7 V
- Backlight Colour
- white
- Supply Voltage Max.
- 5.5 V
- Pixel Width
- 0.33 mm
- Pixel Heigth
- 0.33 mm
