DEM240320J1TMH-PW-N(C1-TOUCH)

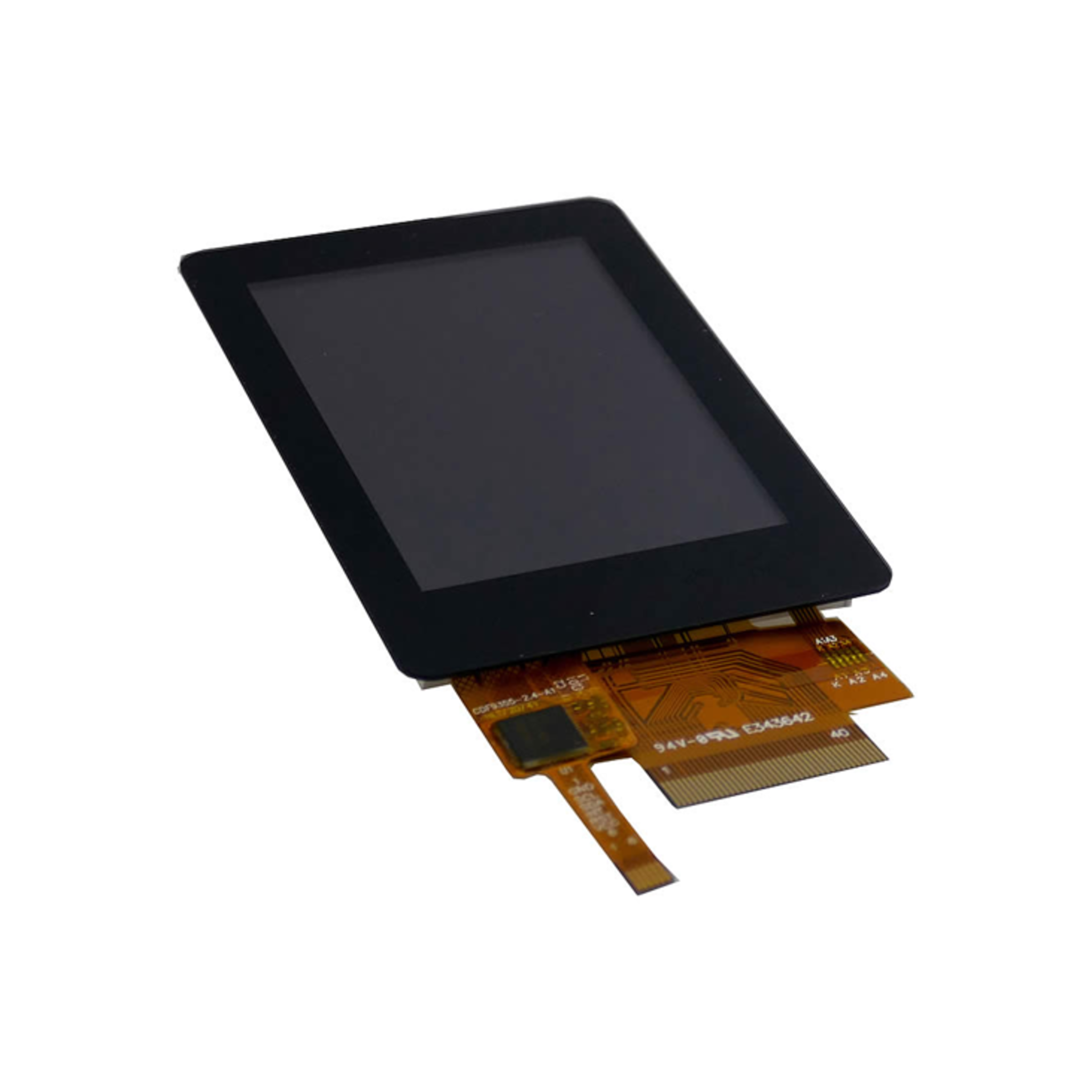

Display Elektronik LCD Graphic Module TFT 240x320 LED white 250 cd/m2
Manufacturer Part No.
DEM240320J1TMH-PW-N(C1-TOUCH)
Schukat Part No.
DEM240320J1TMHPWNC
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 13.11.2023
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 140 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1120 or multiple of 140)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -30 °C
- Storage Temperature Max.
- 80 °C
Electrical properties
- (Uf) Forward Voltage
- 3.1 V
- (If) Forward Current
- 60 mA
- Backlight Type
- LED
- Display Controller
- ST7789V
- Display Interface
- 16-Bit-MCU
- 8-Bit-MCU
- SPI
- Resolution (Pixel)
- 240x320
- Touch Panel
- Projective Touch
- Screen Diagonal
- 2.4 ''
- Display-Technology
- TFT
- Supply Voltage Min.
- 2.4 V
- Backlight Colour
- white
- Supply Voltage Max.
- 3.3 V
- Backlight Brightness
- 250 cd/m2
- Expected Lifetime
- 50,000 h
- Pixel Width
- 0.153 mm
- Pixel Heigth
- 0.153 mm
