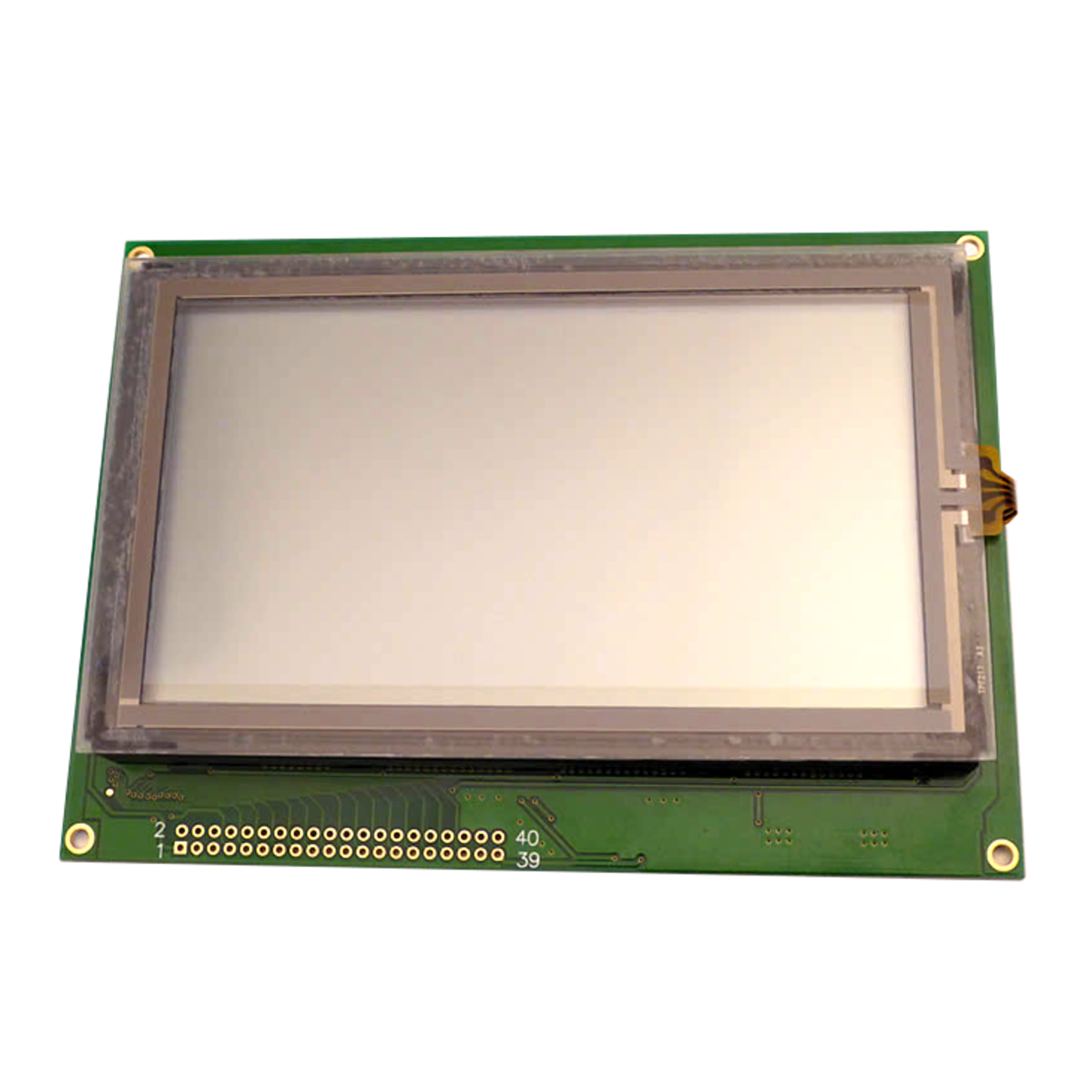

DEM240128D1FGH-PW(A-TOUCH)

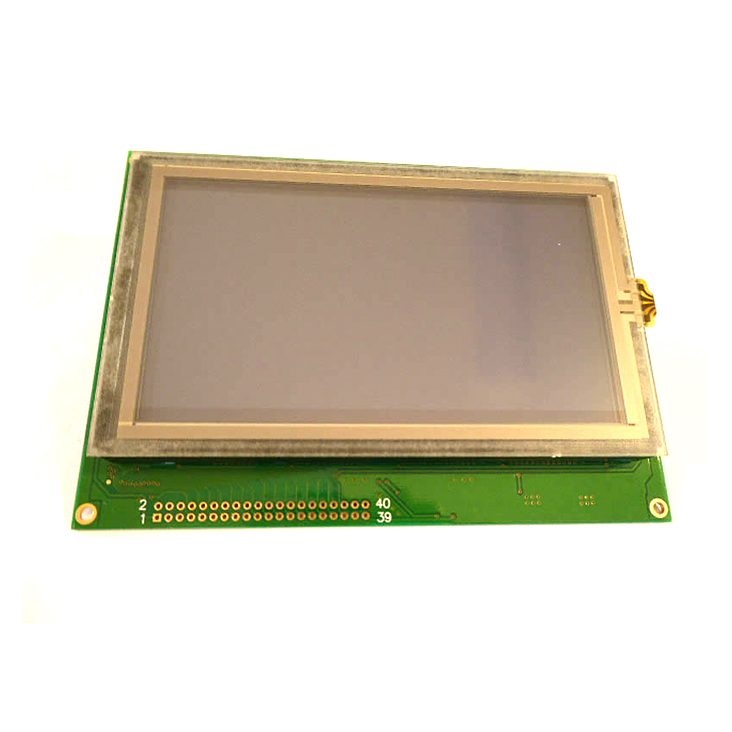

Display Elektronik LCD Graphic Module FSTN 240x128 LED white
Manufacturer Part No.
DEM240128D1FGH-PW(A-TOUCH)
Schukat Part No.
DEM240128D1FGH-PWT
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 09.12.2024
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 18 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Touch Panel
- 4-Wire-Resistive
- Resolution (Pixel)
- 240x128
- Display Interface
- 8-Bit-MCU
- Supply Voltage Min.
- 4.7 V
- Supply Voltage Max.
- 5.3 V
- Backlight Type
- LED
- Backlight Colour
- white
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
Electrical Properties
- Backlight Type
- LED
- Display Interface
- 8-Bit-MCU
- Resolution (Pixel)
- 240x128
- Touch Panel
- 4-Wire-Resistive
- Screen Diagonal
- 4.8 ''
- Touchscreen Interface
- Analog
- Display-Technology
- FSTN
- Supply Voltage Min.
- 4.7 V
- Backlight Colour
- white
- Supply Voltage Max.
- 5.3 V
- Pixel Width
- 0.4 mm
- Pixel Heigth
- 0.4 mm
Documents
PCN_DEM240128D1FGH-PW(A-TOUCH)_20240125_EN.pdf
