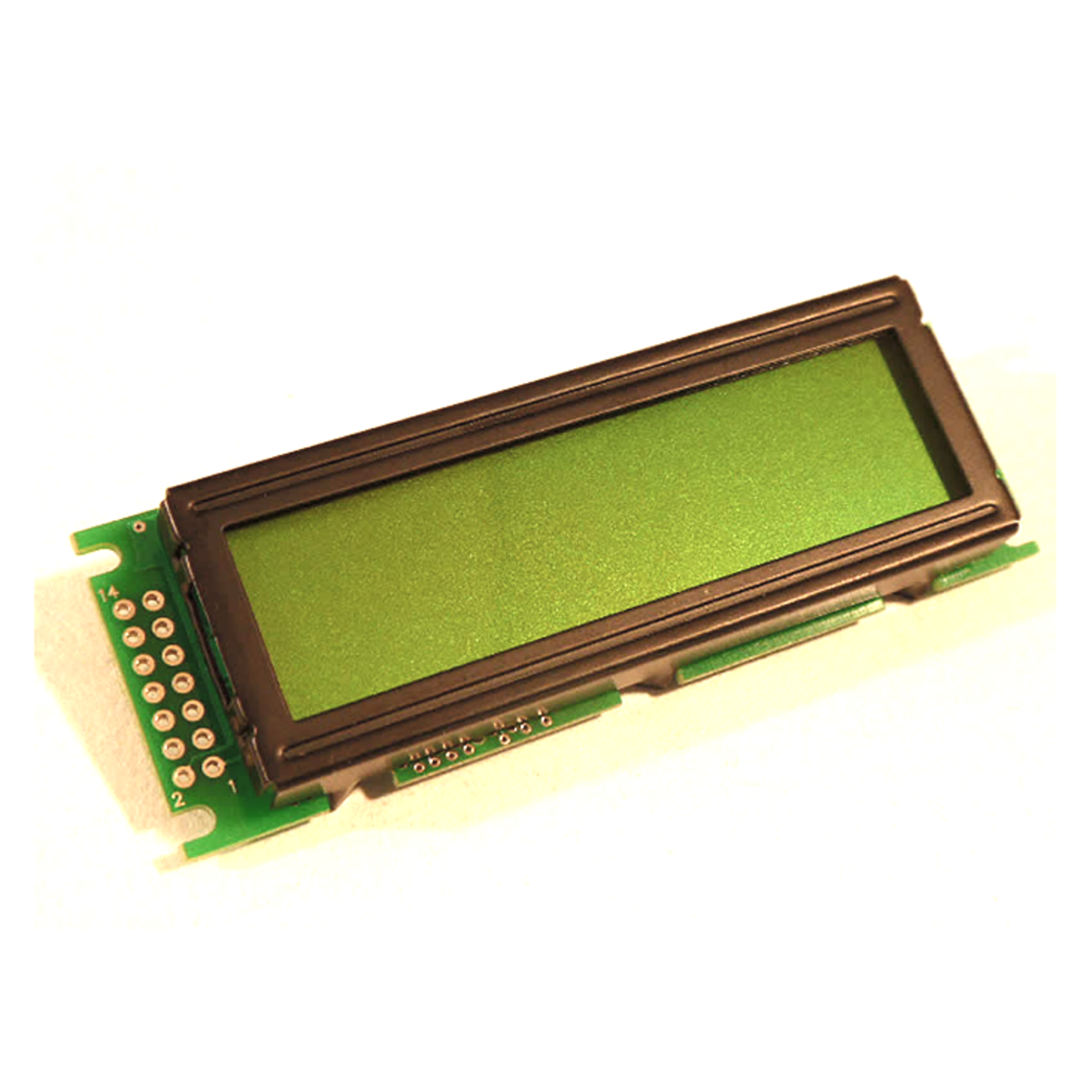

DEM16227SYH-LY

Display Elektronik LCD Module Dot Matrix 16x2 LED yellow/green

Manufacturer Part No.
DEM16227SYH-LY
Schukat Part No.
DEM16227SYH-LY
Manufacturer
Display Elektronik
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

Item no longer available!

Back Order
0 Pcs.
Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 26.08.2024
Article discontinued
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 51 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Supply Voltage Min.
4.9 V
Supply Voltage Max.
5.3 V
Characters
16x2
Backlight Type
LED
Backlight Colour
yellow/green
Active Area Heigth
17.2 mm
Active Area Width
65 mm
Character Heigth
4.35 mm
Character Width
2.95 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Display Elektronik
Type
  • LCD Module
Kind
  • Dot Matrix
Series
  • DEM16227
Product group
  • W4722 display elektronik LCD-Dot-Matrix-Modules with Backlight yel
Module Width
  • 85 mm
Module Height
  • 30 mm
Module Thickeness
  • 13.6 mm

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -30 °C
Storage Temperature Max.
  • 80 °C

Electrical Properties

(Uf) Forward Voltage
  • 4.2 V
Characters
  • 16x2
(If) Forward Current
  • 120 mA
Backlight Type
  • LED
Display Controller
  • AIP31066
Display Interface
  • 4-Bit-MCU
  • 8-Bit-MCU
Active Area Heigth
  • 17.2 mm
Active Area Width
  • 65 mm
Supply Voltage Min.
  • 4.9 V
Backlight Colour
  • yellow/green
Supply Voltage Max.
  • 5.3 V
Peak Emission Wavelength
  • 570 Nm
Character Heigth
  • 4.35 mm
Character Width
  • 2.95 mm
Character Set
  • English
  • Japanese
Character Colour
  • black

Other Products

All Products of the Series
NEW

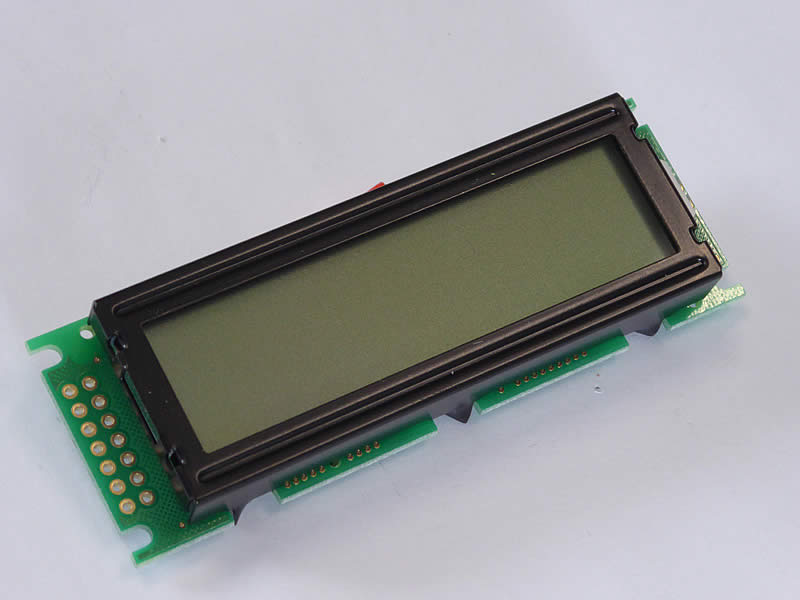

DEM16227FGH-PW
