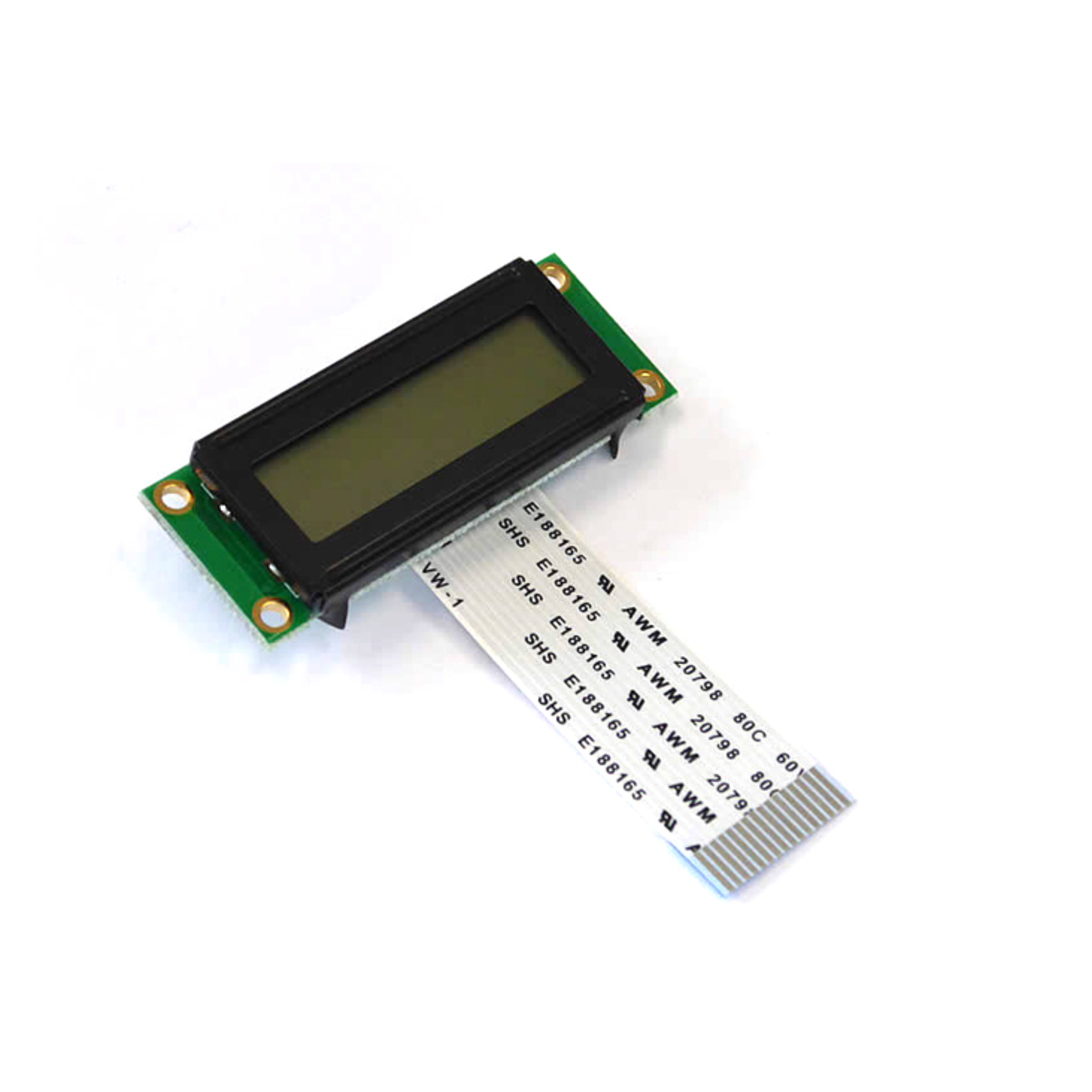

DEM16223FGH-PW
Display Elektronik LCD Module Dot Matrix 16x2 LED white 300cd/m2
Manufacturer Part No.
DEM16223FGH-PW
Schukat Part No.
DEM16223FGH-PW
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 192 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Characters
- 16x2
- Backlight Type
- LED
- Backlight Colour
- white
- Active Area Heigth
- 10 mm
- Active Area Width
- 36 mm
- Light Intensity
- 136 mcd
- Character Heigth
- 3.15 mm
- Character Width
- 1.85 mm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
Electrical properties
- Characters
- 16x2
- (If) Forward Current
- 40 mA
- Backlight Type
- LED
- Display Controller
- ST7066U-0A
- Display Interface
- 4-Bit-MCU
- 8-Bit-MCU
- Active Area Heigth
- 10 mm
- Active Area Width
- 36 mm
- Backlight Colour
- white
- Light Intensity
- 136 mcd
- Backlight Brightness
- 300 cd/m2
- Character Heigth
- 3.15 mm
- Character Width
- 1.85 mm
- Character Set
- English
- Japanese
- Character Colour
- black
