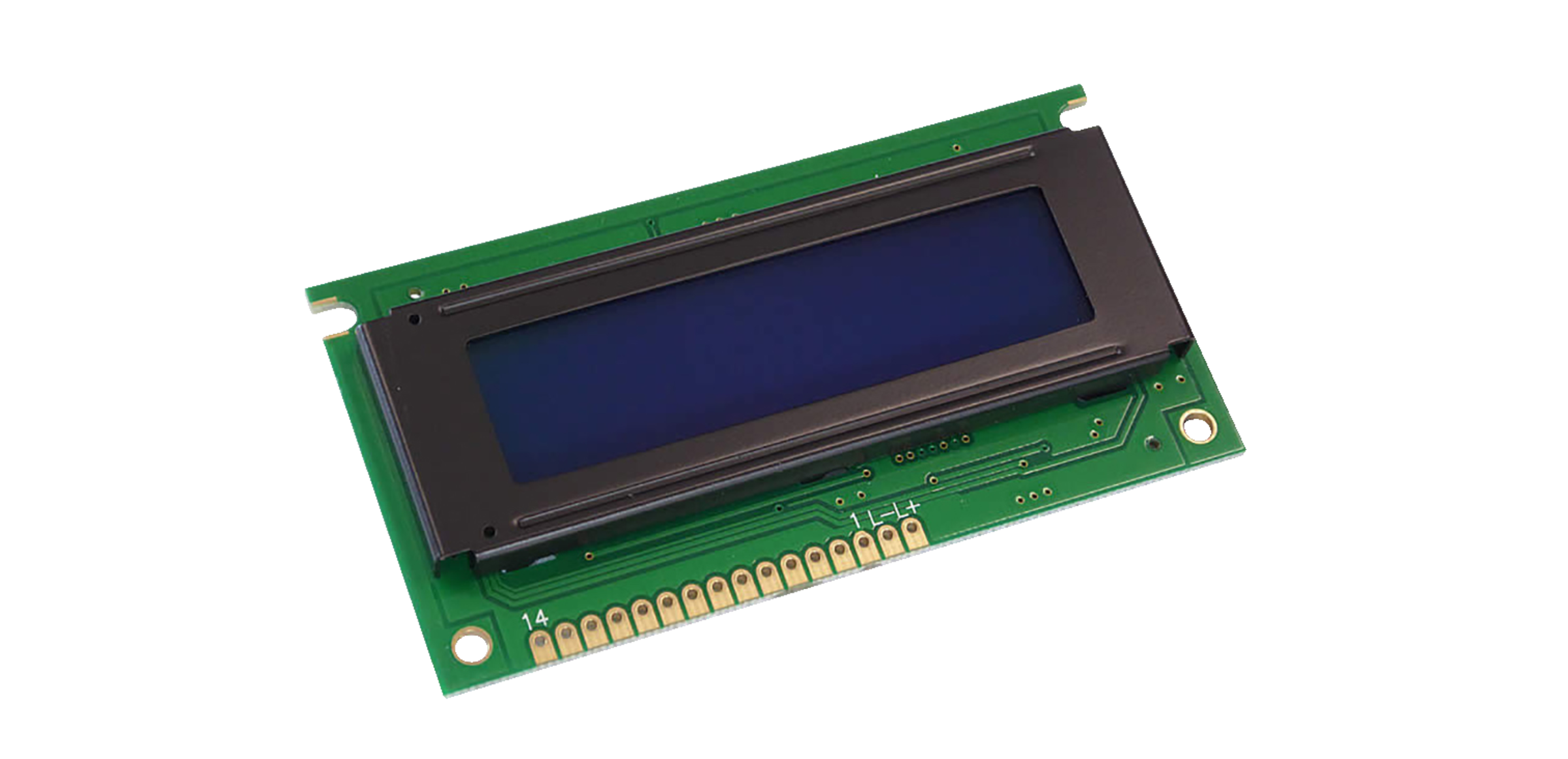

DEM16217SBH-PW-N

Display Elektronik LCD Module Dot Matrix 16x2 LED blue 350cd/m2

Manufacturer Part No.
DEM16217SBH-PW-N
Schukat Part No.
DEM16217SBH-PW-N
Manufacturer
Display Elektronik
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

20 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 105 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Supply Voltage Min.
4.7 V
Supply Voltage Max.
5.3 V
Characters
16x2
Backlight Type
LED
Backlight Colour
blue
Active Area Heigth
15.8 mm
Active Area Width
61 mm
Light Intensity
180 mcd
Character Heigth
5.55 mm
Character Width
2.95 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Display Elektronik
Type
  • LCD Module
Kind
  • Dot Matrix
Series
  • DEM16217
Product group
  • W4725 display elektronik LCD-Dot-Matrix-Modules with Backlight blu
Module Width
  • 84 mm
Module Height
  • 44 mm
Module Thickeness
  • 10.5 mm

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -30 °C
Storage Temperature Max.
  • 80 °C

Electrical properties

(Uf) Forward Voltage
  • 4 V
Characters
  • 16x2
(If) Forward Current
  • 45 mA
Backlight Type
  • LED
Display Controller
  • ST7066U-0A
Display Interface
  • 4-Bit-MCU
  • 8-Bit-MCU
Active Area Heigth
  • 15.8 mm
Active Area Width
  • 61 mm
Supply Voltage Min.
  • 4.7 V
Backlight Colour
  • blue
Supply Voltage Max.
  • 5.3 V
Light Intensity
  • 180 mcd
Backlight Brightness
  • 350 cd/m2
Character Heigth
  • 5.55 mm
Character Width
  • 2.95 mm
Character Set
  • English
  • Japanese
Character Colour
  • black or white
