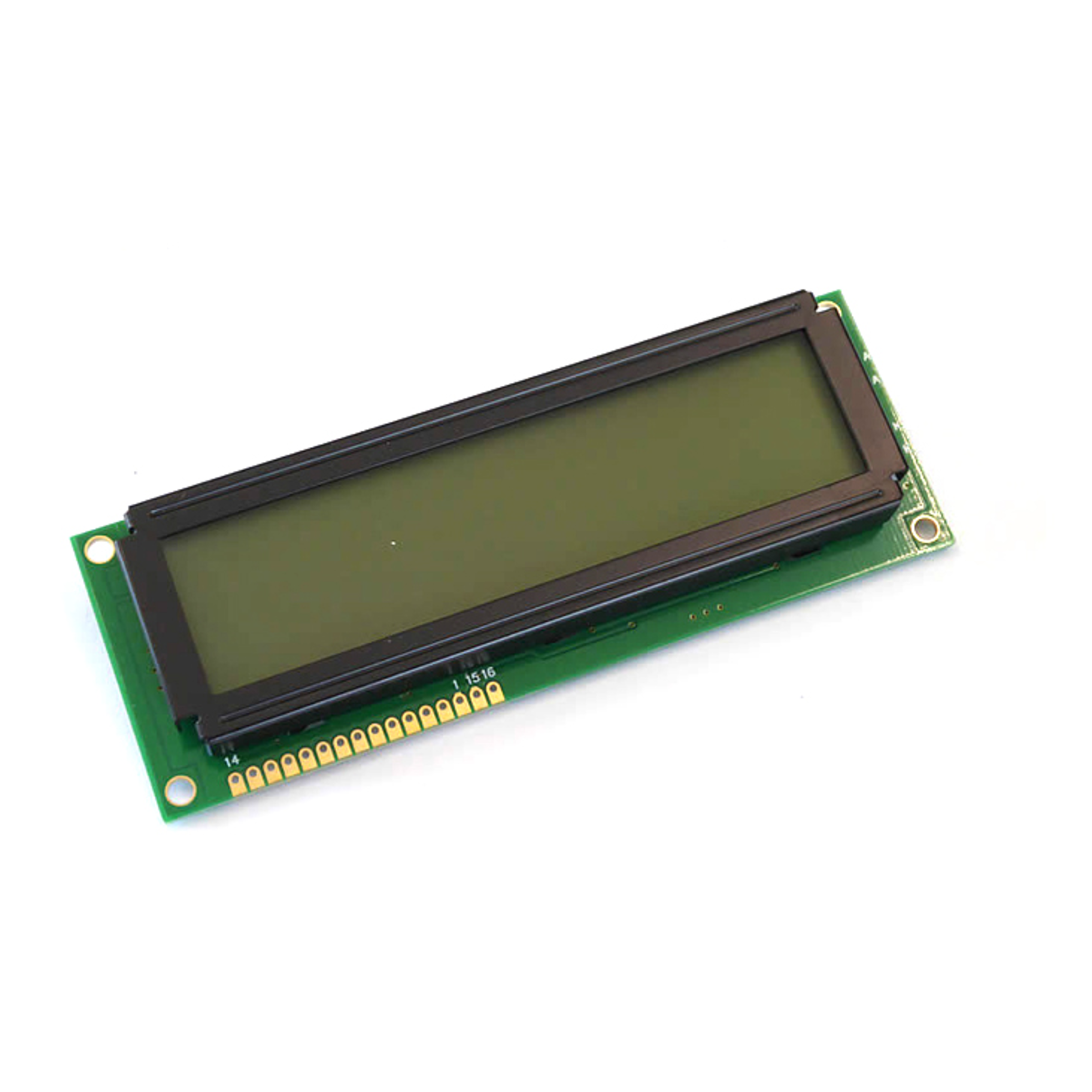

DEM16215FGH-PW

Display Elektronik LCD Module Dot Matrix 16x2 LED white 88cd/m2

Manufacturer Part No.
DEM16215FGH-PW
Schukat Part No.
DEM16215FGH-PW
Manufacturer
Display Elektronik
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

11 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 60 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Supply Voltage Min.
4.7 V
Supply Voltage Max.
5.3 V
Characters
16x2
Backlight Type
LED
Backlight Colour
white
Active Area Heigth
24 mm
Active Area Width
99 mm
Light Intensity
210 mcd
Character Heigth
9.55 mm
Character Width
5.2 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Display Elektronik
Type
  • LCD Module
Kind
  • Dot Matrix
Series
  • DEM16215
Product group
  • W4727 display elektronik LCD-Dot-Matrix-Modules with Backlight whi
Module Width
  • 122 mm
Module Height
  • 44 mm
Module Thickeness
  • 13.6 mm

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -30 °C
Storage Temperature Max.
  • 80 °C

Electrical properties

(Uf) Forward Voltage
  • 4 V
Characters
  • 16x2
(If) Forward Current
  • 60 mA
Backlight Type
  • LED
Display Controller
  • ST7066U-0A
Display Interface
  • 4-Bit-MCU
  • 8-Bit-MCU
Active Area Heigth
  • 24 mm
Active Area Width
  • 99 mm
Supply Voltage Min.
  • 4.7 V
Backlight Colour
  • white
Supply Voltage Max.
  • 5.3 V
Light Intensity
  • 210 mcd
Backlight Brightness
  • 88 cd/m2
Character Heigth
  • 9.55 mm
Character Width
  • 5.2 mm
Character Set
  • English
  • Japanese
Character Colour
  • black

Other Products

All Products of the Series
DEM16215SBH-PW-N
Display Elektronik
LCD Module Dot Matrix 16x2 LED blue 88cd/m2
from 20,20 €
TOP

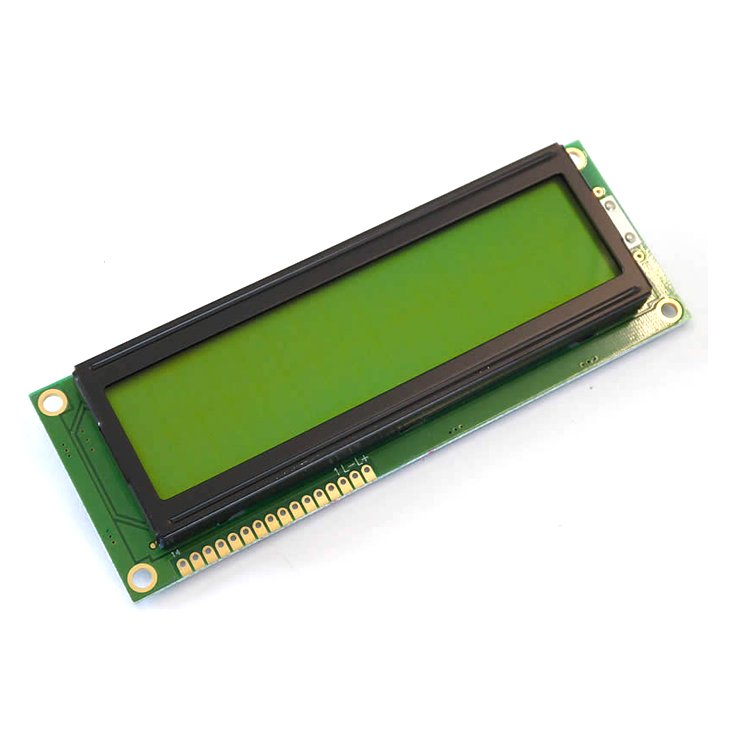

DEM16215SYH-LY
Display Elektronik
LCD Module Dot Matrix 16x2 LED yellow/green 180cd/m2
from 15,82 €

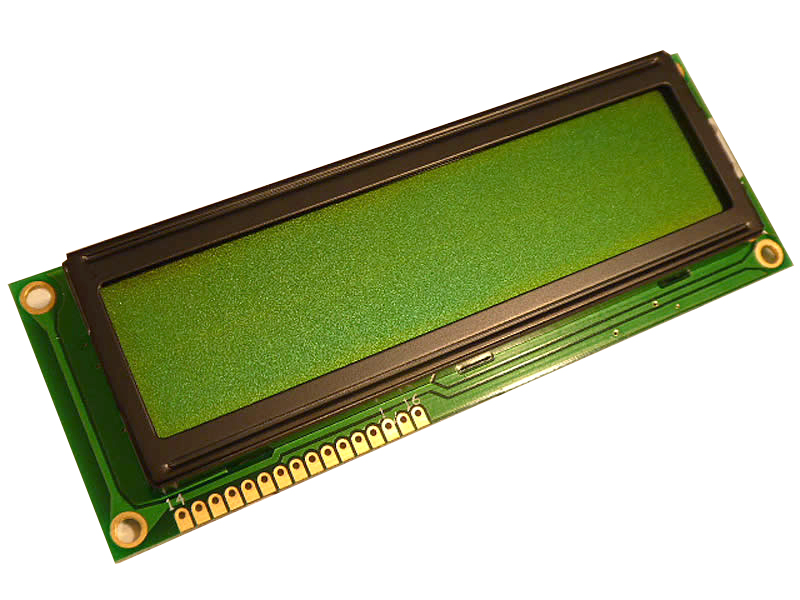

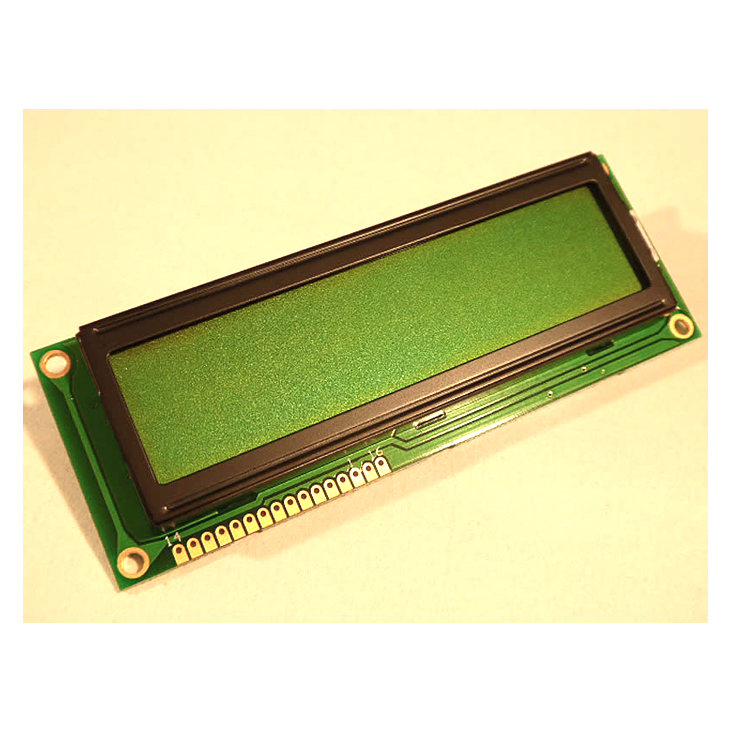

DEM16215SYH-LY-CYR22
