HomeProductsOptoelectronicsDisplaysLCD DisplaysLCD Displays, AlphanumericDEM16204DEM16204SBH-PW-N

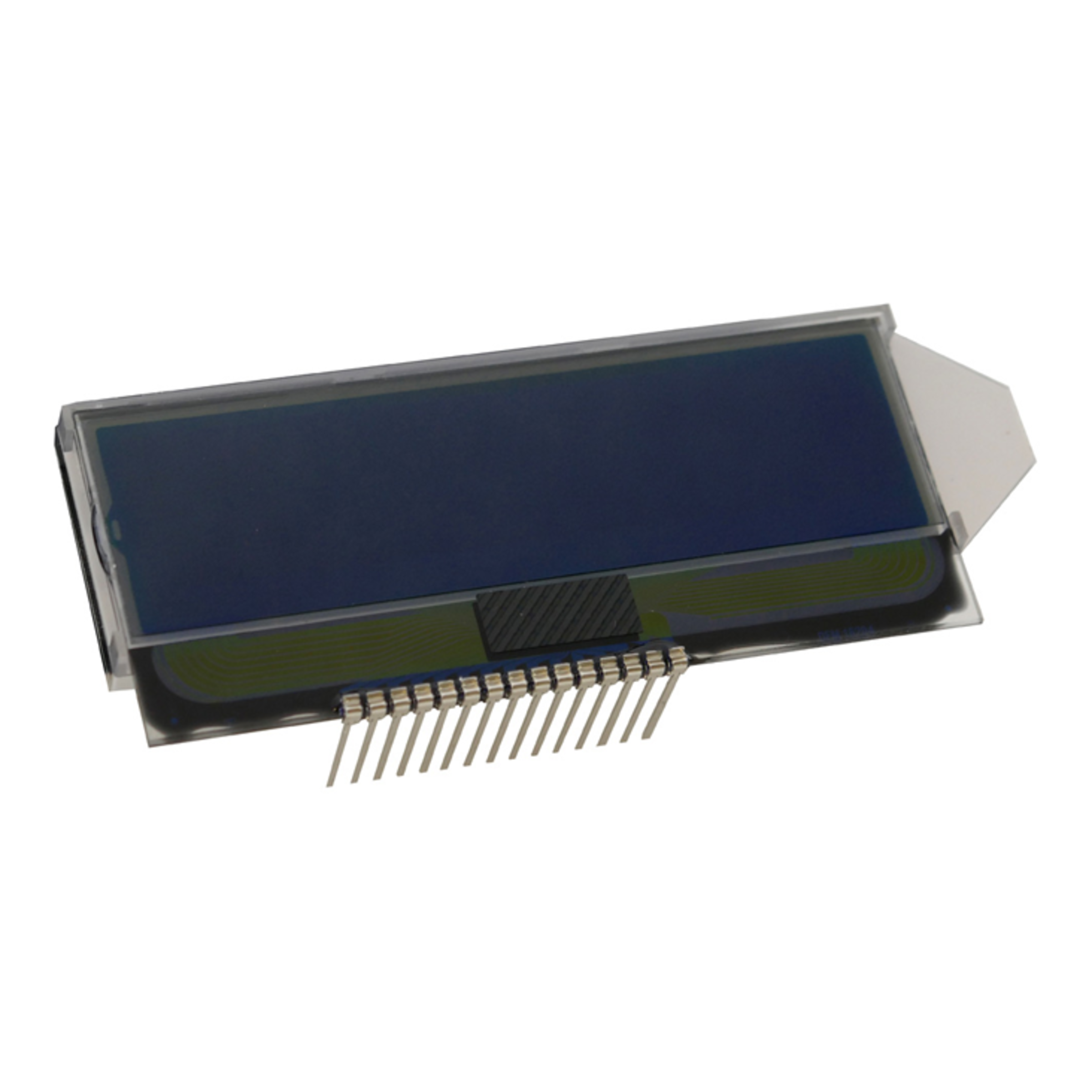

DEM16204SBH-PW-N

Display Elektronik LCD Module Dot Matrix 16x2 LED white 190cd/m2

Manufacturer Part No.
DEM16204SBH-PW-N
Schukat Part No.
DEM16204SBH-PW-N
Manufacturer
Display Elektronik
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
243 Pcs.
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 243 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 243 or multiple of 243)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Supply Voltage Min.
4.7 V
Supply Voltage Max.
5.3 V
Characters
16x2
Backlight Type
LED
Backlight Colour
white
Active Area Heigth
15.7 mm
Active Area Width
61 mm
Character Heigth
5.15 mm
Character Width
2.95 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Display Elektronik
Type
  • LCD Module
Kind
  • Dot Matrix
Series
  • DEM16204
Module Width
  • 76 mm
Module Height
  • 28.7 mm
Module Thickeness
  • 6 mm

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -30 °C
Storage Temperature Max.
  • 80 °C

Electrical properties

(Uf) Forward Voltage
  • 3.1 V
Characters
  • 16x2
(If) Forward Current
  • 15 mA
Backlight Type
  • LED
Display Controller
  • UCI7032C
Active Area Heigth
  • 15.7 mm
Active Area Width
  • 61 mm
Supply Voltage Min.
  • 4.7 V
Backlight Colour
  • white
Supply Voltage Max.
  • 5.3 V
Backlight Brightness
  • 190 cd/m2
Expected Lifetime
  • 30,000 h
Character Heigth
  • 5.15 mm
Character Width
  • 2.95 mm
Character Set
  • English
  • Japanese

Other Products

All Products of the Series

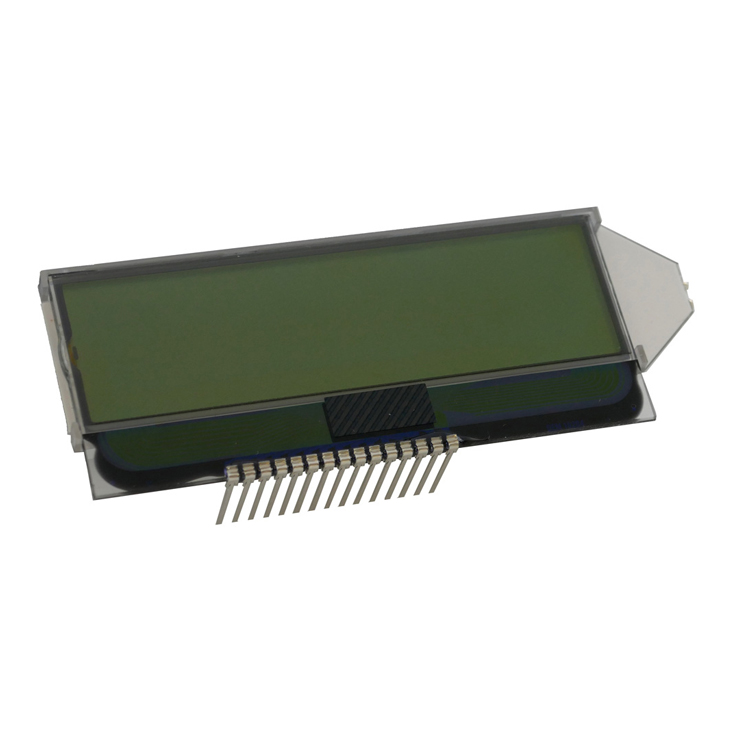

DEM16204FGH-PW
