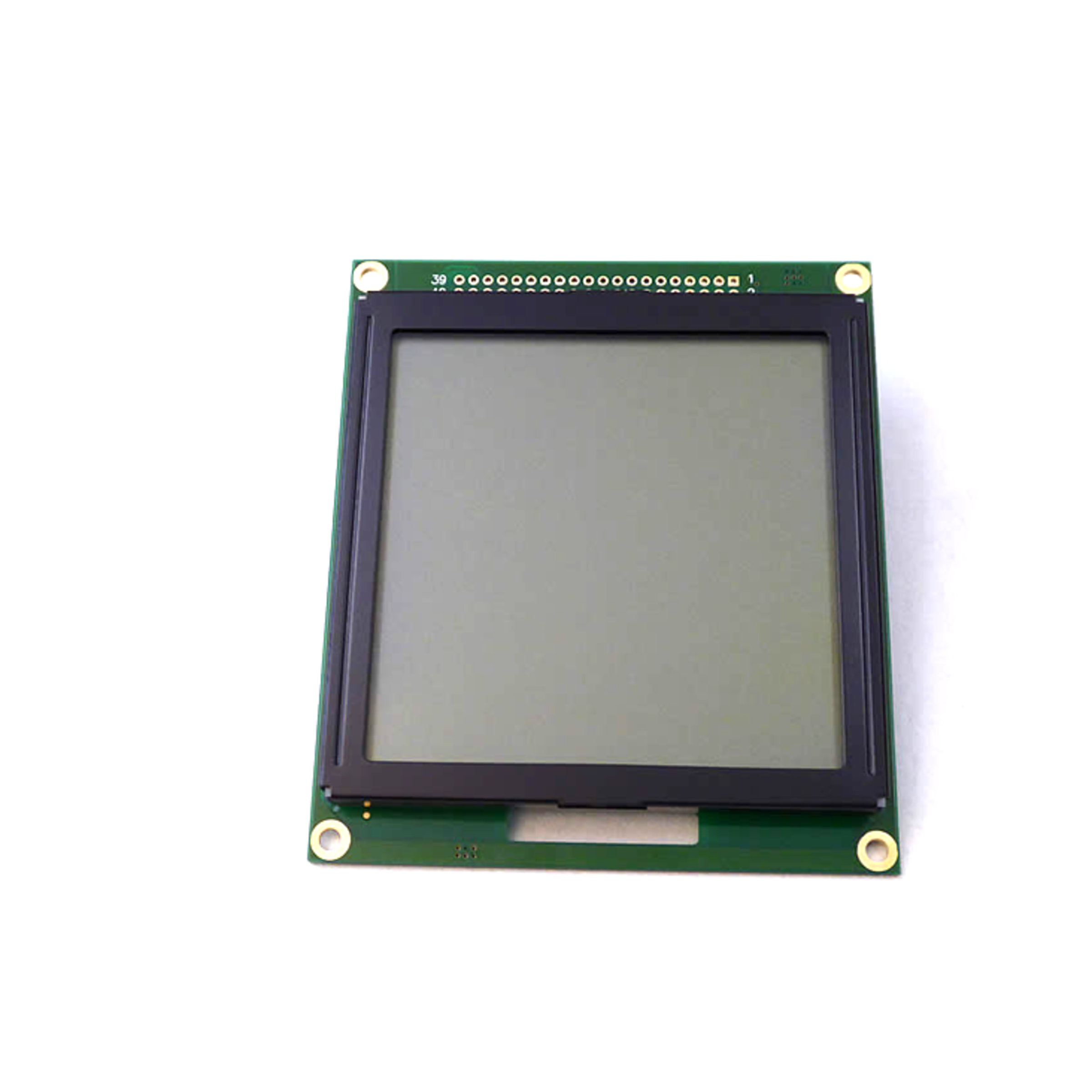

DEM128128B1FGH-PW
Display Elektronik LCD Graphic Module FSTN 128x128 LED white
TOP
Manufacturer Part No.
DEM128128B1FGH-PW
Schukat Part No.
DEM128128B1FGH-PW
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 08.11.2023
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 36 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
Electrical properties
- Backlight Type
- LED
- Display Interface
- 8-Bit-MCU
- Resolution (Pixel)
- 128x128
- Touch Panel
- No Touch
- Screen Diagonal
- 3.9 ''
- Display-Technology
- FSTN
- Supply Voltage Min.
- 4.7 V
- Backlight Colour
- white
- Supply Voltage Max.
- 5.3 V
- Pixel Width
- 0.5 mm
- Pixel Heigth
- 0.5 mm
