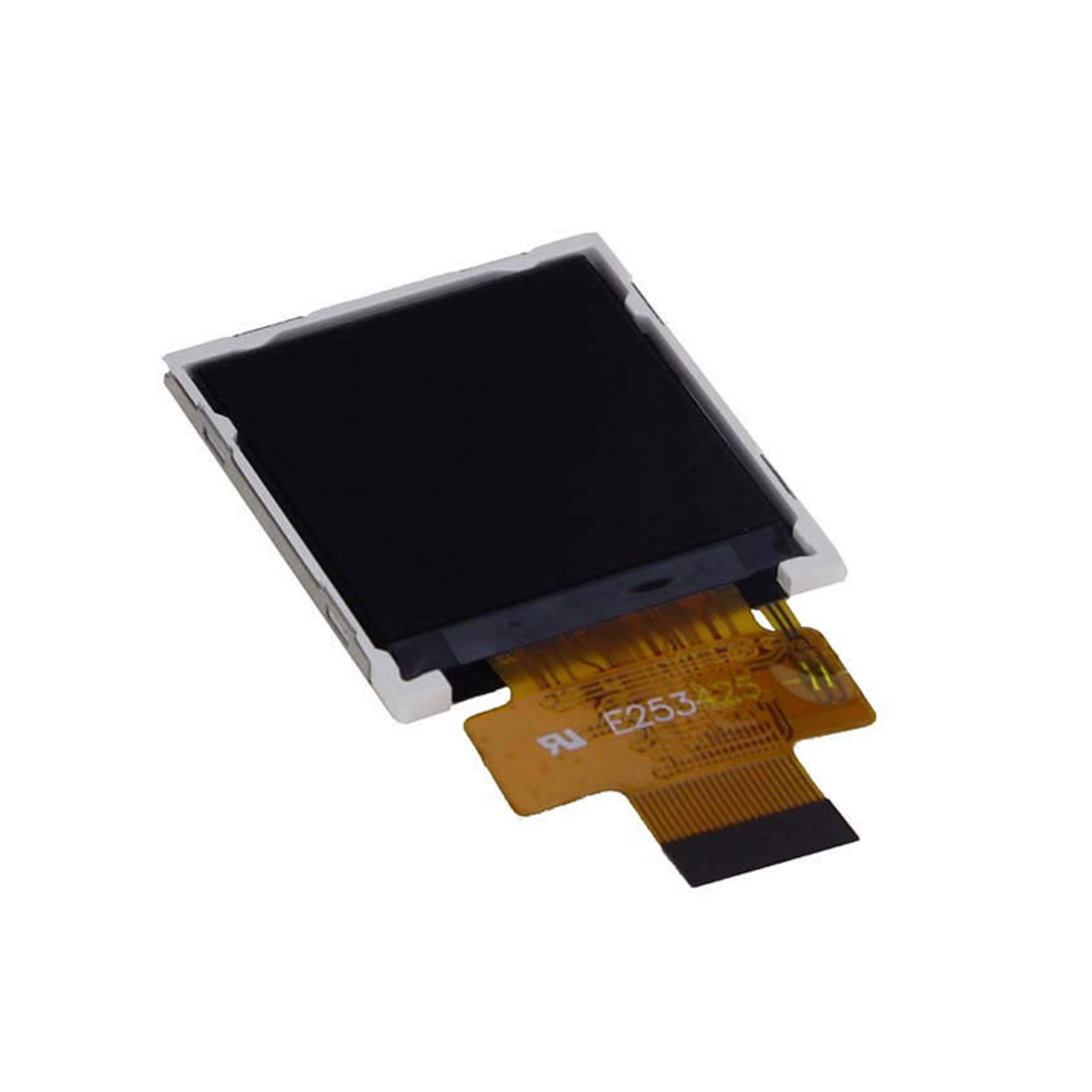

DEM128128A1TMH-PW-N
Display Elektronik LCD Graphic Module TFT 128x128 LED white 540cd/m2
Manufacturer Part No.
DEM128128A1TMH-PW-N
Schukat Part No.
DEM128128A1TMH-PWN
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
172 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 15.10.2025
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 392 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Touch Panel
- No Touch
- Resolution (Pixel)
- 128x128
- Display Interface
- 8-Bit-MCU
SPI - Supply Voltage Min.
- 2.5 V
- Supply Voltage Max.
- 4.8 V
- Backlight Type
- LED
- Backlight Colour
- white
- Backlight Brightness
- 540 cd/m2
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
Electrical Properties
- Backlight Type
- LED
- Display Interface
- 8-Bit-MCU
- SPI
- Resolution (Pixel)
- 128x128
- Touch Panel
- No Touch
- Screen Diagonal
- 1.4 ''
- Display-Technology
- TFT
- Supply Voltage Min.
- 2.5 V
- Backlight Colour
- white
- Supply Voltage Max.
- 4.8 V
- Backlight Brightness
- 540 cd/m2
- Pixel Width
- 0.192 mm
- Pixel Heigth
- 2.7 mm
Documents
EOL_DEM128128A1TMH-PW-N_EN.pdf
