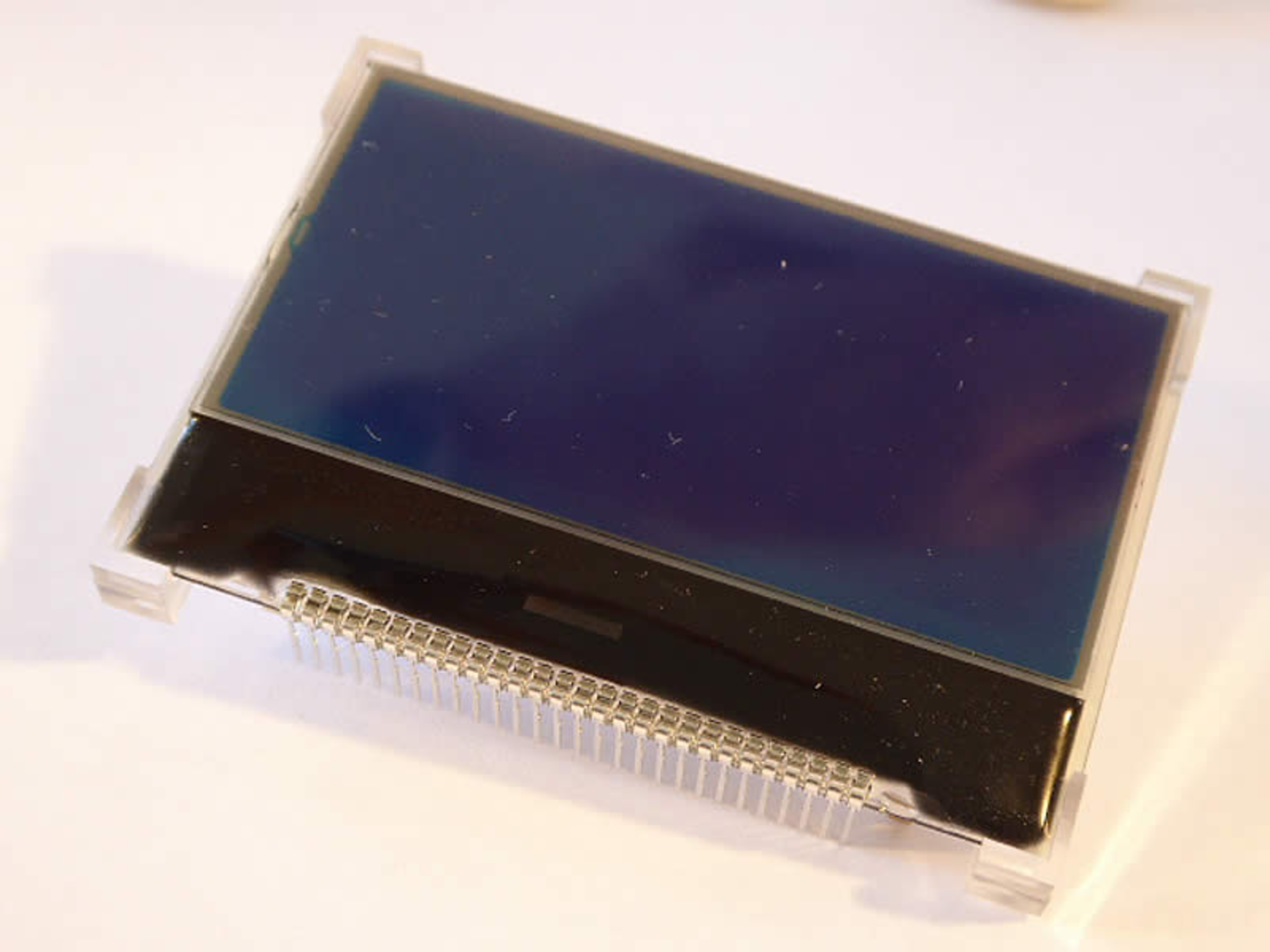

DEM128064O1SBH-PW-N
Display Elektronik LCD Graphic Module STN 128 x 64 LED white
Manufacturer Part No.
DEM128064O1SBH-PW-N
Schukat Part No.
DEM128064O1SBH-PWN
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
118 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 140 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Touch Panel
- No Touch
- Resolution (Pixel)
- 128 x 64
- Display Interface
- 8-Bit-MCU
SPI - Supply Voltage Min.
- 2.7 V
- Supply Voltage Max.
- 3.3 V
- Backlight Type
- LED
- Backlight Colour
- white
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature, min. (TA)
- -20 °C
- Operating Temperature, max. (TA)
- 70 °C
- Storage Temperature Min.
- -30 °C
- Storage Temperature Max.
- 80 °C
Electrical Properties
- Backlight Type
- LED
- Display Interface
- 8-Bit-MCU
- SPI
- Resolution (Pixel)
- 128 x 64
- Touch Panel
- No Touch
- Screen Diagonal
- 2 ''
- Display-Technology
- STN
- Supply Voltage Min.
- 2.7 V
- Backlight Colour
- white
- Supply Voltage Max.
- 3.3 V
- Pixel Width
- 0.34 mm
- Pixel Heigth
- 0.34 mm
