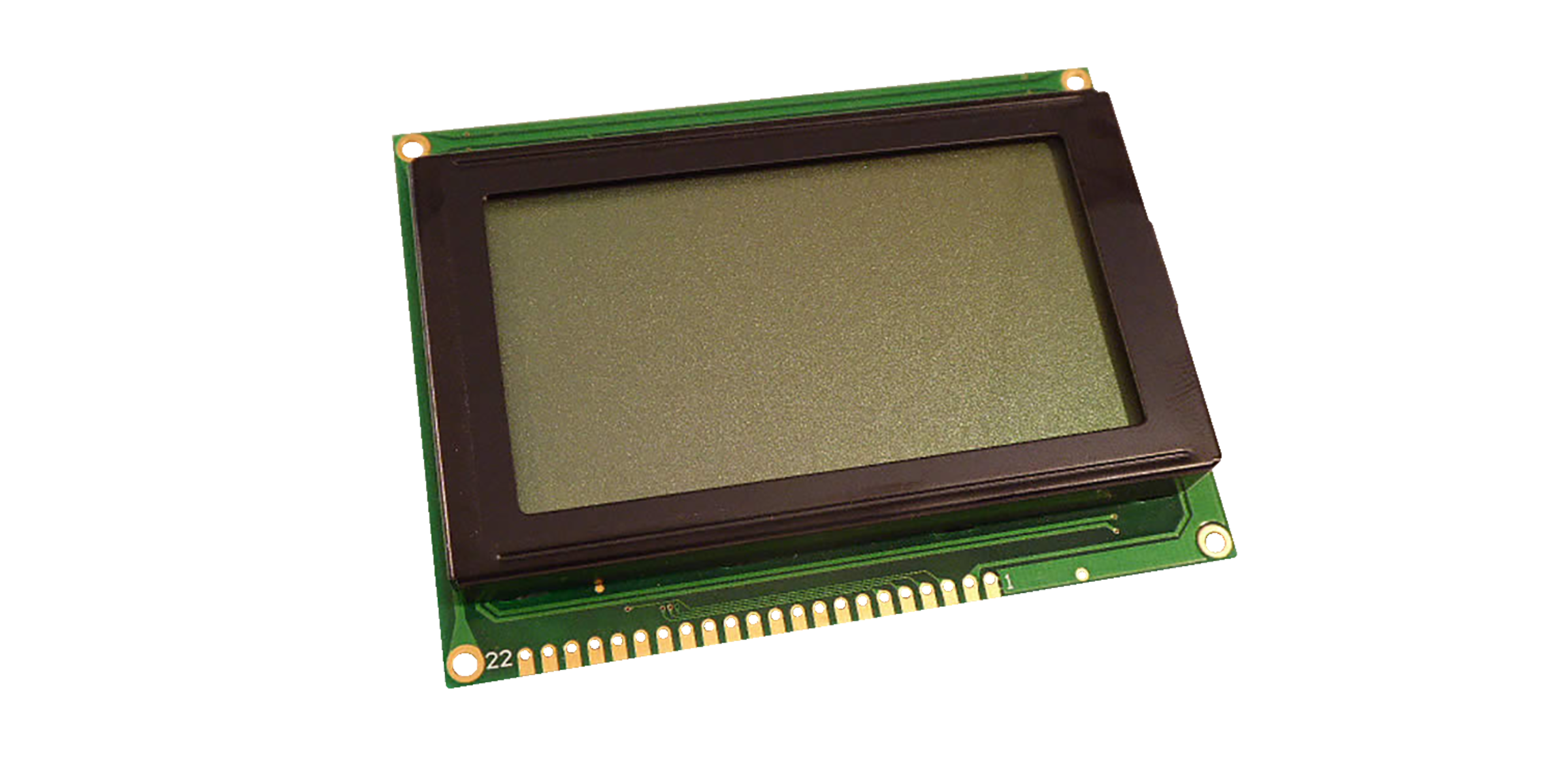

DEM128064AFGH-P(RGB)

Display Elektronik LCD Graphic Module FSTN 128x64 LED RGB

TOP
Manufacturer Part No.
DEM128064AFGH-P(RGB)
Schukat Part No.
DEM128064AFGH-PRGB
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

168 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 60 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Display Elektronik
Type
  • LCD Graphic Module
Series
  • DEM_-PRGB
Product group
  • W6236 display elektronik LCD-Graphics-Modules FSTN monochrome RGB
Module Width
  • 93 mm
Module Height
  • 70 mm
Module Thickeness
  • 13.5 mm

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 70 °C

Electrical properties

Backlight Type
  • LED
Display Interface
  • 8-Bit-MCU
Resolution (Pixel)
  • 128x64
Touch Panel
  • No Touch
Screen Diagonal
  • 2.9 ''
Display-Technology
  • FSTN
Supply Voltage Min.
  • 2.4 V
Backlight Colour
  • RGB
Supply Voltage Max.
  • 7 V
Pixel Width
  • 0.48 mm
Pixel Heigth
  • 0.48 mm
