DEM 640480G VRH

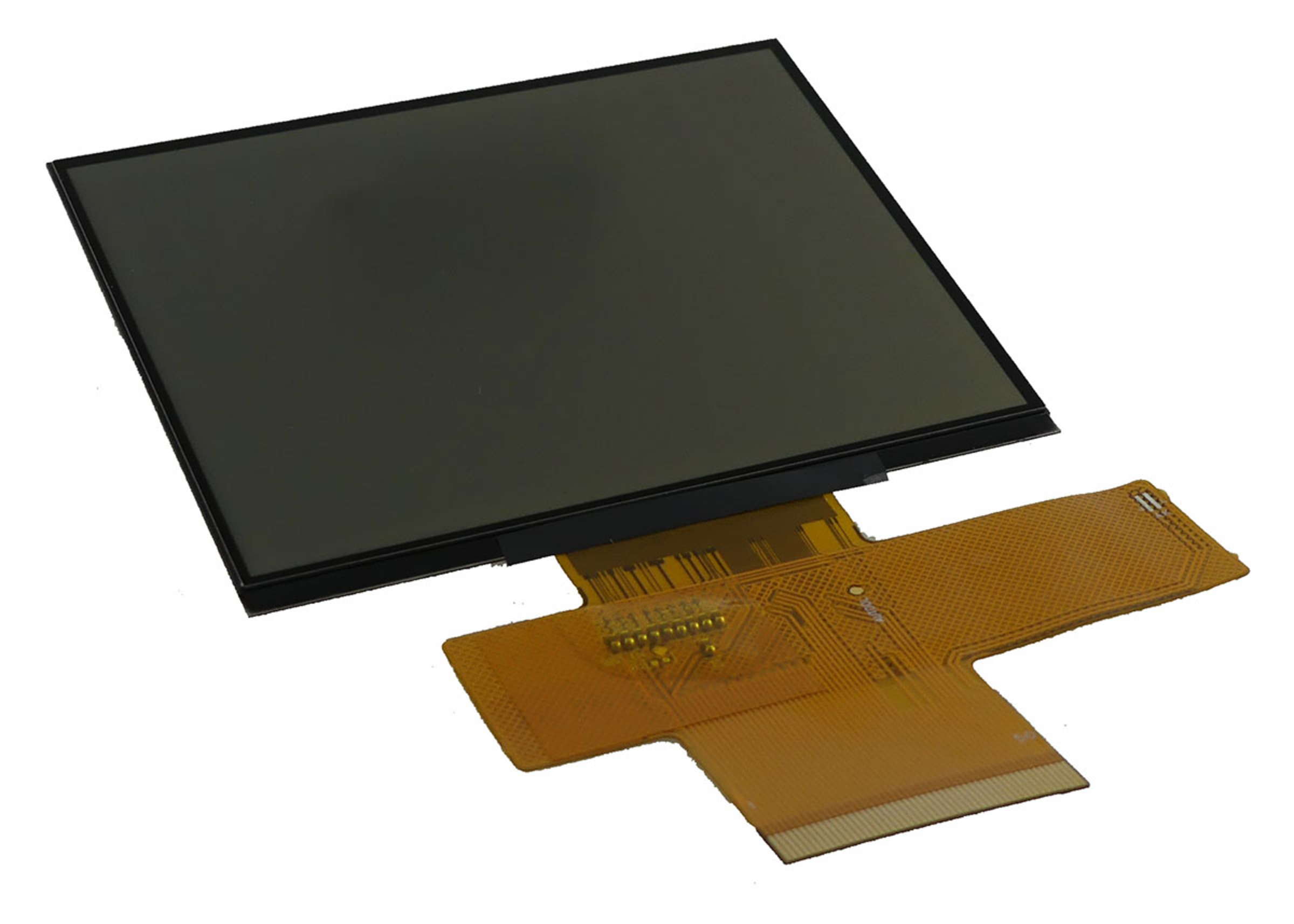

Display Elektronik LCD Graphic Module TFT 640x480 No Backlight
NEW
Manufacturer Part No.
DEM 640480G VRH
Schukat Part No.
DEM640480GVRH
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 14.04.2026
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 112 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Touch Panel
- No Touch
- Resolution (Pixel)
- 640x480
- Display Interface
- 18-Bit-RGB
24-Bit-RGB - Supply Voltage Min.
- 3.1 V
- Supply Voltage Max.
- 3.6 V
- Backlight Type
- No Backlight
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -30 °C
- Storage Temperature Max.
- 80 °C
Electrical Properties
- Backlight Type
- No Backlight
- Display Interface
- 18-Bit-RGB
- 24-Bit-RGB
- Resolution (Pixel)
- 640x480
- Touch Panel
- No Touch
- Screen Diagonal
- 3.5 ''
- Display-Technology
- TFT
- Supply Voltage Min.
- 3.1 V
- Supply Voltage Max.
- 3.6 V
- Pixel Width
- 0.111 mm
- Pixel Heigth
- 0.111 mm
